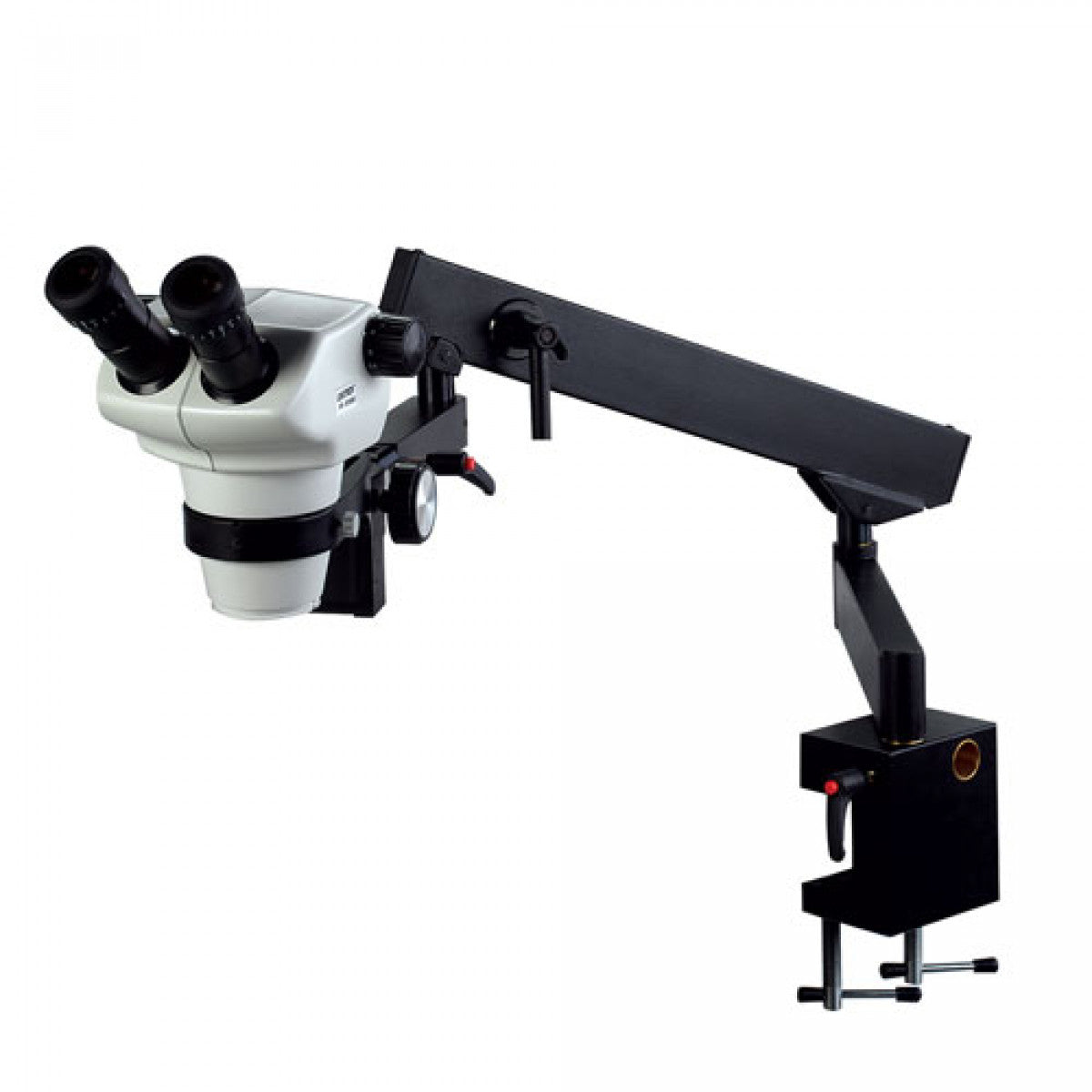

Unitron Z850 Zoom Stereo Microscope On Articulating Arm (Flex-Arm) Stand

The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range. The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage. Specifications Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle Fixed glass lens shield Widefield 10x/22mm focusing eyepieces 0.8x – 5.0x zoom magnification range 6.3:1 Zoom ratio Magnification range 8x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x Interpupillary Distance Adjustment 52mm – 75mm Field of view 27.5mm - 4.4mm 115mm working distance Articulating Arm with lockable 14.5” vertical motion range and 3’ scannable range Horizontal or vertical c-clamp mount Bonder Arm (E-Arm) Airtight and anti-mold design Note: Excelis™ HDS and Excelis HDS Lit
