BougeRV Solar Y Connector Solar Panel Parallel Connectors Extra Long 6 to 1 Cable

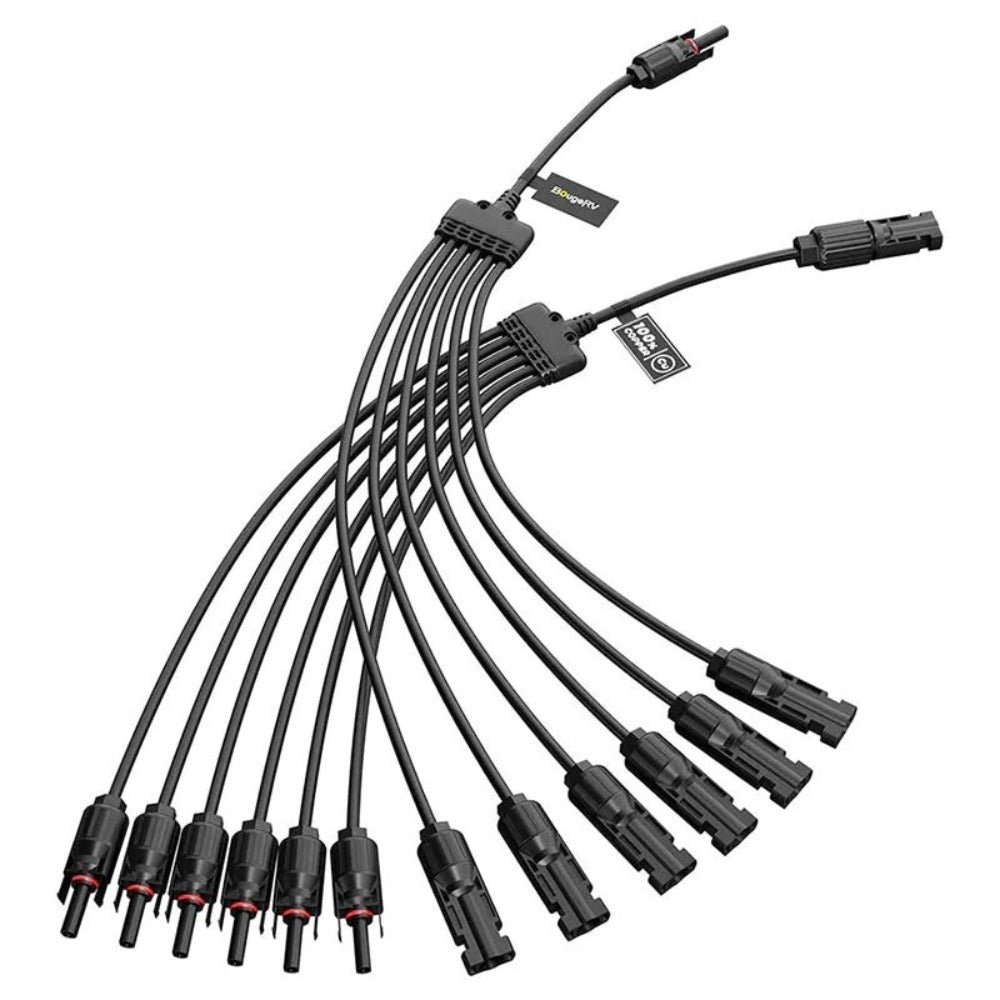

BougeRV Solar Y Connector Solar Panel Parallel Connectors Extra Long 6 to 1 Cable Overview BougeRV offers a 6 to 1 MC4 Connector that simplifies the wiring process and allows you to efficiently link multiple panels together. With its 6 to 1 configuration, it enables you to connect up to six solar panels to a single output, reducing the number of cables and connections required. The reliable and secure connection offered by BougeRV's MC4 Connector not only enhances the efficiency of the solar panels but also contributes to the overall safety and durability of the system. BougeRV Solar Y Connector Solar Panel Parallel Connectors Extra Long 6 to 1 Cable Features The waterproof ring on connection is perfect to seal out water and dust to prevent corrosion. Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument. BougeRV Solar Y Connector Solar Panel Parallel Connectors Extra Long 6 to 1 Cable Specification Rated Current (Main Line): 55A Rated Current (Branch Line): 30A Contact Resistance: ≤5mΩ Operating Temperature range: -40℉ until+221℉ Flame Class: UL94-V0 Rated Voltage (Main Line): DC 1500V Rated Voltage (Branch Line): DC1000V Suitable Single Core Cable Section: 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 ) Insulation Resistance: >500mΩ Degree of Protection: IP67 Safety Degree: Ⅱ What's in The Box 2 x Solar Y Connector Solar Panel Parallel Connectors Extra Long 6 to 1 Cable
