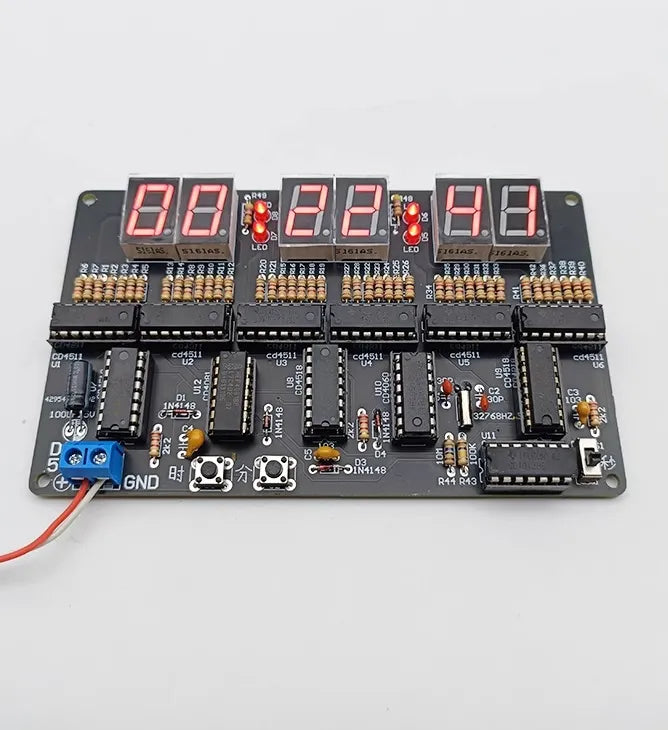

DC 4.5V-5.5V 6-bit digital circuit clock kit, electronic clock teaching and practical training, welding and DIY parts production
Overview This product is a 24-hour digital circuit clock, using CD4518, CD4511, CD4081, CD4013, CD4060 and other chips, the circuit does not contain a microcontroller, so there is no program, hours, minutes and seconds can be calibrated, without alarm function. This kit mainly consists of a second signal generator, counter, decoding display and time calibration circuit. The second pulse is a 1HZ square wave signal obtained by precise frequency division of a high frequency signal generator, which is more accurate in timekeeping. The second signal generator consists of CD4060 and CD4013, which generates a square wave signal with a frequency of 1HZ. CD4060 is a 14-level binary frequency divider/oscillator. It consists of a 32768HZ oscillator with external resistors R44, R43, C1, C2 and Y1. After 14 levels of binary frequency divider, the frequency of 2HZ square wave signal is obtained at pin 3. CD4013 contains two independent D flip-flops, take one of the flip-flops through the line co
