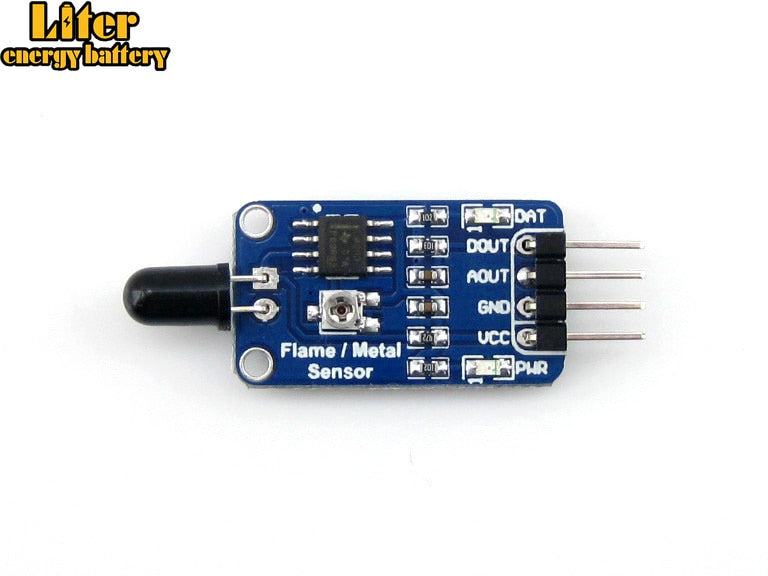

Fire Flame Sensor Module IR Infrared Flame Detection Sensor Module Flame for STM32 Raspberry pi

  Flame Sensor Overview Sensitive to flame spectrum Features wide range voltage comparator LM393 Adjustable sensitivity Signal output indicator Specifications Spectrum range: 760nm ~ 1100nm Detection angle: 0 - 60 degree Power: 3.3V ~ 5.3V Operating temperature: -25 degrees Celsius ~ 85 degrees Celsius Dimension: 29.2mm * 11.2mm Mounting holes size: 2.0mm Applications Fire detection Fire fighting robot Fire alarm How to Use In the case of working with a MCU: VCC ↔ 3.3V ~ 5.3V GND ↔ power supply ground AOUT ↔ MCU.IO (analog output) DOUT ↔ MCU.IO (digital output) Note: the Flame Sensor is used for detecting fire without any fire-protection for itself, please keep distance from the fire to avoid damage. Photos     Package Contains Flame Sensor × 1 4-pin custom connector jumper wire × 1   For large quantity please feel free to contact us for quotation!     window.adminAccountId=223317896;
