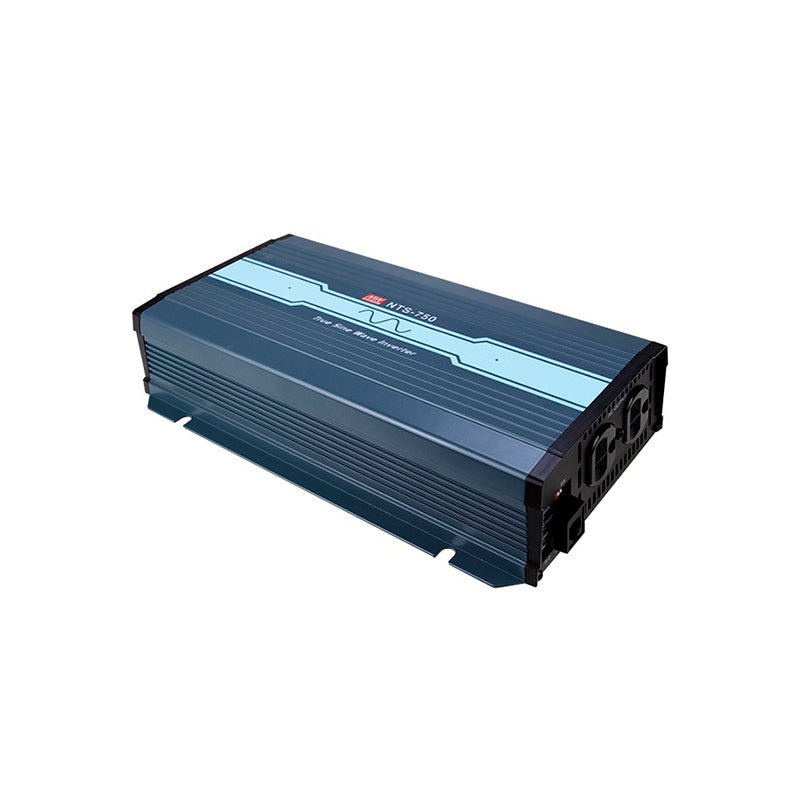

Mean Well NTS-750-248US True Sine Wave DC-AC Inverter 750W 110V out 48V in with US Socket
powersupplymall.com
Electronics / Components

Mean Well NTS-750-248US True Sine Wave DC-AC Inverter 750W 110V out 48V in with US Socket

$225.78
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

powersupplymall.com

View Store

Features Compact size and lightweight True sine wave output (THD<3%) High surge power up to 1500W Temperature-controlled cooling fan AC output voltage and frequency selectable by DIP S.W No load disspation < 1.5W max. at standby saving mode -25℃~+70℃ wide operating temperature Power ON-OFF remote control Front panel indicator for operation status Protections: Short circuit / Overload / Over voltage Battery over-discharge protection(Low voltage disconnect) Suitable for lead-acid or li-ion batteries Remote controller (IRC1, IRC2, IRC3 accessory sold separately Carry handle accessory available(Order NO.: DS-Carry handle, sold separately Conformal coating 3 years warranty General Specification AC output voltage range 100/110/115/120VAC;200/220/230/240VAC selectable by DIP S.W AC output waveform True sine wave, THD<3.0% Overload temperature Shut down o/p voltage, re-power on to recover(except 112/124GFCI); Shut down o/p voltage,recovers automatically after temperature goes down(for 112/124GFCI) Overload 105~115% load for 180s, 115~150% load for 10s Withstand voltage DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC Working temperature -25~+70°C (refer to output derating curve ) Safety standards CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004 approved;Design refer to AS/NZS 62368.1 EMC standards EN55032 class A, BS En/EN61000-4-2,3,8 Dimension (LxWxH) 270x158x67mm Packing 4pcs / 10.2Kg

Show More Show Less
