VBOXPro_ 10Hz GPS, with VCI, 2 Camera

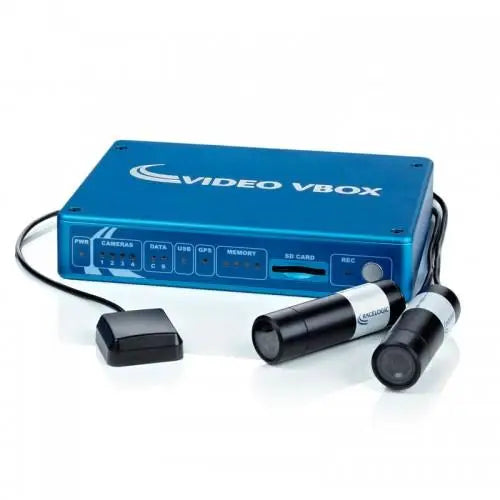

VBOX Video Pro 10Hz GPS Data logger with VCI, 2 Camera (NTSC) System Video VBOX Pro is a high-end in-car video system aimed primarily at motorsport professionals and driving schools. Video VBOX Pro is housed in an aluminium enclosure. It combines a 10Hz VBOX GPS data logger with a 4 camera video system. Package Contents: Video VBOX Pro 10Hz GPS Data Logger and Video Recorder with Graphic Overlay and 8 CAN channel logging Two Sony HQ1 Super HAD ExView 550/580L NTSC cameras Two camera mounts with windscreen suction cups Forward facing camera ring GPS antenna Two microphones One microphone splitter cable In-car power supply Mains power supply 4GB SD card containing software and user guide USB cable for connection to PC Large Video VBOX carry case Optional (please choose): 2 cameras and 32 CAN channel logging 4 cameras and 32 CAN channel logging VBOX Video Pro 10Hz GPS Data logger with VCI, 2 Camera (NTSC) System product link. Specifications GPS Specification Update Rate 10Hz Velocity Accuracy 0.1 Km/h (averaged over 4 samples) Acceleration Accuracy 1 % Distance Accuracy 0.05 % (<50cm per Km) Lap Timing Accuracy 0.01° s (with OLED Display/ Circuit Tools) Technical Graphics 24bit colour plus 256 levels of alpha transparency Storage Options SD card (Fast SD card required) Environmental & Physical Dimensions 170mm x 122mm x 33mm Weight 700g Input Voltage 9 – 15 V Downloads VBOX Video Pro datasheet
