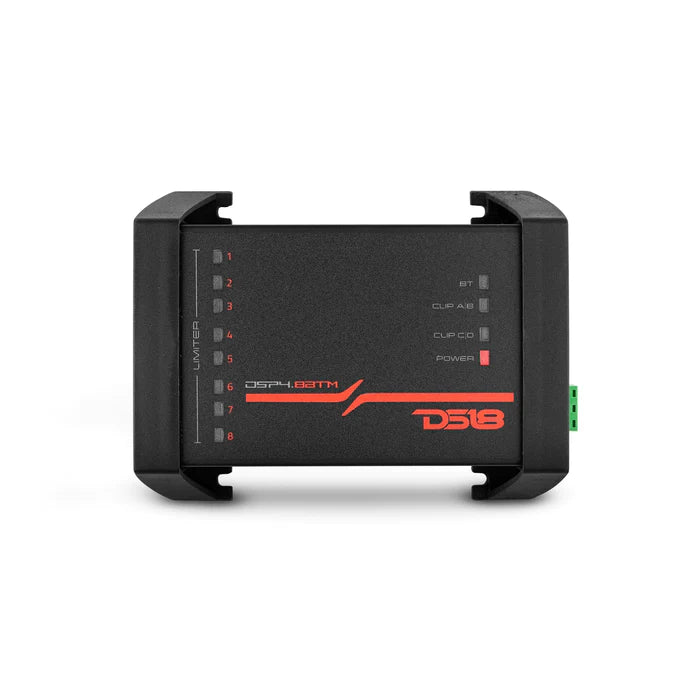

DS18 4-Channel In and 8-Channel Out Digital Sound Processor (DSP) with Bluetooth
Digital Sound Processor 4 Channel In 8 Channel Out Bluetooth Connectivity Via App IOS and Android Compatible Coated PCB TECHNICAL DATA SPECS Routing OptionsA / B / C / D / A+B / A+C / B+CGAINGainGeneral Gain-53 to 0dBChannel Gain-33 to +9dBCutoff Frequency20Hz to 20KHzTypes of CutsLinkwitz-Riley / Butterworth / BesselAttenuations6 / 12 / 18 / 24 / 36 / 48dB/OCTPolarity Inversion Phase0 or 180ºMemories3 - 100% ConfigurablePower Supply Voltage DC10~15VDCMaximum Consumption300mAInput Equalization Bands15 BandsGain-12 to +12dB CHANNEL EQUALIZER (EQ CHANNEL) Equalization Bands8 Parametric per ChannelGain-12 to +12dBQ Factor0.6 to 9.9 TIME ALIGNMENT (DELAY) / LIMITER Time0 to 18.95msDistance0 to 6500mmThreshold-54 to +6dBAttack1 to 200msRelease1 to 988ms INPUT A/B/C/D Input Channels4TypeElectronically SymmetricalConnectorsRCAMax Input Level4.00Vrms (+14dBu)Input Impedance100K ΩOutput Channels8ConnectorsRCATypeElectronically SymmetricalMax Input Level3.50Vrms (+13dBu)Output Impedance100 Ω DSP Frequency Response10Hz to 24KHz (-1dB)THD+N<0.01%Signal Latency<0.6msBit Rate32BitsSampling Frequency96KHz DIMENSION / SHIPPING INFO Length x Depth x Height5.6" x 4.25" x 1.6"Weight277g / 9.7OzDimensions Single Box L x W x H (Inches)6.25 x 4.75 x 2.25Weight (lb)1M/C Dimension L x W x H (Inches)21.25 x 13.75 x 11M/C Weight (lb)30M/C Qty36 Pcs PRODUCT OVERVIEW DS18 DSP4.8BTM 4-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth DS18 proudly presents the DSP4.8BTM: a 4-channel in and 8-channel out digital sound processor designed to revolutionize your car’s audio.At DS18, we understand that true audiophiles seek control – absolute dominion over every aspect of their soundstage. The DSP4.8BTM is your key to unlocking that control, putting the immense power of your audio system at your fingertips.Creating the perfect audio system has never been easier, thanks to the DSP4.8BTM's intuitive features. Our BT Interface grants you direct access to an extensive list of filtration settings, ensuring that your sound is tailored precisely to your preferences. Our dedicated DSP4.8BTM Application, available on both the App Store and Google Play, dares you to fine-tune and monitor every aspect of your signal processing. Effortlessly save presets for specific songs or genres, creating the ideal listening experience every time.The DS18 DSP4.8BTM takes audio tuning to an entirely new level with its Precision Parametric Equalizer. This advanced feature grants you the power to sculpt your sound with surgical precision. With 8 independent bands per channel, you have unparalleled control over the frequencies, allowing you to fine-tune every aspect of your audio reproduction.The DS18 DSP4.8BTM introduces you to a world of limitless sonic possibilities with its Dynamic Crossover Filters. Featuring Butterworth, Linkwitz-Riley, and Bessel filters, this exceptional digital sound processor allows you to tailor the audio spectrum with unparalleled accuracy. Prepare to be immersed in a world of sonic bliss, where every note is precisely crafted, and every detail is faithfully reproduced.
