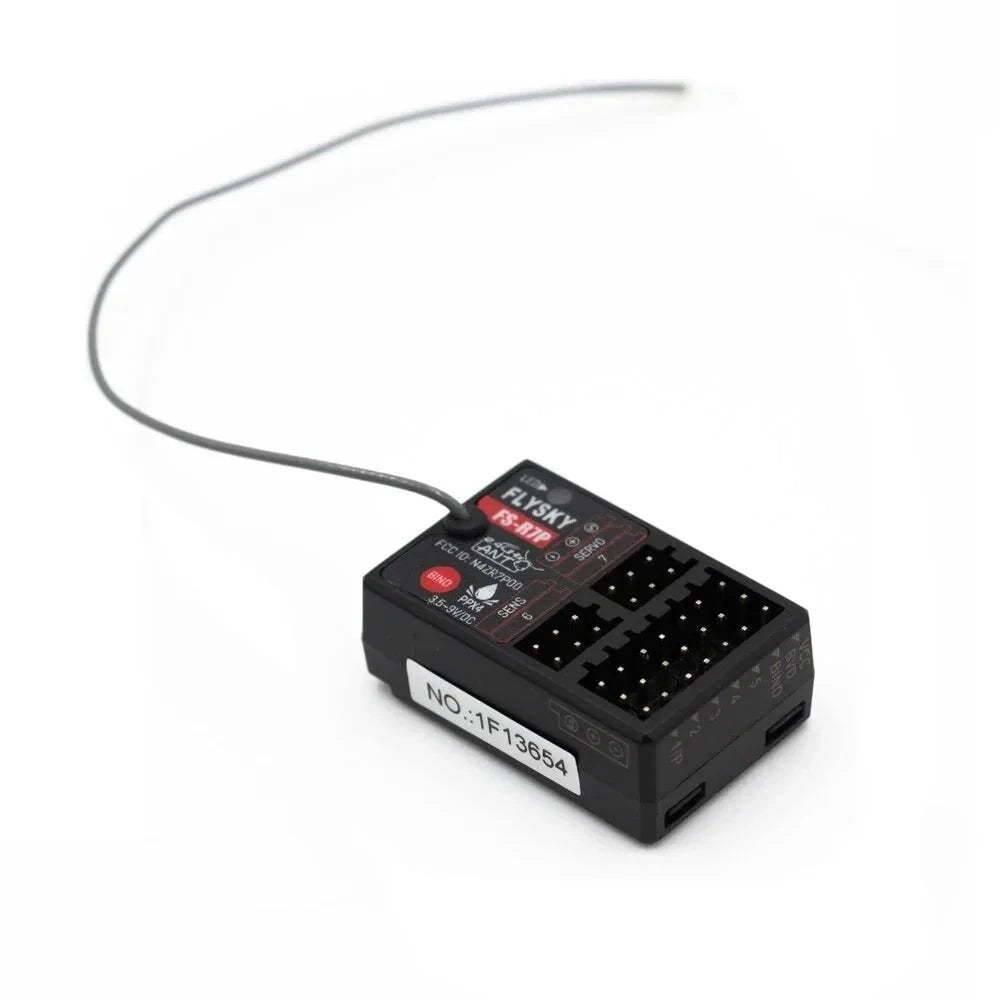

FLYSKY FS-R7P 2.4G 7CH Receiver - ANT Protocol Radio PWM PPM I-BUS SBUS Output for FS-G4P FS-G7P RC Car Boat

FLYSKY FS-R7P 2.4G 7CH Receiver SPECIFICATIONS Brand Name: QYWWRC Origin: Mainland China Material: Composite Material RC Parts & Accs: Transmitters Size: 136.4*111.8*197.5mm For Vehicle Type: Cars Use: Vehicles & Remote Control Toys Upgrade Parts/Accessories: Lithium Battery Remote Control Peripherals/Devices: Remote Controller Tool Supplies: Battery Quantity: 1 pcs Technical parameters: Value 2 Model Number: FS-G7P Four-wheel Drive Attributes: Assemblage Wheelbase: Bottom Plate   FS-R7P RC Receiver: Model: FS-R7P PWM Channels: 7 RF: 2.4GHz Protocol: ANT Range: >300M(Ground) Antenna: Single Antenna Input Power: 3.5-8.4V RSSI: Support Data Output: PWM Temperature Range: -10℃-+60℃ Humidity Limit: 20%-95% Waterproof Level:PPX4 Online Update: Yes Dimensions: 35*23.3*13.3mm Weight: 8g Certification: CE,FCC ID:2A2UNR7P00 Introduction to ANT Automatic Frequency Hopping Digital System ANT (ANT automatic frequency hopping digital system), developed by Flysky in 2020 with accumulating more than ten years of valuable development experiences, is a new system based on AFHDS 2A upgraded hardware platform using a new generation of highly integrated 2.4G chip. Through the RF advanced mode function, it is set with the number of RF transmission channels, resolution of each channel, distance, anti-interference, and transmission delay. With simple operations, the RF radio control system is created to meet user different demands. ANT characteristic advantages Bidirectional Real-time Data Transmission This system features two-way communications. That is, the receiver receives data from the transmitter, and the transmitter can also receive the sensor data from the receiver such as temperature and speed. Users can obtain the current working state of the model. This can make users more joyful in the control and models become more secure. It is also compatible with one-way communication. Intelligent Automatic RF Configuration According to the hardware characteristics, certification requirements, as well as the product’s requirements on the transmission data volume, anti-interference, delay, and distance, the system is intelligently adapted to the corresponding RF configurations to meet user requirements. Automatic Frequency Hopping The system operates at 2.4 GHz ISM band: According to the intelligentized demand of RF configuration, the co-channel interference is avoided actively through different RF configurations, different boot time, different frequency hopping rules, and use of different frequencies. Independent ID recognition system Each transmitter and receiver of this system has a unique ID. After the transmitter binds with the receiver, the ID is stored in the receiver. When the receiver works, it authenticates this ID first. If the authentication fails, the receiver will fail to work. This can enhance the active anti-interference ability of the system, thus improving the stability of the system. Highly Reliable System Design This system uses a highly integrated hardware solution. This can reduce electronic materials while also improving system stability, reliability and production consistency. Low Power Consumption The use of low power consumption, high sensitivity devices and interval data transmission operation can reduce the system power consumption as low as one-sixth of the FM version, thus extending the battery service life. [1] CHL/P [12] Code Key [2-5] CHZ-CHS [13] Code Interface [14] CH6 [7] BVDIVCC [15] Signal Terminal (Battery voltage detection power supply interface) [16] (Positive Electrode) [8] CH7 [17] (Negative Electrode).
