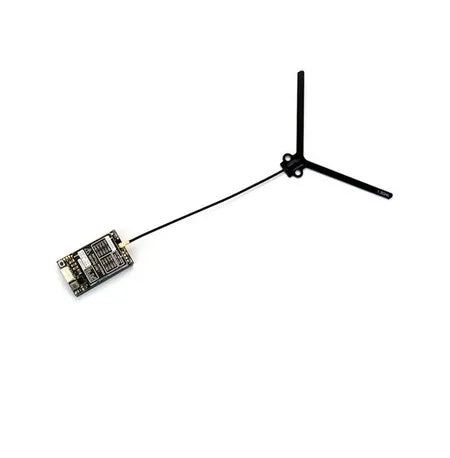

RushFPV 1.6W 1.3G VTX - 1.3GHZ 9CH 1600mW FPV Analog Video Transmitter Module
rcdrone.top

RushFPV 1.6W 1.3G VTX - 1.3GHZ 9CH 1600mW FPV Analog Video Transmitter Module

$12.74
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RCDrone

View Store

RushFPV 1.6W 1.3G VTX Transmitter Module SPECIFICATIONS Specification Details Video Input format CVBS PAL/NTSC Frequency band 1060-1380MHz Channel Frequency CH1-1080, CH2-1120, CH3-1160, CH4-1200, CH5-1240, CH6-1258, CH7-1280, CH8-1320, CH9-1360 Transmit Power 14dB (25mW), 32dB (1600mW) Input Voltage DC 7-36V (3-6S Lipo) Power Consumption 400mA (±20mA) @12V Operating Temp. -10°C - +60°C Dimension 36mm x 22mm x 7mm Weight 10g (VTX) Max Output 33.09dbm(2037mW) AVG Output 32.4dbm(1738mW) RushFPV 1.6W 1.3G VTX Details RushFPV 1.6W 1.3G VTX Features 1.3GHz band with excellent environmental adaptability Reliable mechanical switch for setting power and channel Stable 1600mW transmitting power Wide voltage input from 7-36V Supports IRC VTX control protocol Equipped with a lightweight antenna This 1.2GHz analog video transmitter module offers a range of features, including a reliable mechanical switch for setting power and channel, excellent environmental adaptability in the 1.3GHz band, stable transmitting power of 1600mW, and wide voltage input compatibility from 7-36V. It also supports the IRC VTX control protocol. Warning: Install antenna before use. Power level: AW1600. Channel settings: Ch1: 1080, Ch2: 1120, Ch3: 1258, Ch4: 1160, Ch5: (not specified), Ch6: 1200, Ch7: 1240, Ch8: 1280, Ch9: 1320. Press and hold 'CH' to change frequency.
