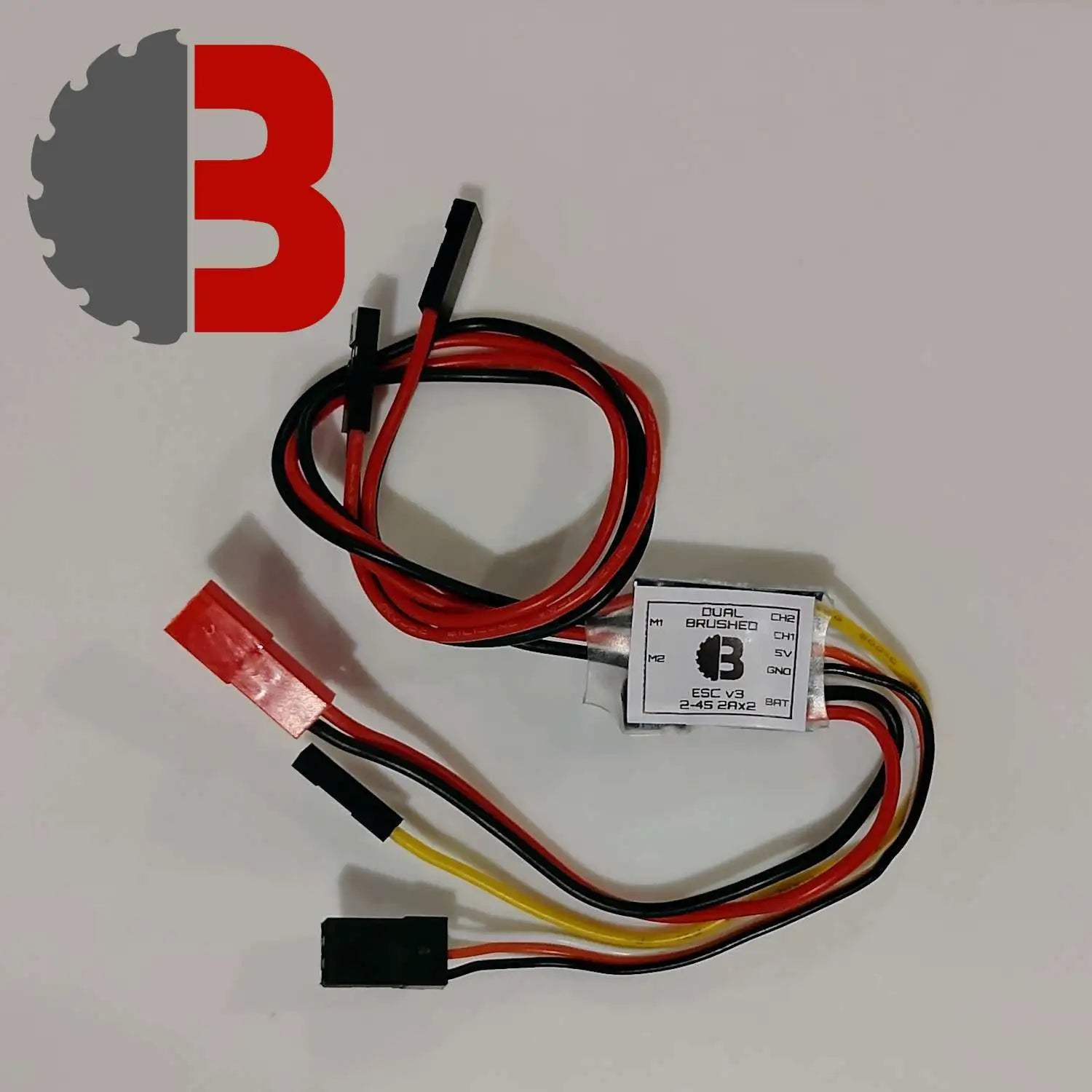

Bristol Bot Builders Antweight Dual ESC v3

BBB edition antweight dual brushed ESC – improving the driving experience and specs for ants! This version 3 is over 40% smaller and over a gram lighter (most of the weight is the wires still!) than v2, but with all the great specs! How to connect up & wire ESC below. Please read our Antweight Drive Kit Build Guide for step by step wiring guide. Custom firmware with center braking for greatly improved driving experience ESC actively brings motors to a stop when the sticks are centered for better control. 2A per side (4A peak) – Ideal for two or four N10s or N20s. 2-4S support input for higher voltage applications Weighs only ~7g including all pre-soldered connectors with the motor wires cut to length can save quite a lot of the weight by shortening wires, removing connectors & direct soldering to receiver Built in 5V 1A BEC for receiver and servos! Built in drive mixing, which can be disabled (see below) the only soldering required is to the motor terminals, otherwise it’s plug and play! (see below)
