Nano 328 Development Board Compatible with Arduino (Wih USB Cable)
shop.robotistan.com

Nano 328 Development Board Compatible with Arduino (Wih USB Cable)

$9.22
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Robotistan

View Store

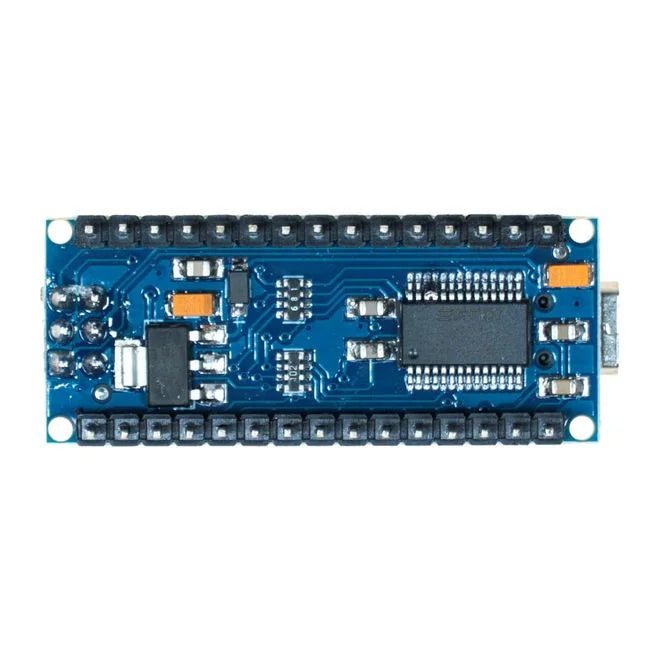

Arduino nano with usb cable Not CH340 Product content: Arduino Nano Mini-B Usb Cable The Arduino Nano is a microcontroller board based on the Atmega328. It has 14 digital I/O pins (6 of which are PWM outputs), 8 analog inputs, a 16Mhz crystal, a USB socket, an ICSP connector, and a reset button. On the board, you'll find everything you need to run the microcontroller. It is easily connected to a computer using a USB cable and can be powered by an adapter or a battery. Nano: It has FTDI FT232 usb-serial converter on it to load programs and make computer communication. Technicial Specifications: Microcontroller ATmega328 Operating Voltage 5V Input Voltage (recommended) 7-12V Input Voltage (limit) 6-20V Digital I/O Pins 14 (6 of them PWM outputs) Analog Input Pins 8 Current per I/O 40 mA Current for 3.3V Output 50 mA Flash Memory 32 KB (ATmega328) Up to 2 KB is used by the bootloader SRAM 2KB (ATmega328) EEPROM 1KB (ATmega328) Clock Speed 16MHz Length 45mm Width 18mm Weight 5g Powe
