STM32 Discovery STM32F407

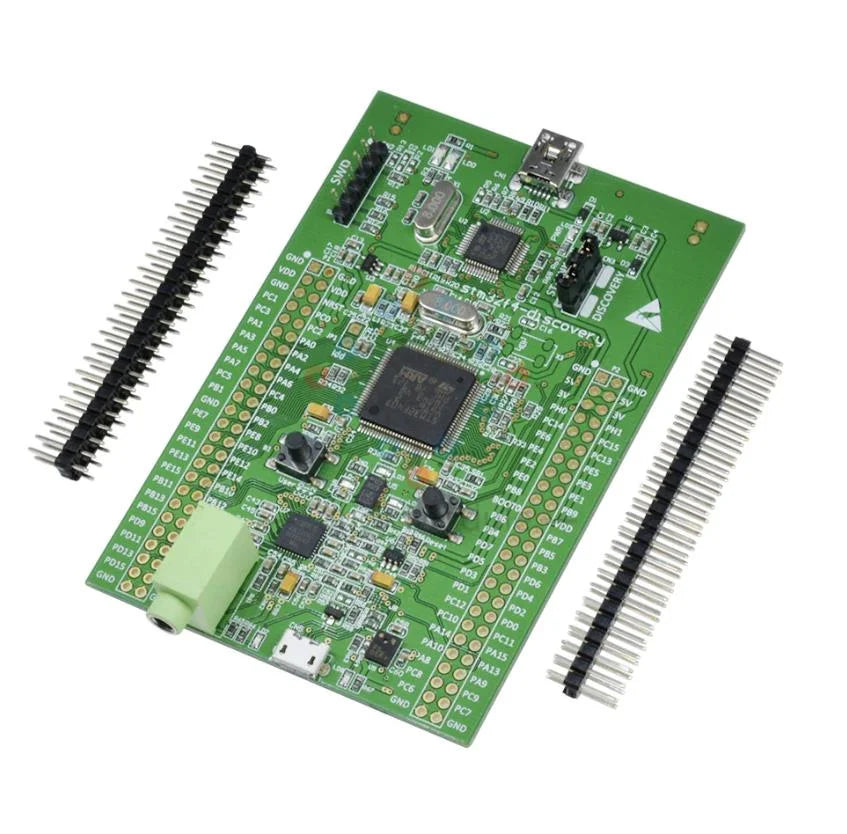

STM32 Discovery STM32F407 With the high-power ARM®Cortex®-M4 32bit processor on the STM32F4 DISCOVERY development board, you can make many projects easier. This card contains everything a beginner or experienced user needs to get started quickly. This development board includes an ST-LINK/V2 or ST-LINK/V2-A debug tool, two digital ST MEMS 3-axis accelerometers, a digital microphone, a built-in class D speaker driver and an audio DAC, leds and push buttons. and includes 1 usb OTG connector. TM32 Discovery Specifications:STM32F407 32bit FPU core ARM Cortex® -M4 microprocessor, 1Mb Flash Memory, 192kb RAM in LQFP100 packageBuilt-in ST-LINK/V2 debug toolARM® mbed™ -enabled (http://mbed.org)USB ST-LINK with renumbering capability and 3 different interfaces: 1- Virtual com port 2- Storage system 3- Debug port Board Power: Usb bus or 5V DCPower for External Applications: 3V or 5V DCLIS302DL or LIS3DSH ST MEMS 3-axis accelerometerMP45DT02 ST MEMS omnidirectional digital microphone sound sensorThe CS43L22 is an audio DAC with a built-in class D speaker driverEight LEDs: 1- LD1(red/green) for USB connection 2- When LD2(red) is 3.3V powered 3- 4 user leds; LD3(orange), LD4(green), LD5(red) and LD6(blue) 4- 2 USB OTG LEDs LD7(green) VBUS and LD8(red) overcurrent Two push buttons (User and reset buttons)USB OTG FS with micro-AB connectorLQFP100 I/Os extension headers for prototyping and easy-fast connectionSTSW-STM32068 or STM32CubeF4 packages for the use of free software, built-in libraries and a wide range of examplesSystem requirements; Windows® OS (XP, 7, 8,10) and mini USBDevelopment Tools; 1- IAR® EWARM (IAR Embedded Workbench®) 2- Keil® MDK-ARM™ 3- GCC-based IDEs (free AC6: SW4STM32, Atollic® TrueSTUDIO®,...) 4- ARM® mbed™ online
