52Pi Screw Terminal Board for Raspberry Pi Pico/Pico W

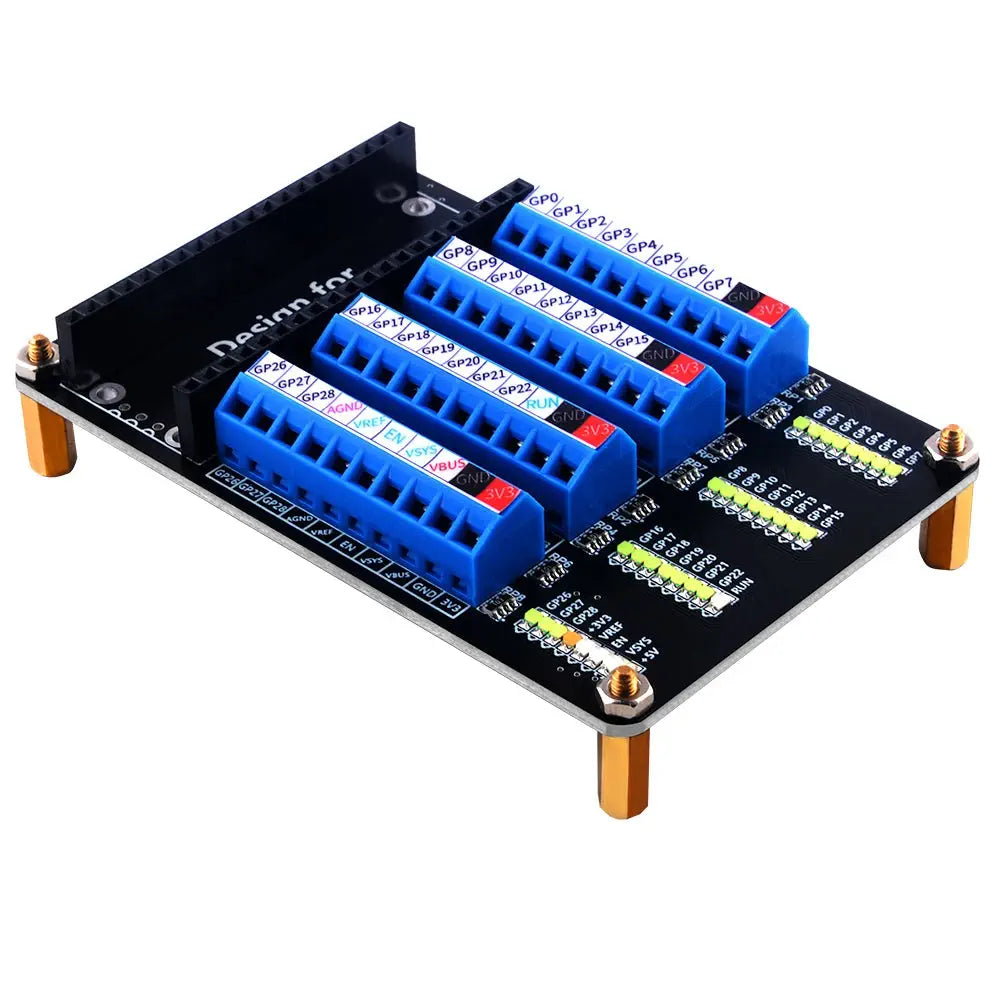

Description 52Pi Screw Terminal Board for Raspberry Pi Pico/Pico W Simplifies circuit construction Customized, labeled terminals Color-coded LED indicators Supports I2C, UART, SWD Minimizes friction damage The 52Pi Screw Terminal Board for Raspberry Pi Pico/Pico W is a meticulously designed accessory that significantly simplifies the process of constructing circuits with the Raspberry Pi Pico W. This board features customized terminals, each clearly labeled for effortless identification, facilitating a more intuitive connection process. Additionally, it includes LED indicators linked to the Pico pins, which are color-coded to denote their functions: a pink LED for the 3.3V power supply, a red LED for the 5V power supply, and a blue LED for the basic GPIO pins. This expansion board is equipped with features that enhance its utility for programming connections by leading out all pins of the Pico. It supports various data protocols, such as I2C, UART, and both analog and digital signals. The color coding system is particularly useful for recognizing the function of different GPIOs. Moreover, the design of the board minimizes friction between it and any contact surface, offering additional protection to the board. Its ease of debugging, quick connection to other modules, and suitability for SWD debugging make it an excellent tool for rapid prototyping and intelligent control applications. Please note that the expansion board should be handled with care to avoid potential damage to its components or to the Raspberry Pi Pico W. View more What's Included 1x Screw Terminal Expansion board for Raspberry Pi Pico W 4x M2.5 Coupler Pillar 4x M2.5 Nut 1x Screwdriver Dimensions 87 x 57 x 22 mm / 3.42 x 2.24 x 0.86 inch (L x W x H) Links Website 52Pi Screw Terminal Board for Raspberry Pi Pico/Pico W - Wiki Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications Type category: Expansion board Mounting hole: M2.5 Voltage: 5V GPIO level: 3.3V Pin Quantities: 40pin Compatible with: Raspberry Pi Pico W
