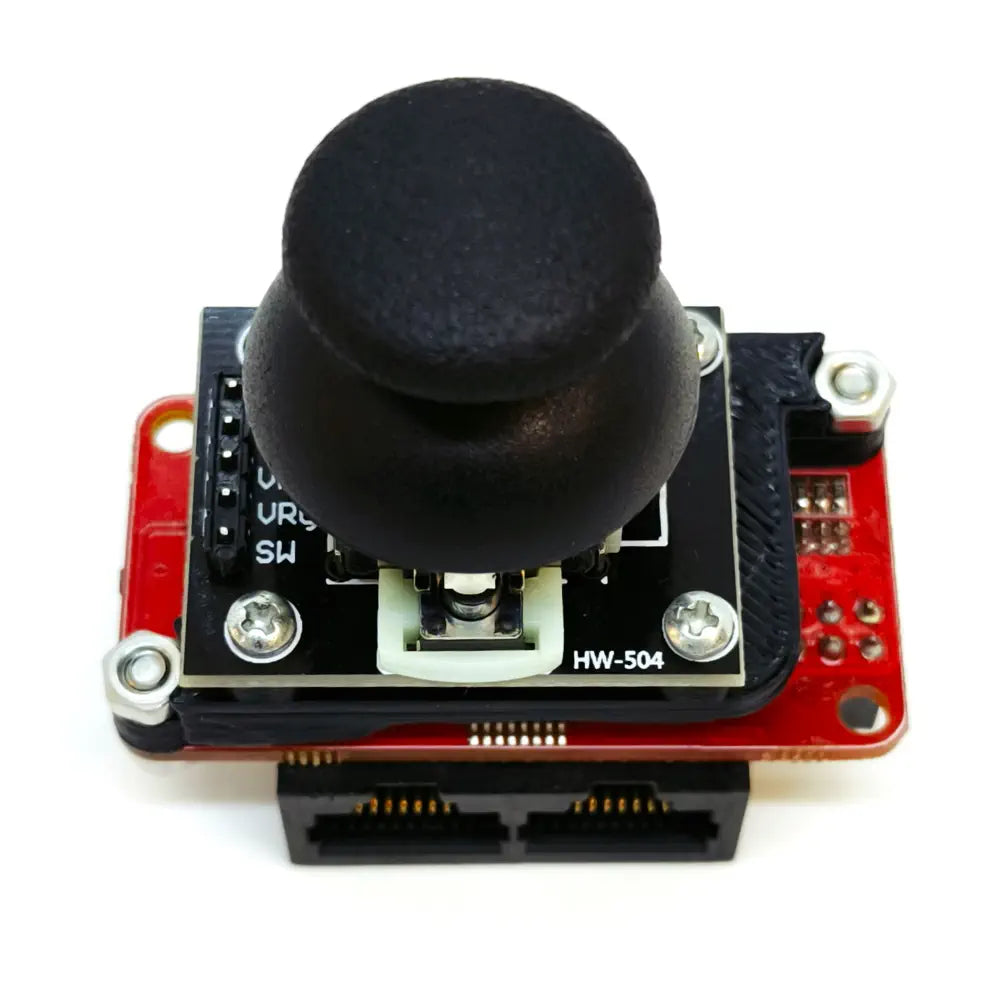

Joystick (2-Axis) Add-On Module for ACROME SMD Products
Description SMD Add-On Module for joystick control, 2-Axis (X,Y) with integrated button Flexible, easy-to-use and self-powered through the SMD network Quickly test functionality and read the joystick commands with SMD UI software No soldering, wire stripping or low-level MCU code required ACROME SMD (Smart Motion Devices) products are modular products designed to simplify the creation of robotics and mechatronics systems with a holistic electronics, mechanics and software approach. See https://acrome.gitbook.io/acrome-smd-docs for more details about SMD products. The Joystick (2-Axis) Add-On module is a specifically designed board for robotics projects based on SMD products. This module is connected to the Add-On module socket of the SMD Red BDC Motor Driver. It can be used to control actuators, motors etc. via an optimized I2C communication protocol. Due to the daisychain connection capabilities, you can mix and match different SMD modules as you want, thanks to the RJ-45 sockets with power rail inside (Power over RJ45), and CAT5/6 cables, you can place sensors anywhere in your application and access them from a central location (ie. your own controller, such as Arduino, Raspberry Pi or PC). The SMD add-on modules share a common physical size, hence multiple modules can be stacked up/down using the provided M3 mounting pads and input-out sockets. Each add-on module has its own microcontroller, enabling onboard pre-processing and buffering. Note: This product requires other SMD modules, power source (9-16V), a gateway module and a controller to operate. Consider purchasing SMD RED Starter Kit or Education Kit if you are using SMD products for the first time: https://www.robotshop.com/products/acrome-smd-starter-kit-smd-red-smart-brushed-motor-driver-recommended-new-users https://www.robotshop.com/products/acrome-smd-education-kit-teaching-robotics-sensors-and-actuators View more What's Included 1x Joystick Module 1x RJ-45 Flat Cable (20 cm.) Dimensions 27x52x53mm Width/Length/Height Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications - Analogue joystick position is sampled continously - Center button can be pressed (On/off control) - Simple and well documented Python, Arduino and Java libraries (coming soon) - Can be used with various master controllers (Arduino, RasPi, Jetson...) - Communicates with I2C, with noise reducing RJ-45 connectors and CAT5/6 cable options - Input and output connectors available for an easy daisy-chain connection - You can use up to 5 Joystick modules in a single chain - Unlimited number of modules can be connected to the main controller (with seperate Add-On chains)
