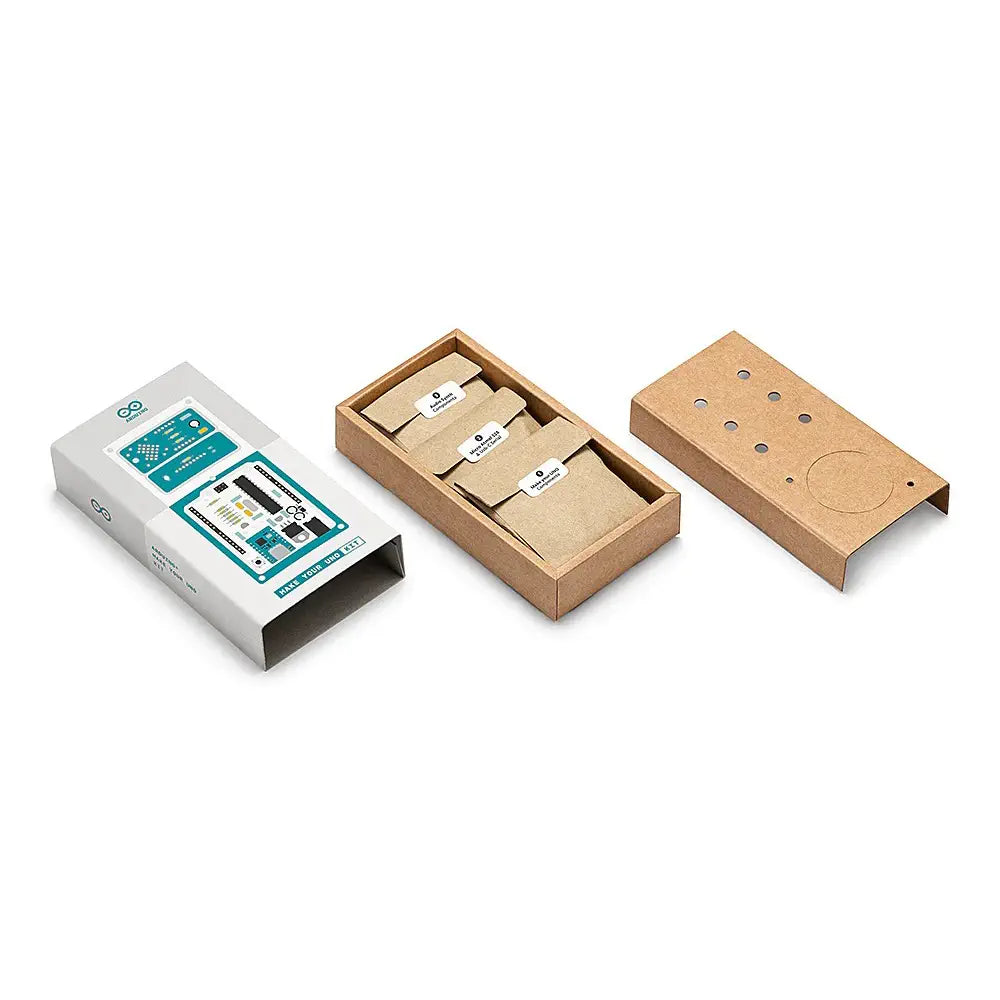

Arduino Make Your UNO Kit

$58.50
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description Arduino Make Your UNO Kit Offers to learn the basics of electronics and coding Comes with a complete set of instructions Includes a USB-C serial adapter board Allows you to build a synth and make your music Equipped with the well-known ATmega328P processor The Arduino Make Your UNO Kit is the perfect kit to learn the basics of electronics and coding by assembling your own Arduino UNO. Become familiar with soldering by mounting every single component, unleash your creativity with the Audio Synth Shield, and learn how to code using your new Arduino UNO board to create amazing projects. The Make Your UNO Kit comes with a complete set of instructions in a dedicated content platform. This includes video material, a 3D interactive viewer for following detailed instructions, and how to program your board once it is finished. Note: This kit doesn’t include a soldering iron or soldering tin. View more What's Included Arduino Make Your UNO Kit 1x Make Your UNO PCB 1x USB C Serial Adapter Board 7x Resistor 1k Ohm 2x Resistor 10k Ohm 2x Resistor 1M Ohm 1x Diode (1N4007) 1x 16 MHz Crystal 4x Yellow LED 1x Green LED 1x Push-Button 1x MOSFET 1x LDO (3.3 V) 1x LDO (5 V) 3x Ceramic Capacitor (22 pF) 3x Electrolytic Capacitor (47 uF) 7x Polyester Capacitor (100 nF) 1x Socket for ATMega 328p 2x I/O Connectors  1x Connector Header 6 pins 1x Barrel Jack Connector 1x ATmega 328p Microcontroller  Arduino Audio Synth 1x Audio Synth PCB  1x Resistor 100k Ohm 1x Resistor 10 Ohm 1x Audio Amplifier (LM386) 1x Ceramic Capacitor (47 nF) 1x Electrolytic Capacitor (47 uF) 1x Electrolytic Capacitor (220 uF) 1x Polyester Capacitor (100 nF) 4x Connector Pin Header  6x Potentiometer 10k Ohm with Plastic Knob  Spare Parts 2x Electrolytic Capacitor (47 uF) 2x Polyester Capacitor (100 nF) 2x Ceramic Capacitor (22 pF) 1x Push-Button 1x Yellow LED 1x Green LED  Mechanical Parts 5x Screw Nut 5x Spacer 12 mm 2x Screw 12 mm 11x Spacer 6 mm Dimensions Size Speaker Diameter: 45 mm Links PDF Files Arduino Make Your UNO Kit - Datasheet Arduino Make Your UNO Kit - Schematics Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications ATMega328P Processor Memory: AVR CPU at up to 16 MHz | 32kB Flash | 2kB SRAM | 1kB EEPROM Security: Power On Reset (POR) | Brown Out Detection (BOD) USB-C Serial PCB Board ATMega16U2 Processor: 8-bit AVR RISC-based microcontroller Memory: 16 KB ISP Flash | 512B EEPROM | 512B SRAM | debugWIRE interface for on-chip debugging and programming Power: 2.7 V - 5.5 V Audio Synth Shield Potentiometers: 5x 10kΩ - Trimmer potentiometer - User programmable | 1x 10kΩ - Trimmer potentiometer - Directly connected to the audio amplifier Audio Amplifier (LM386): Class-AB | 4Ω Load | 0.325 W Speaker (L50EJ): Impedance at 2kHz: 8Ω | Max Power 0.5 W | Output: 81 dB +-3 dB Weight: 48 g
