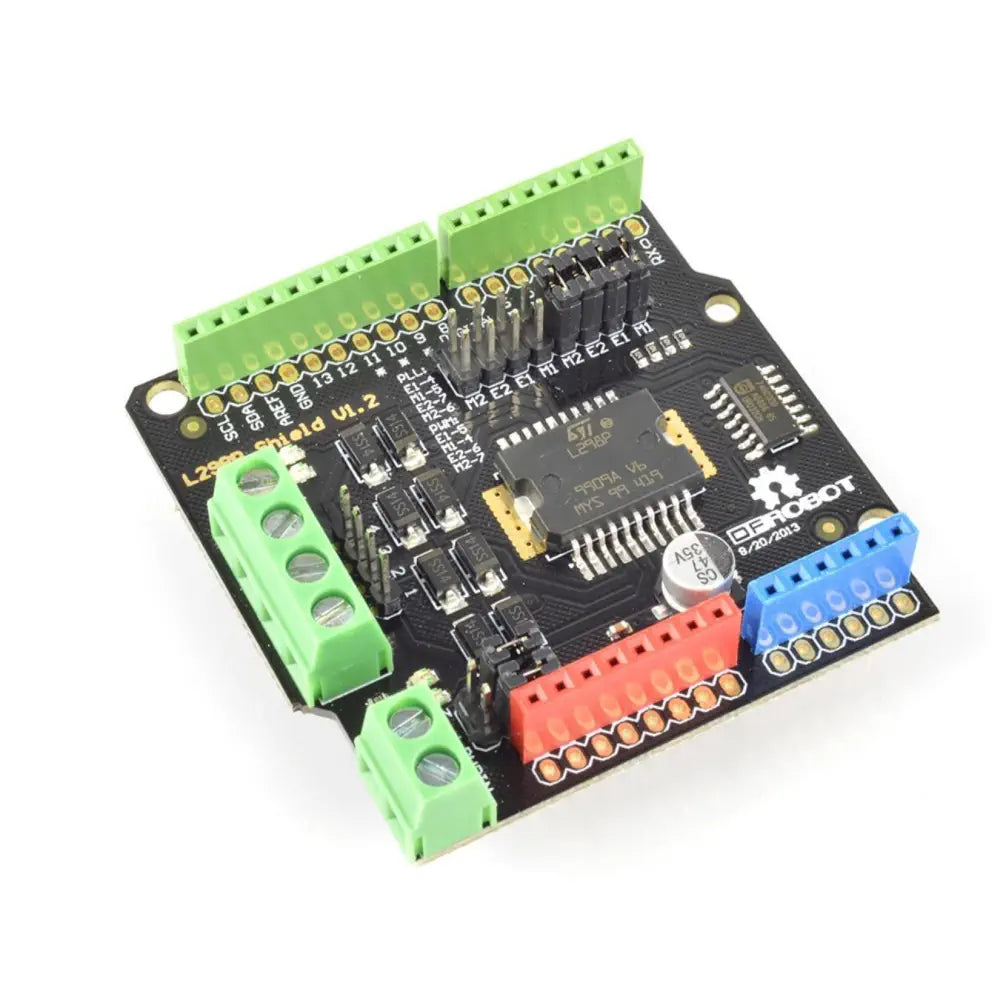

DFRobot Arduino Compatible Motor Shield (2A)

Description Uses L298P chip which allow to drive two 7-12V DC motors with maximum 2A current Logic Control Voltage:5V Can be directly mount onto standard Arduino Duemilanove and Arduino Mega Strongly encouraged to use external power supply to power the motor shield The DFRobot Arduino Compatible Motor Shield (2A)uses L298P chip which allow to drive two 7-12V DC motors with maximum 2A current. This shield can be directly mount onto standard Arduino Duemilanove and Arduino Mega. The speed control is achieved through conventional PWM which can be obtained from Arduino's PWM output Pin 5 and 6. The enable/disable function of the motor control is signalled by Arduino Digital Pin 4 and 7. The Motor shield can be powered directly from Arduino or from external power source. It is strongly encouraged to use external power supply to power the motor shield. View more Links PDF Files Manual Schematic Specifications Logic Control Voltage: 5V (From Arduino) Motor Driven Voltage: 6.5 - 12v(VIN Power Supply),4.8 - 35V (External Power Source) 2 way motor drive Logic supply current Iss: ≤36mA Motor Driven current Io: ≤2A Maximum power consumption: 25W (T=75º) Up to 2A current each way Pin 4,5,6,7 are used to drive two DC motor Support PWM speed control Support PLL advance speed control Size: 55 x 55mm
