DFRobot HCR Mobile Robot Kit

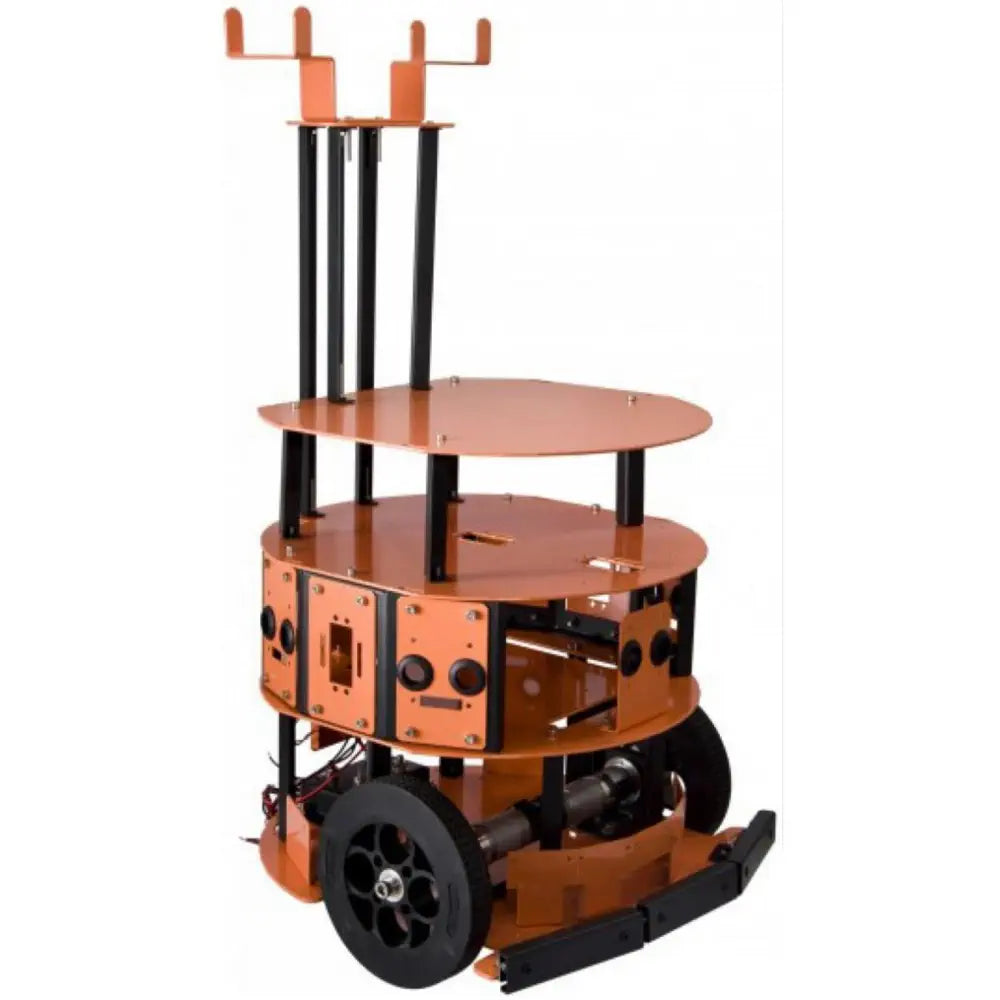

Description 2 or 3 level modular robot construction platform  Aluminum powder-coated orange (visibility)  Includes motors and all hardware  Does not include electronics The DFRobot HCR Mobile Robot Kit is a two wheel drive mobile robot platform which has three levels included (if you want, you can use only the parts you need, or make a two level robot). The kit includes two motors, 2 wheels (and one rotating third caster) and all associated plates and hardware. The supports include spaces for servos and sensors and the base has holes specifically for mini-itx motherboards. As the second generation of DFRobot's HCR (Home Care Robot) platform, it has a new motor and wheels. The customized high-quality DC motor comes with light coding structure, is quiet and has high torque. The encoder has 663 pulses per revolution, which makes the wheel rotation at an accuracy of 0.54 degrees. The resolution can meet general requirements of common PID speed controller. Whats more, the new HCR platform gives users brand new experience, for example installing a Kinect. View more What's Included Two motors with gearing and encoders 2 wheels (and one rotating third wheel) Associated plates and hardware Connectors and wiring Dimensions Size: 34.2cm x 31.3cm x 26.6cm Weight: 3Kg Motor: 12V, 17W, 120rpm, 64:1 gear down Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');$("#iframe-video-2").html('');})}); Specifications Motors Working voltage: 12V No load speed: 8100RPM RPM: 120RPM Diameter: 30mm Length: 42mm Nominal output power: 17W No load current: 75mA Load current:1400mA Gearbox ratio: 66:1 Encoders: Optical Encoder Phase: AB Encoder Resolution: 12CPR Platform Max load: ~25Kg
