DFRobot RGB LCD Backlight Module

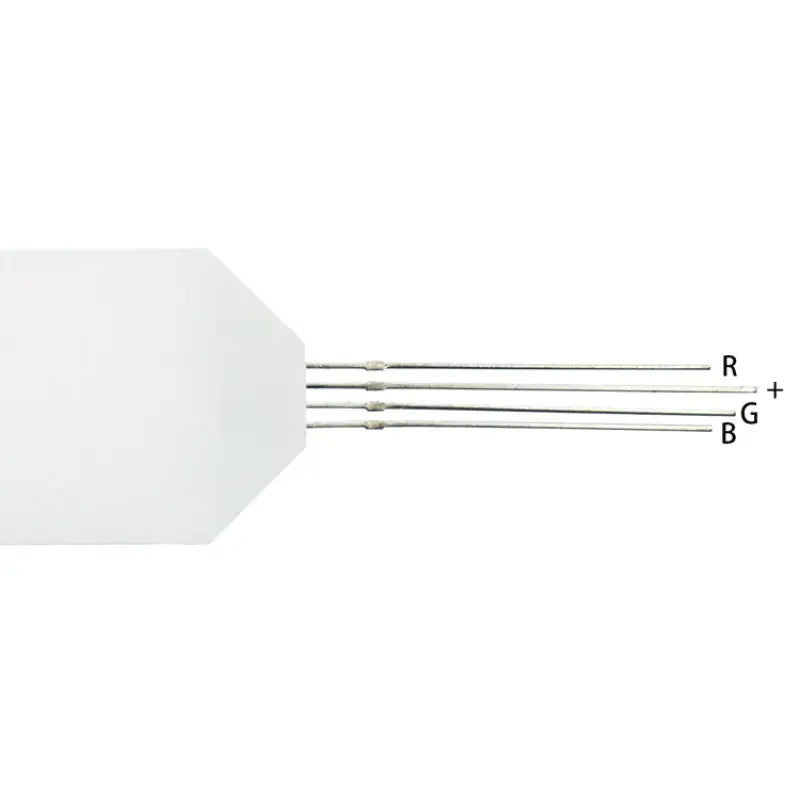

Description DFRobot RGB LCD Backlight Module Modulates backlight to display 16 million colors Features built-in common anode diode Operates within -40 to 80°C temperature range Consumes a maximum of 75mW power Measures 7.32 x 1.85 x 0.28 cm in dimensions The DFRobot RGB LCD Backlight Module features a versatile backlight that can be modulated to display a wide range of colors using the RGB color model. This model produces up to 16 million colors by varying the red, green, and blue channels, offering nearly all colors perceivable by human vision. The module includes a built-in common anode diode and can be utilized for both backlighting and LED indicators. View more What's Included 1x RGB LCD Backlight Module Dimensions Length: 7.32 cm Width: 1.85 cm Thickness: 0.28 cm Specifications Forward Voltage: 3.0V (Min), 3.2V (Max) Reverse Voltage: 5V Power Consumption Limit: 75mW Operating Temperature Range: -40°C to 80°C
