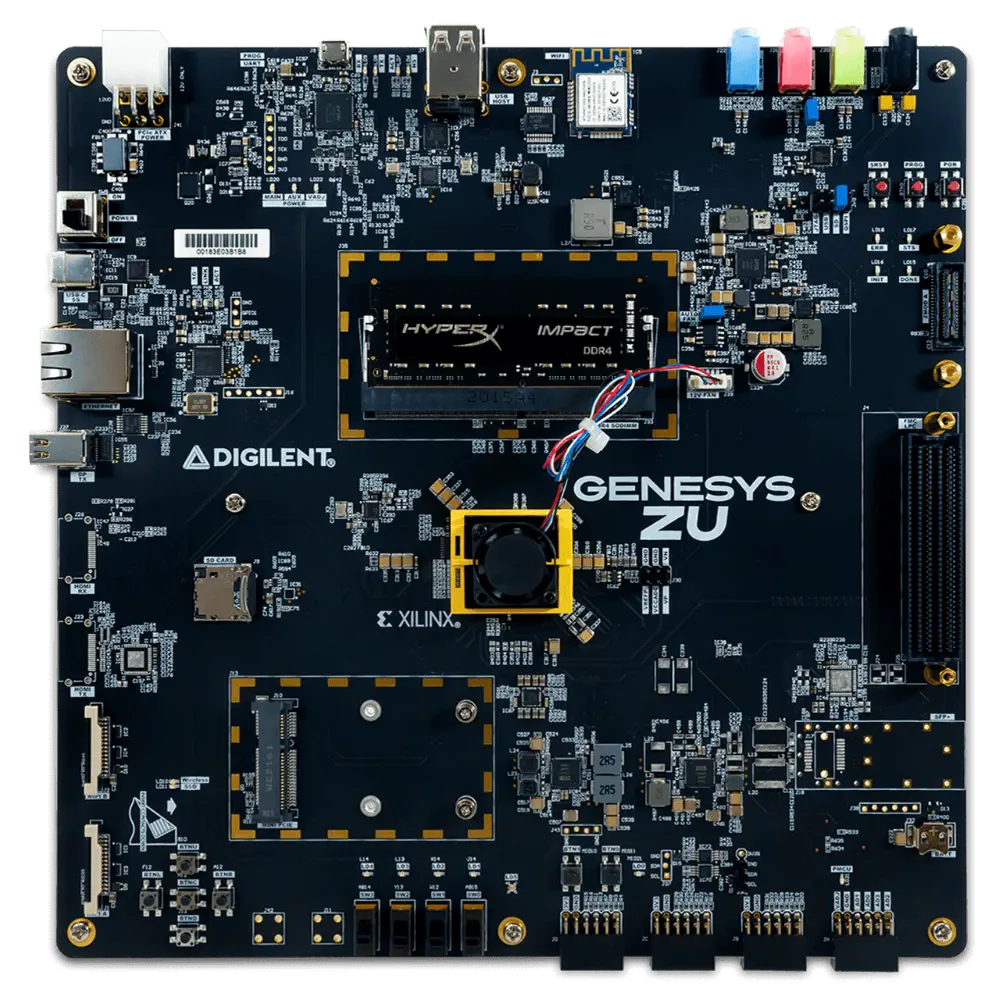

Digilent Genesys ZU-5EV Development Kit

Description Digilent Genesys ZU-5EV Development Kit Offers advanced multimedia capabilities with DDR4 memory and video codec Supports high-speed connectivity with HDMI and 10G SFP+ transceivers Enables versatile expansion through Pmod, SYZYGY, and Mini PCIe slots Facilitates rapid prototyping with Vivado Design Suite compatibility Features powerful ARM and Mali graphics processors for robust performance The Digilent Genesys ZU-5EV Development Kit is a sophisticated Zynq UltraScale+ EG/EV MPSoC development board, designed to offer a robust platform for multimedia and network connectivity applications. This development kit is distinguished by its advanced MPSoC chip, which provides enhanced features such as faster DDR4 memory, increased FPGA fabric, a video codec, and GTH transceivers that support HDMI Source, Sink, and 10G SFP+. It is particularly suited for high-definition video applications, making it ideal for multimedia, automotive ADAS, surveillance, and other embedded vision projects. The board is equipped with a variety of multimedia and network interfaces, including Mini PCIe and microSD slots, as well as multi-camera and high-speed expansion connectors. These features make it versatile for a wide range of use cases, particularly those based on Linux applications that require access to Wi-Fi, cellular radio, SSD, USB SuperSpeed, and 4K video. The development kit also includes specialized ports such as Pmod and SYZYGY-compliant expansion module ports, which facilitate flexible expansion and easy integration with a broad ecosystem of add-on modules. The Genesys ZU-5EV is supported by the Vivado Design Suite, including the free Vivado ML Standard Edition, which provides users with the tools necessary for silicon evaluation and rapid prototyping. This makes it an excellent choice for applications in next-generation wired and 5G wireless infrastructure, cloud computing, AI, and Aerospace and Defense sectors. *Note: Ensure proper handling and usage of the development kit to avoid damage or injury. View more What's Included 1x Digilent Genesys ZU-5EV Development Kit 1x 12V, 8A power supply 1x IEC cable with European plug 1x IEC cable with US plug 1x USB A to micro B programming cable 1x USB A to Type C cable 1x microSD card with the Out-of-Box Petalinux Image (loaded into the Genesys ZU's microSD card slot), with a case Pre-installed user-upgradable DDR4 Memory Specifications Zynq UltraScale+ XCZU5EV-SFVC784-1-E 256 Mbit QSPI Flash memory on-board USB FTDI interface for programming and debugging MicroSD card interface supporting SDR104 mode Board status and diagnostics via on-board platform MCU 256K logic cells 5.1 Mb Block RAM 1,248 DSP slices 4 clock management tiles DDR4, 4GB, 2133 MT/s, upgradeable memory Quad-core ARM Cortex-A53 MPCore up to 1.5 GHz Dual-core ARM Cortex-R5 MPCore up to 600 MHz Mali-400 MP2 Graphics Processor H.264/H.265 Video Codec USB Type-C 3.1 Gen1 Dual-Role Device MiniPCIe / mSATA: dual slot, Half-/Full-size USB 2.0 Host: 2x Type-A 2.4GHz On-board Wi-Fi Ethernet 1G with IEEE 1588 SFP+ 10G Ethernet 1.2a Dual-Lane DisplayPort 2 x MIPI/Pcam Dual-Lane Audio Codec HDMI Source HDMI Sink 1 x Zmod port following the SYZYGY Standard interface specification 4 x Pmod ports 1 x FMC expansion connector 1 x FMC Gigabit 4 PL-connected LEDs 1 MIO-connected LED 5 PL-connected buttons 2 MIO-connected buttons 4 PL-connected switches
