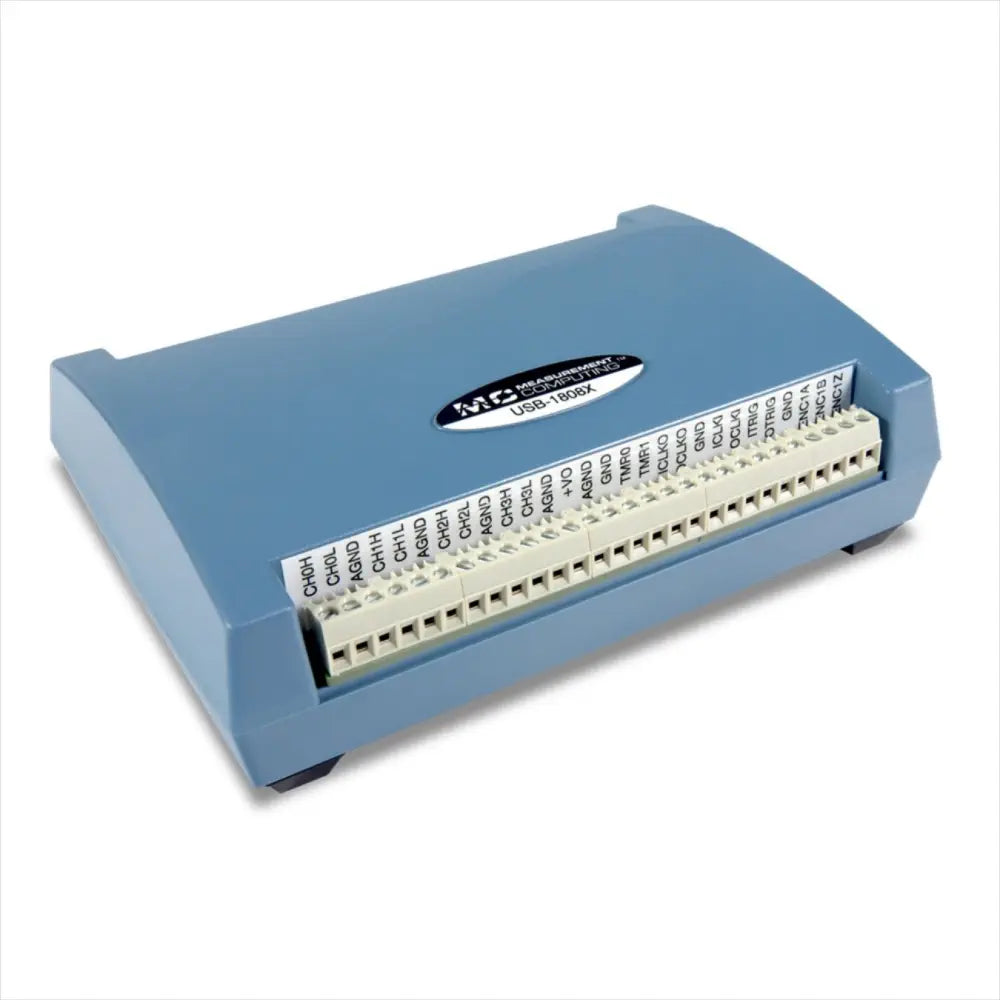

Digilent MCC USB-1808X High-Speed, High-Precision, Simultaneous USB DAQ Device
Description Digilent MCC USB-1808X: High-Speed, High-Precision, Simultaneous USB DAQ Device Offers 18-bit resolution Features eight high-precision, simultaneous analog inputs Provides two analog outputs, 4 digital I/O, two counters, and two quadrature encoder inputs No external power required Sample rate: 200 kS/s/ch The Digilent MCC USB-1808X: High-Speed, High-Precision, Simultaneous USB DAQ Device features eight high-precision, simultaneous analog inputs, 18-bit resolution, 200 kS/s/ch sample rate, two analog outputs, 4 digital I/O, two counters, and two quadrature encoder inputs. Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also included are drivers for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, MATLAB, Linux, and Python. Analog Input: USB-1808 Series devices provide eight, 18-bit simultaneous-sampling analog inputs that are software-selectable per channel for DIFF or SE mode. USB-1808X models support sample rates up to 200 kS/s per channel, while USB-1808 models support sample rates up to 50 kS/s per channel. All devices support voltage ranges of ±10 V, ±5 V, 0 V to 10 V, and 0 V to 5 V. Channel-Gain Queue: The channel-gain queue list on USB-1808 Series devices can contain up to eight unique channels that must be listed in increasing order. Analog Output: USB-1808 Series devices offer two 16-bit analog outputs. USB-1808X models can be updated at a rate of 500 kS/s per channel, while USB-1808 models can be updated at a rate of 125 kS/s. The output range is fixed at ±10 V. Digital I/O: Four digital I/O lines are individually configurable for input or output. The DIO terminals can detect the state of any TTL level input. Users can configure for pull-up (+5 V) or pull-down (0 V) with an onboard jumper. View more What's Included 1x USB-1808X 1x USB cable 1x Printed insert: DAQami Quick Start 1x MCC packaging assembly/foam, etc. Dimensions Size 4.70 x 3.53 x 1.40 inch (L x W x H) Links PDF Files Digilent MCC USB-1808X: High-Speed, High-Precision, Simultaneous USB DAQ Device - Datasheet Digilent MCC USB-1808X: High-Speed, High-Precision, Simultaneous USB DAQ Device - User Guide Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');$("#iframe-video-2").html('');})}); Specifications SE/8 DIFF simultaneous analog inputs: 8 Resolution: 18-bit Sample rate: 200 kS/s/ch Input ranges: ±10 V, ±5 V, 0-10 V, 0-5 V 16-bit analog outputs: 2 Digital I/O: 4 Counter inputs: 2 Quadrature encoder inputs: 2 Timer outputs: 2 No external power required
