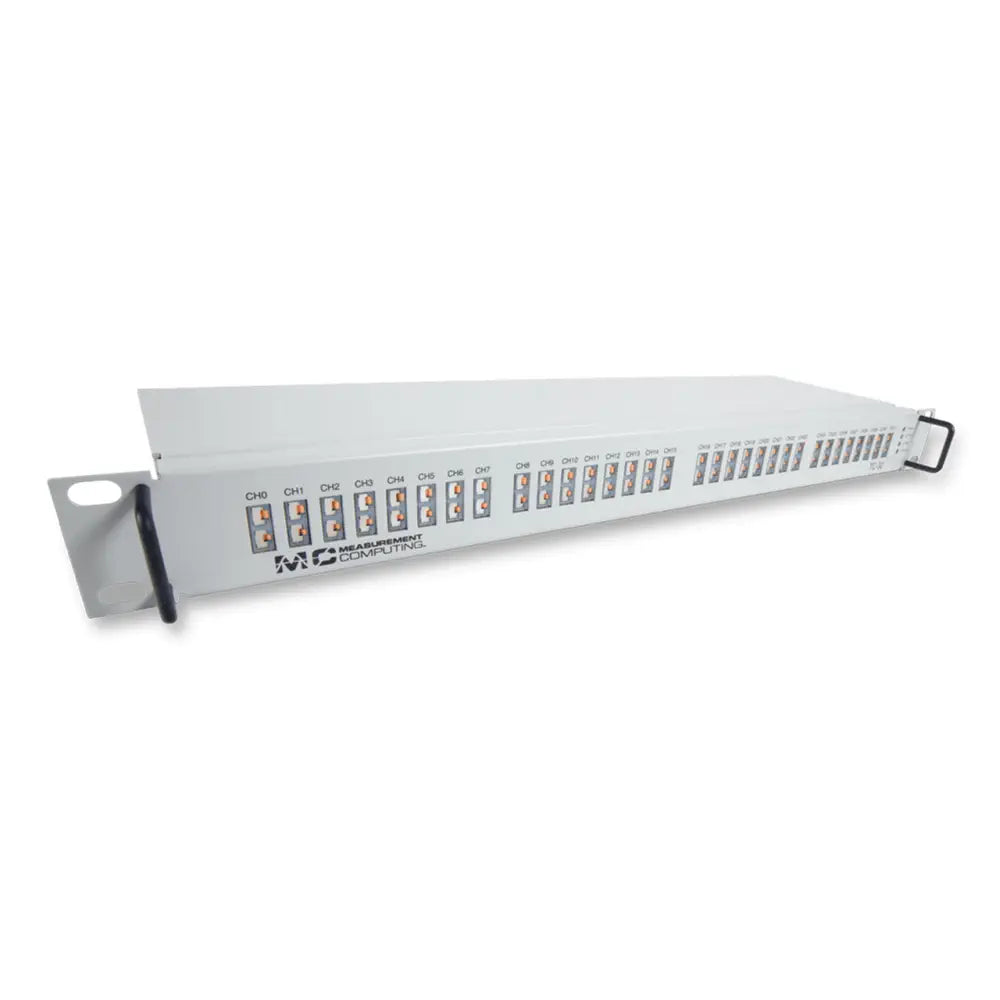

Digilent TC-32-EXP Thermocouple Input Expansion Module

Description Digilent TC-32-EXP Thermocouple Input Expansion Module Includes both USB and Ethernet interfaces Features 32 channels Offers 8 digital inputs and 32 digital outputs Sample rate: 3S/s/ch  Ideal for high-channel-count temperature applications The Digilent TC-32-EXP Thermocouple Input Expansion Module is a thermocouple measurement system and includes both USB and Ethernet interfaces. It features 32 channels (expandable to 64 using TC-32-EXP), 24-bit resolution for making precision temperature measurements, 3 S/s/ch sample rate, 8 digital inputs, and 32 digital outputs (expandable to 80 digital I/O). The TC-32 is ideal for high-channel-count temperature applications. The system can also be rack-mounted.  View more What's Included 1x Digilent TC-32-EXP Thermocouple Input Expansion Module Dimensions 482.6 x 128.6 x 43.18 mm / 19 x 6.15 x 1.74 inch (L x W x H) Links PDF File Digilent TC-32-EXP Thermocouple Input Expansion Module - Datasheet Specifications TC-32: 32 thermocouple inputs and 40 digital I/O TC-32 and TC-32-EXP: 64 thermocouple inputs and 80 digital I/O 24-bit resolution Sample rate: 3S/s/ch  Supports thermocouple types J, K, R, S, T, N, E, and B 40 digital I/O (80 digital I/O when using TC-32-EXP) USB and Ethernet interfaces
