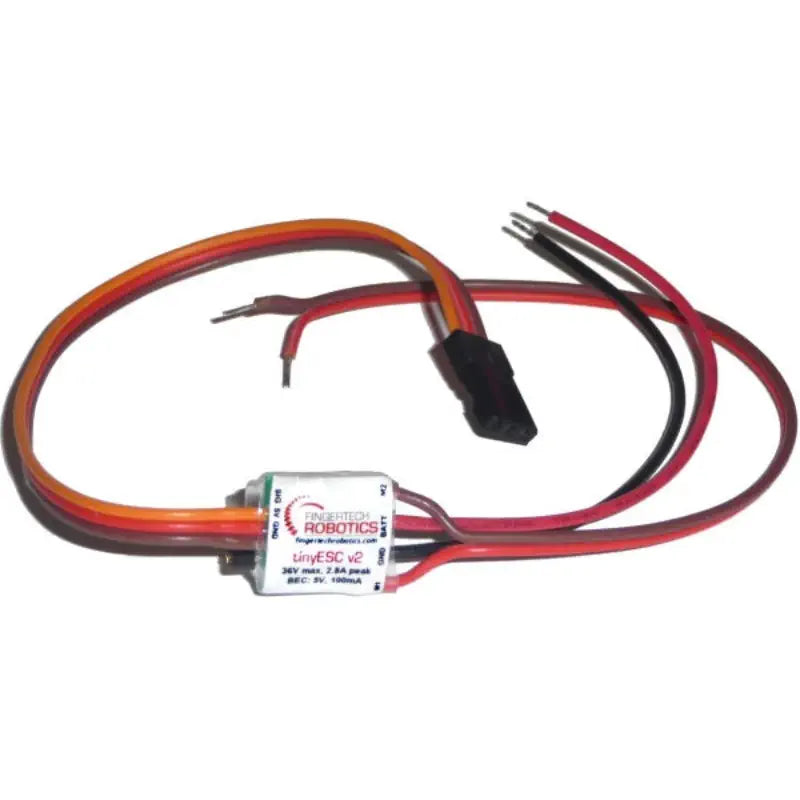

FingerTech TinyESC V2 w/ MiniQDs Installed

Description FingerTech TinyESC V2 w/ MiniQDs Installed Optimizes space and weight in robotics Provides protection against voltage and current Includes calibration for precision driving Simplifies connections with MiniQD connectors Handles up to 5A stall current motors The FingerTech TinyESC V2 w/ MiniQDs Installed is an ultra-compact and lightweight bi-directional single brushed motor controller, designed to optimize space and weight efficiency in robotic applications. It features advanced protection mechanisms including undervoltage, overcurrent, and overtemperature safeguards, ensuring reliable performance under demanding conditions. The integrated battery eliminator circuit (BEC) provides a 5V output to power the receiver, eliminating the need for an additional receiver battery. This motor controller is equipped with a calibration function that facilitates precision driving, complemented by status LEDs that indicate both directional and calibration statuses. It is particularly well-suited for use with FingerTech's Gold Spark and Silver Spark motors, among others, and can handle motors with up to 5A stall current, making it ideal for short-duration robotic operations. The TinyESC V2 is available with MiniQD connectors pre-installed, simplifying the connection process by eliminating the need for soldering. It also includes a 0.01uF capacitor to mitigate motor noise and voltage spikes, although this is not necessary for FingerTech Spark motors due to their high efficiency. Note: Multiple motors on a single TinyESC cannot be independently controlled, necessitating one ESC per side for standard drive configurations. View more What's Included 1x FingerTech TinyESC V2 w/ MiniQDs Installed 1x 0.01uF capacitor to solder between motor leads to filter motor noise and voltage spikes. Dimensions Circuit board size: 1.27 x 1.27 x 0.41 cm (0.5 x 0.16") Outer heatshrink size: 1.35 x 1.85 x 0.48 cm (0.53 x 0.73 x 0.19") Links PDF File FingerTech TinyESC V2 w/ MiniQDs Installed - TinyESC Review Specifications Bi-directional single brushed motor controller Ultra-compact and lightweight design Protection against undervoltage, overcurrent, and overheating Internal BEC provides 5V to the receiver Calibration function for precision driving Status LEDs indicate both directions and calibration Battery voltage range: 6.5V - 36V Motor current: 1.5A continuous, 2.0A usable continuous for robots Maximum current: 3A, handles 5A-stall motors easily BEC output: 5V, 100mA Frequency: 1953Hz (v2.6 and above), 976Hz (v2.5 and below) Motor is braked to stop rather than coasting Equipped with MiniQD Connectors
