Gravity CO Sensor (Calibrated) - I2C & UART

Gravity CO Sensor (Calibrated) - I2C & UART

$93.80
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}

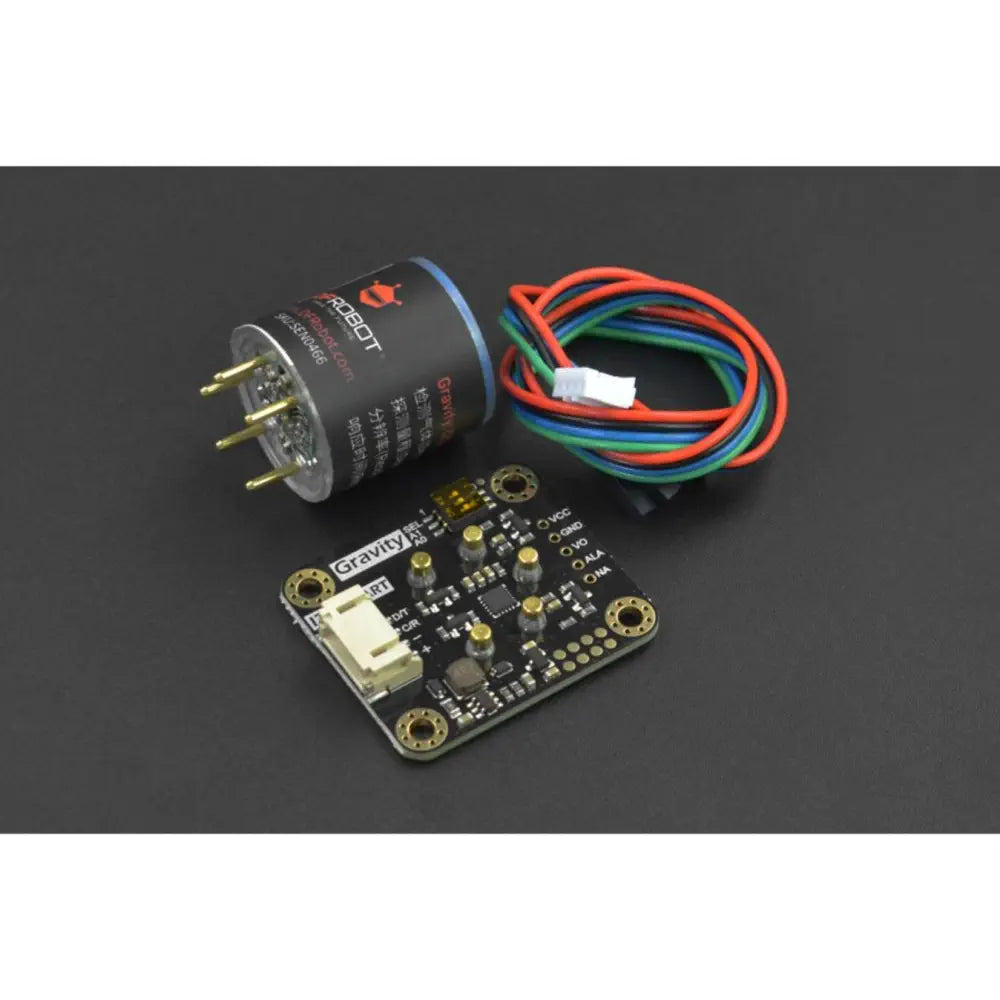

Description Gravity CO Sensor (Calibrated) - I2C & UART Detects Carbon Monoxide (CO) gas Offers high stability and high sensitivity Strong anti-interference ability Adopts the electrochemical principle Supports three output modes: analog, I2C, and UART The Gravity CO Sensor (Calibrated) - I2C & UART detects carbon monoxide and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of carbon monoxide in the environment. It can be widely applied to fields like portable devices, air quality monitoring devices, industries, mines, warehouses, and other spaces where the air is not easy to circulate. The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc. Its service life is as long as two years. View more What's Included 1x Gravity CO Signal Conversion Board 1x CO Sensor Probe 1x Gravity 4-Pin Cable Dimensions Size Adapter plate size: 37 x 32 mm Links Website Gravity CO Sensor (Calibrated) - I2C & UART - Wiki Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications Detection Gas: Carbon Monoxide (CO) Detection range: 0 - 1000 ppm Working Voltage: 3.3 ~ 5.5 V DC Working Current: <5 mA Output Signal: I2C, UART (0 ~ 3V), analog voltage Working Temperature: -20 ~ 50 °C Working Humidity: 15 ~ 90 % RH (non-condensing) Storage Temperature: -20 ~ 50 °C Storage Humidity: 15 ~ 90 % RH (non-condensing) Lifespan: >2 years (in the air) Compatibility: Arduino, ESP32, Raspberry Pi

Show More Show Less
