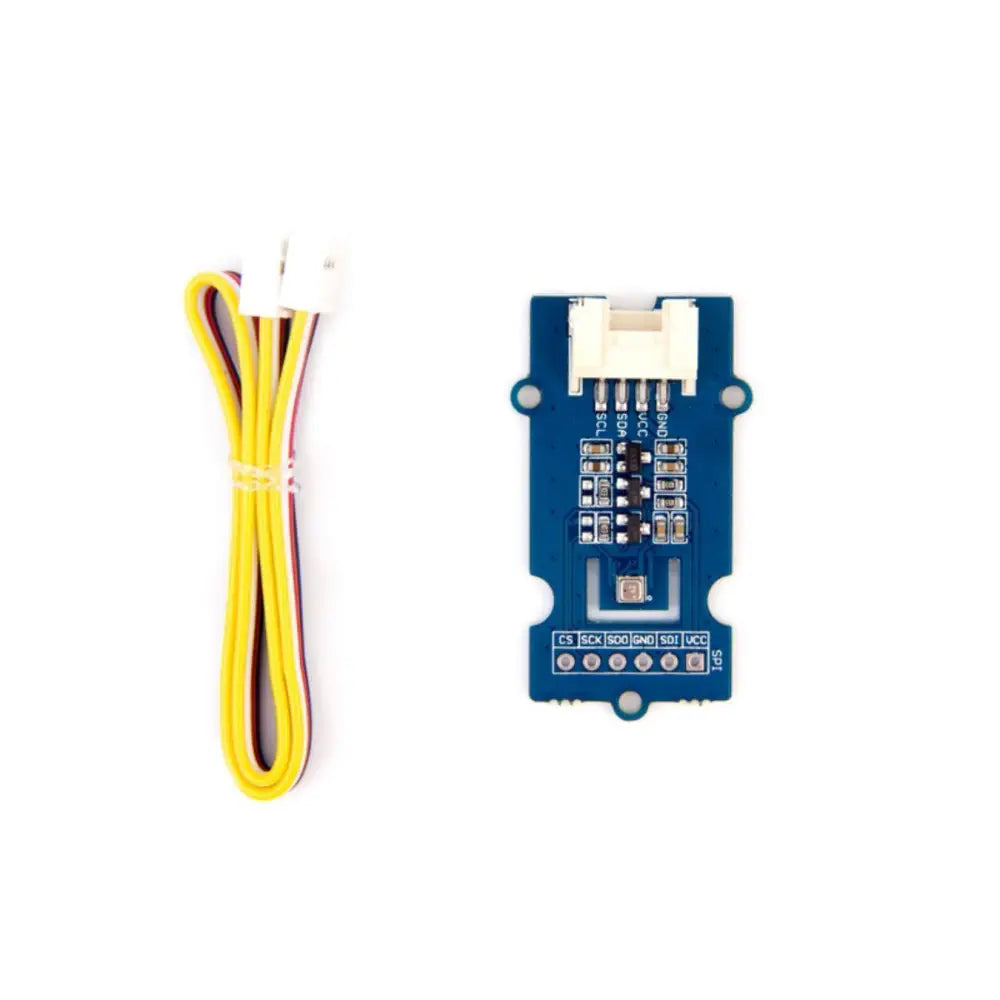

Grove - Temperature&Barometer Sensor (BME280)

Description High accuracy Absolute accuracy of ±1.0 hPa for pressure ±1 accuracy for temperature and ±3% for humidity Easy-to-use Grove Compatible Interface Supports both I2C and SPI communication Can be used as an altimeter with accuracy of ±1 meter The Grove - Temperature & Barometer Sensor (BME280) is based on new BME280 sensor, which is even superior to BMP280 used in Grove – Barometer Sensor (BMP280), and any other former versions like BMP180 used in Grove – Barometer Sensor (BMP180). The module provides precise measurement of not only barometric pressure and temperature, but also the humidity in the environment. View more Dimensions Dimensions: 20mm x 40mm  Weight: 4g Links PDF Files Datasheet Schematic 1 Schematic 2 Specifications Supply Voltage: 5V or 3.3V Current Consumption: 0.4 mA Humidity Accuracy: ±3% Interface: I2C and SPI Grove Port: I2C (selectable address at 0x77(default) and 0x76) Temperature Measurement: Range: -40 to 85 Accuracy: ±1 Barometric Pressure Measurement: Range: 300 – 1100 hPa Accuracy: ±1.0 hPa
