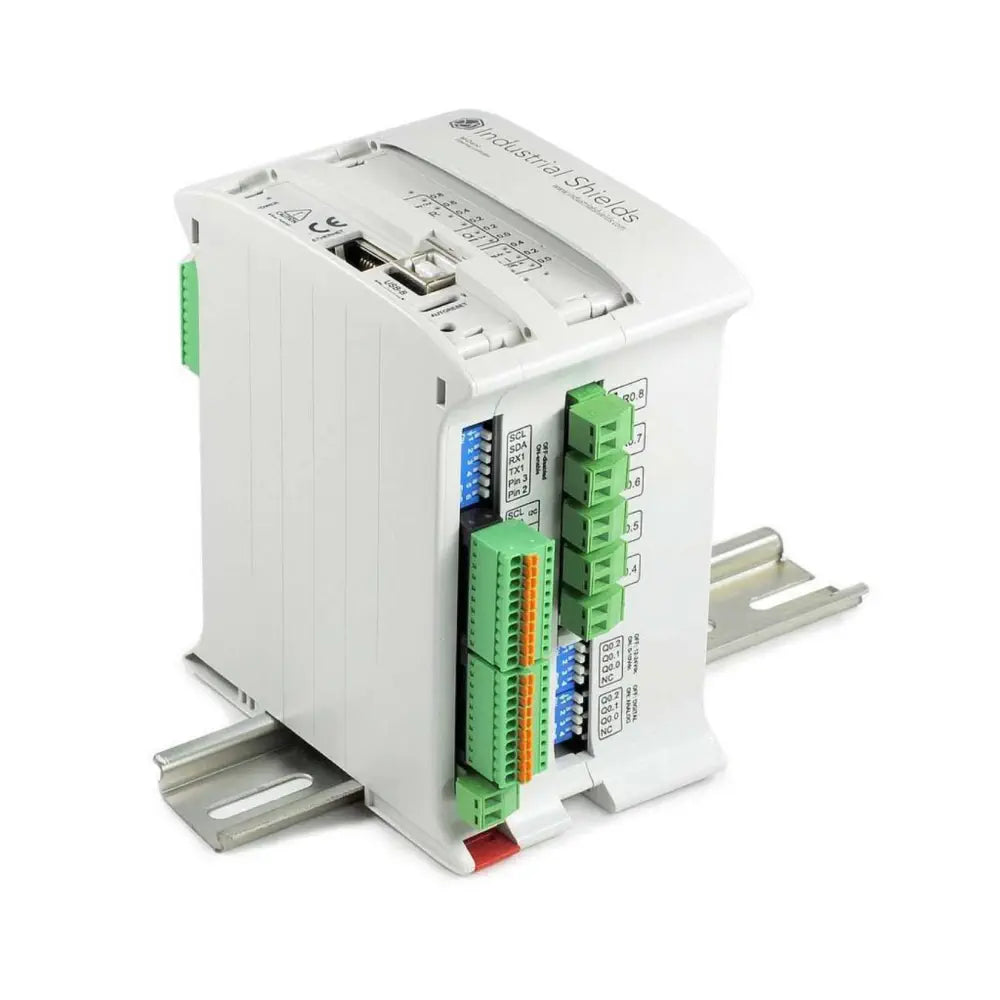

Industrial Shields Spartan Arduino PLC 19R I/Os Analog/Digital

Description Industrial Shields Spartan Arduino PLC 19R I/Os Analog/Digital Offers the possibility to expand up to 127 modules through I2C Designed for a professional use Contains several communication ports Programmed using the Arduino IDE platform Power Supply Voltage (Vdc) Range: 12-24 The Industrial Shields Spartan Arduino PLC 19R I/Os Analog/Digital is the first equipment based on the Arduino technology designed for professional use. The Spartan is programmed through the USB ports. This industrial PLC can also be programmed through an Ethernet port remotely. This offers immediate access to the program, maintenance, and control. Also, you can continuously monitor the status of all the variables, inputs, outputs, etc. It is compatible with the Redbox and the Touchberry Pi with an instantaneous connection. This controller Arduino can be programmed using the Arduino IDE platform. This industrial controller has 17I/Os. It also contains several communication ports that provide more flexibility and control. The industrial Arduino Spartans family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7.100 Inputs / Outputs in Master-Slave connections, additionally to sensors. View more What's Included 1 x Industrial Shields Spartan Arduino PLC 19R I/Os Analog/Digital Dimensions Size 101 x 119.5 x 119.3 Specifications Max. consumption: 1.2 A Power Supply Voltage (Vdc) Range: 12-24 Power Consumption (VAC max.): 30 Operating Temperature C: 0 - 60 °C Operating Temperature F: 32 - 140 °F Operating Relative Humidity % (no condensation): 10%-90% Single Board Computer (SBC) Microcontroller: ATmega 2560 Flash Memory (KB): 256 Flash Memory of which used by the bootloader (KB): 8 SRAM (KB): 8 EEPROM (KB): 4 Clock Speed (MHz): 16 Inputs Total Inputs: 5 Total Digital Optoisolated Inputs (7-24 Vdc): 2 Digital Optoisolated Inputs (7-24 Vdc): 0 Digital Optoisolated Inputs (7-24 Vdc) | can work like interrupt Inputs INT (7-24 Vdc): 1 10-bit Analog Inputs (0-10 V) | Digital (5-24 Vdc) Inputs configurable by software: 4 Outputs Total Outputs: 11 Digital Optoisolated Outputs (5-24 Vdc): 0 Digital Optoisolated and PWM (5-24 Vdc) | 8-bit Analog (0-10 V) Outputs configurable by switch: 3 Relay Outputs (220 Vac - 5 A): 8 Communication Ethernet USB port (Type B) Serial TTL (UART) RS-232 Half-Duplex RS-485
