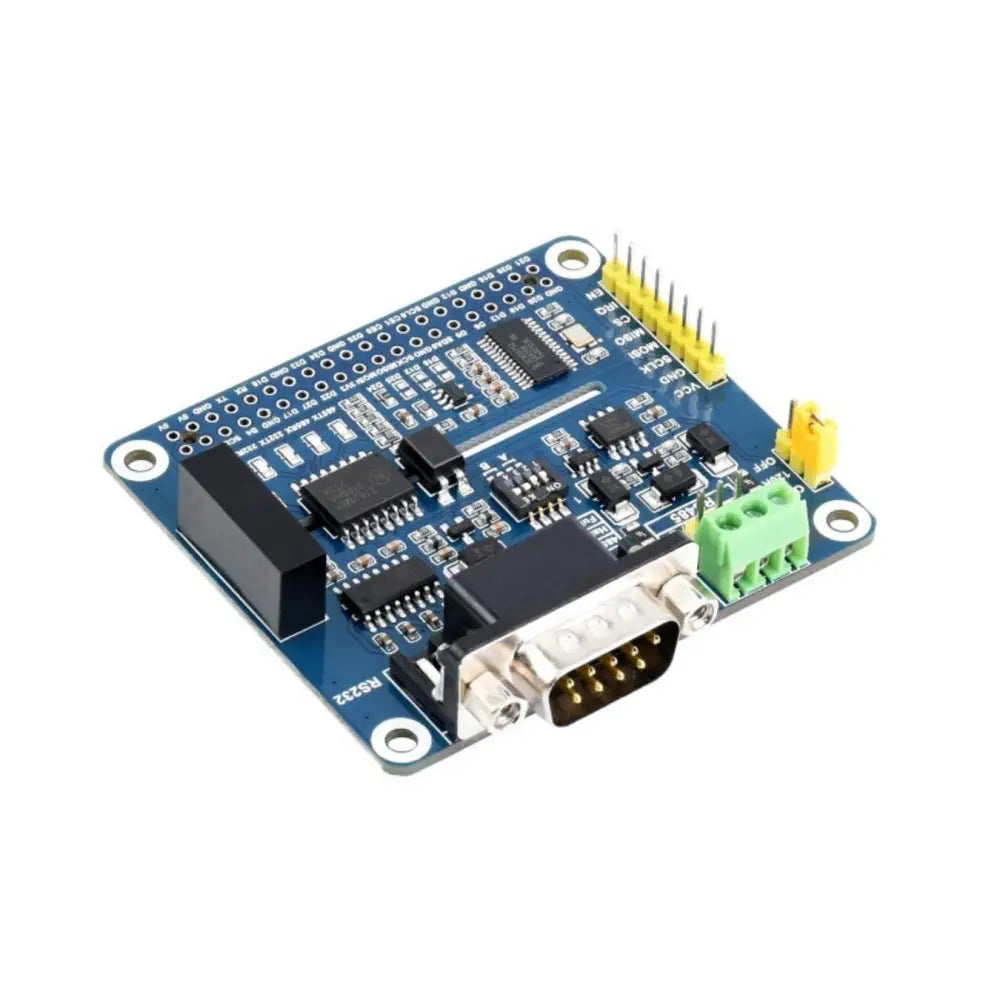

Isolated RS485 RS232 Expansion HAT for Raspberry Pi, SPI Control
www.robotshop.com

Isolated RS485 RS232 Expansion HAT for Raspberry Pi, SPI Control

$22.22
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description Isolated RS485 RS232 Expansion HAT Designed for Raspberry Pi (Not Included) Comes with development resources and manual Onboard resettable fuse and protection diodes Built-in power isolation Communication Interface: SPI The Isolated RS485 RS232 Expansion HAT for Raspberry Pi, SPI Control is an isolated RS485 and RS232 expansion board specially designed by Waveshare for Raspberry Pi. It adopts SC16IS752+SP3485, SP3232 scheme, built-in power isolation, ADI magnetic coupling isolation, and TVs and other protection circuits. View more What's Included 1x RS485 RS232 HAT 1x 2x20-Pin Header 2x Standoff pack Dimensions Size 65 x 56.5 mm Mounting hole size: 3.0 mm Links Website Isolated RS485 RS232 Expansion HAT for Raspberry Pi, SPI Control - Wiki Specifications UART Expansion chip: SC16IS752 Communication Interface: SPI RS485 Transceiver: SP3485 RS232 Transceiver: SP3232 Data Rate: Up to 921600 bps Operating Voltage: 5 V Weight: 0.033 kg
