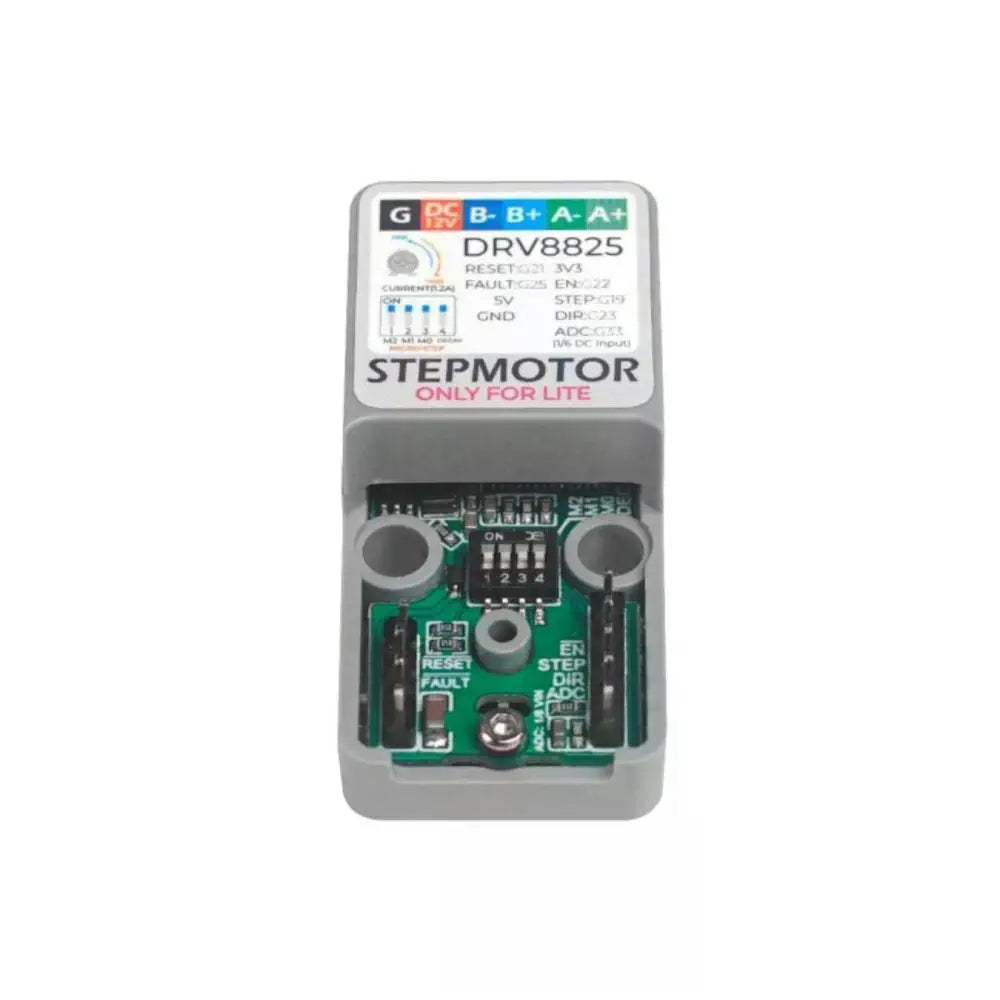

M5Stack ATOM Stepper Motor Driver Development Kit (DRV8825)
www.robotshop.com

M5Stack ATOM Stepper Motor Driver Development Kit (DRV8825)

$23.77
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description M5Stack ATOM Stepper Motor Driver Development Kit (DRV8825) Features working status indicator Provides up to 1/32 micro-stepper Lets you maximum 1.2 A drive current Built-in DC-DC Adapt to Atom Lite only The M5Stack ATOM Stepper Motor Driver Development Kit (DRV8825) is a stepper motor driver module suitable for Atom Lite only, with a built-in DRV8825 driver chip, which can be used to drive a stepper motor. The chip has its own over-current protection function. A DIP switch onboard can adjust the step number flexibly. Built-in DC-DC, the external power supply can supply power to ATOM, drive motor needs an external power supply (9-18 V). View more What's Included 1 x ATOM Lite 1 x Atom Step Motor 1 x Type-C Cable (20 cm) 1 x M2*8 Screw 1 x Hex key Dimensions Size 48 x 24 x 18 mm Specifications Micro-Stepping Levels: 1/32 Step Output current: Full-scale 1.2 A Supply voltage: 9-18 V External port: KF128L 2.54 6P Case Material: Plastic ( PC ) Weight: 17 g
