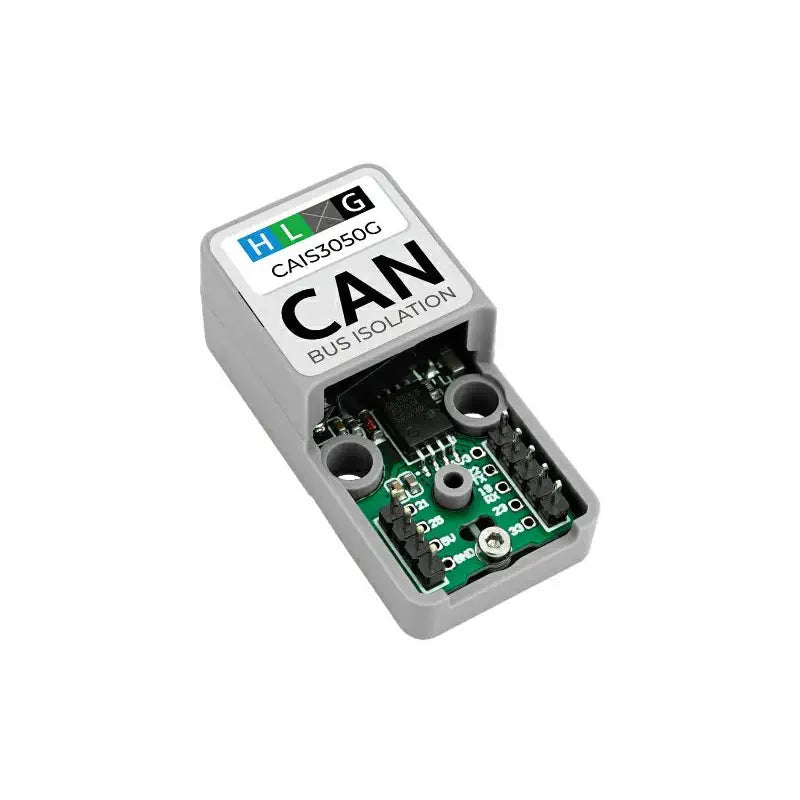

M5Stack ATOMIC CANBus Base for ATOM Matrix, Lite & S3 Controllers
Description ATOMIC CANBus Base (CA-IS3050G) High-speed 1Mbps data transfer Supports 110 nodes Built-in electrical protection Vehicle & security system ready The ATOMIC CANBus Base (CA-IS3050G) is a CAN bus communication unit specifically designed for compatibility with the ATOM series controllers. It incorporates the CA-IS3050G transceiver solution and is equipped with a built-in DC-isolated power chip, which serves to effectively isolate interference and safeguard sensitive circuits. This device is particularly well-suited for use in vehicle transportation and security system applications. With the capability to support up to 110 nodes, the communication bus of the ATOMIC CAN Base allows for exceptional scalability in extensive system setups. It boasts a signal transmission rate that reaches up to 1Mbps, ensuring high-speed and dependable data transfer. In addition to its communication capabilities, the ATOMIC CAN Base is fortified with various electrical circuit protection measures. It is designed to handle a common-mode voltage range from -12V to +12V and is equipped with over-voltage protection, failure protection, and over-temperature protection. These protective features are crucial in defending against electromagnetic interference, overvoltage, current peaks, and other adverse conditions, thereby guaranteeing the stability and reliability of the communication signals. Please note that the use of this device should adhere to the appropriate safety guidelines to prevent any potential hazards. View more What's Included 1x ATOMIC CAN Base 1x 3.96-4P terminal Dimensions 24 x 48 x 18 mm Links PDF File ATOMIC CANBus Base (CA-IS3050G) - Schematics Specifications Compatible with ATOM Matrix/ATOM Lite/ATOMS3 Lite Supports CAN bus multipoint communication Includes built-in isolation DC and protection function Signal rates up to 1Mbps External port: VH-3.96-4P CAN transceiver type: CA-IS3050G Maximum supported nodes: 110 Low loop delay: 150ns Common mode voltage: -12V Operating temperature: 0-40°C Shell material: Plastic (PC) Weight: 11.1 g
