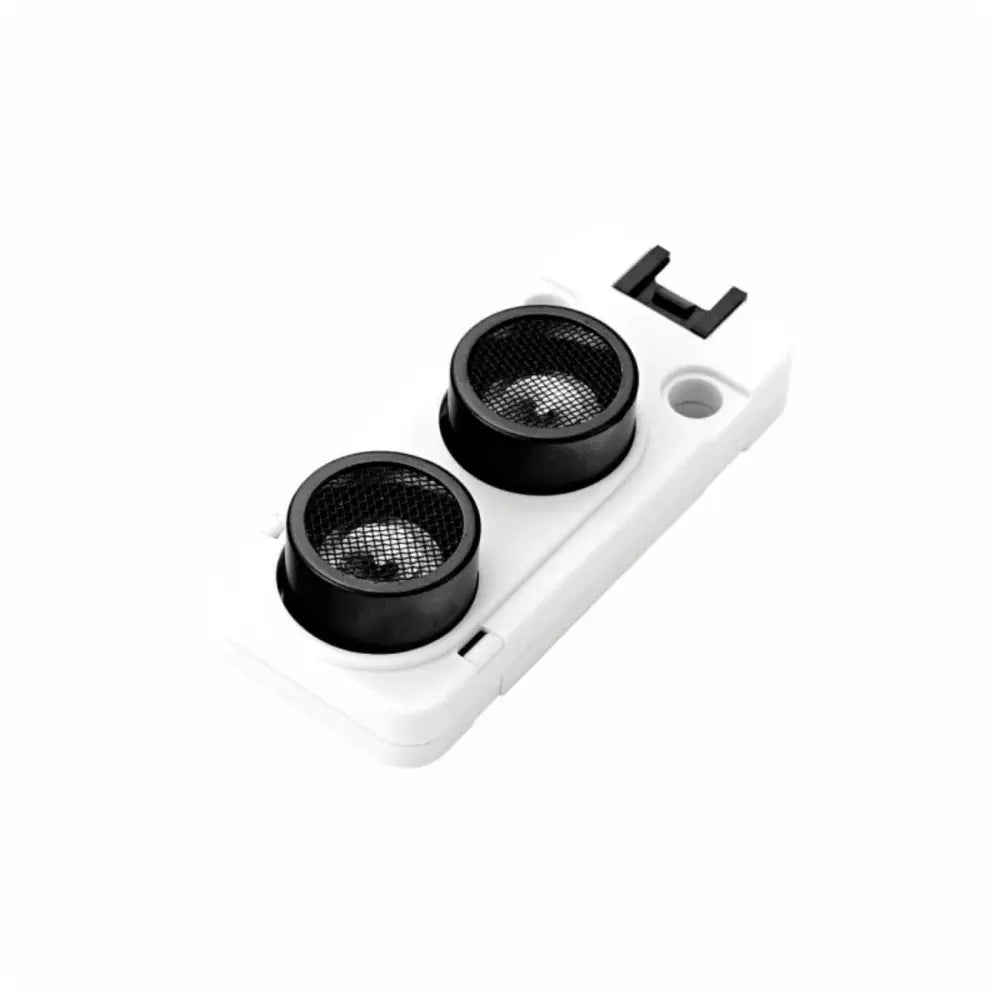

M5Stack Ultrasonic Distance Unit I/O (RCWL-9620)

Description M5Stack Ultrasonic Distance Unit I/O (RCWL-9620) Measuring range: 2 - 450 cm Built-in temperature compensation Supports UIFlow platform Working current: 3 mA Communication interface: GPIO The M5Stack Ultrasonic Distance Unit I/O (RCWL-9620) is a GPIO interface ultrasonic range sensor. This module features an RCWL-9620 ultrasonic distance measurement chip with a 16 mm probe, which the ranging accuracy can reach 2 cm to 450 cm (Accuracy up to ±2%). This sensor determines the distance to a target by measuring time lapses between the transmitting and receiving of the pulse signal, users can directly obtain the distance value through IO control mode. It is ideal to apply in robotics obstacle avoidance, fluid level detection, and other applications that require you to perform measurements. View more What's Included 1x Unit UNIT SONIC IO 1x HY2.0-4P Cable (20 cm) Dimensions Size 56 x 24 x 15 mm (L x W x H) Specifications Ultrasonic Ranging Single Chip: RCWL-9620 Range: 2 - 450 cm Probe Specifications: 16 mm Receiving/Transmitting Frequency: 40 kHz Receiving sensitivity: -65 dB Pointing angle: 60° Measurement accuracy: ±2 % Working current: 3 mA Weight: 11.5 g
