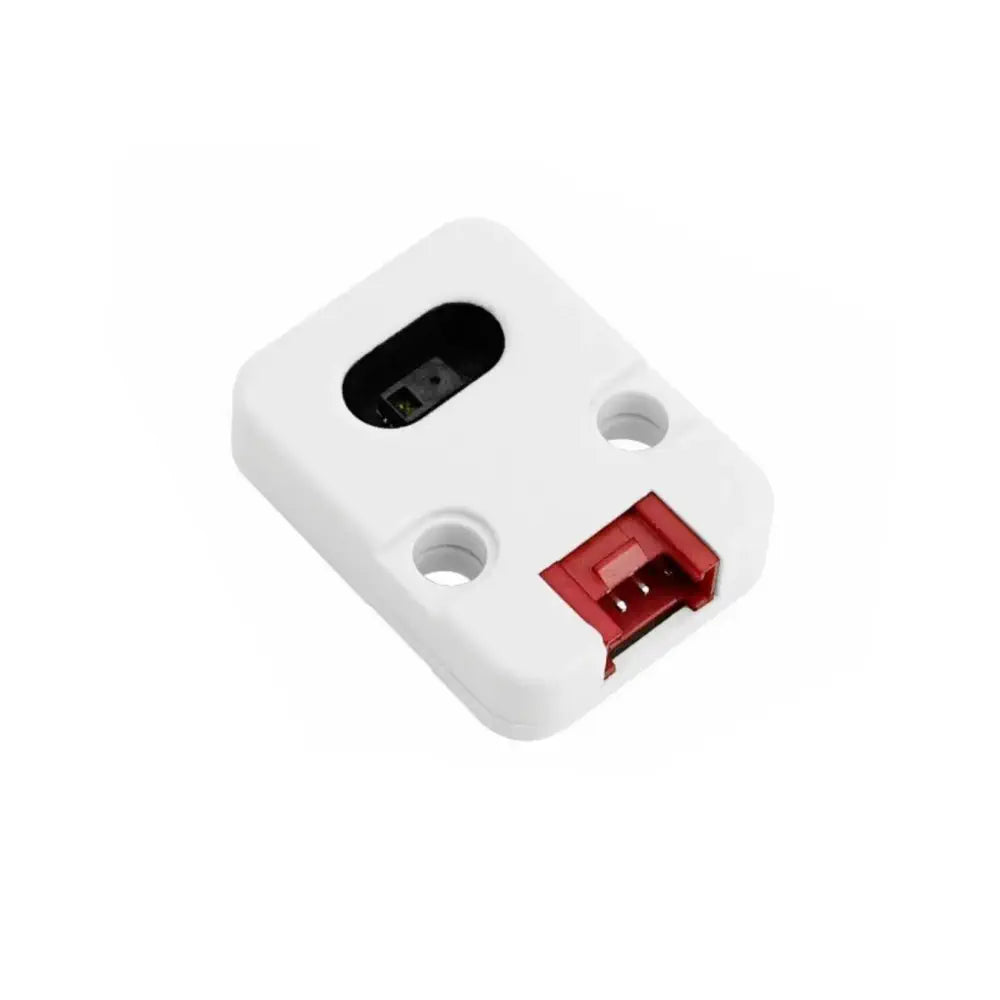

M5Stack Unit Gesture Recognition Sensor (PAJ7620U2)
www.robotshop.com

M5Stack Unit Gesture Recognition Sensor (PAJ7620U2)

$18.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description M5Stack Unit Gesture Recognition Sensor (PAJ7620U2) Recognizable gestures up to 9 kinds Faster and more accurate Interface: I2C Effective recognition distance: 5 - 15 cm Embedded infrared LED and optical lens Development Platform: Arduino, UIFlow The M5Stack Unit Gesture Recognition Sensor (PAJ7620U2) is a touchless 3D gesture recognition sensor via the I2C interface that integrates with PAJ7620U2. You could feel the charm of 9 kinds of gesture recognition by default program. In addition to adding more complex gestures, the recognition rate is up to 240 Hz with higher anti-interference capability. This sensor is reliable for its recognition process is intuitive and has low power consumption (operating current only 2.2 mA) that allows you to control a robot in accordance with your hand's movement. This is particularly useful in interactive applications. View more What's Included 1x UNIT Gesture 1x HY2.0-4P Cable Dimensions Size 24 x 32 x 8 mm (L x W x H) Specifications Gesture recognition frequency: Typical value: 120 Hz | Maximum: 240 Hz Support gestures: 9 built-in + 4 software extensions + support software algorithm expansion Effective recognition distance: 5 cm - 15 cm R Ambient light immunity: <100k Lux Communication interface: I2C, addr: 0x73 Working current: 2.2 mA Weight: 4.3 g

Show More Show Less
