M5Stack Voltmeter Unit (ADS1115)
www.robotshop.com

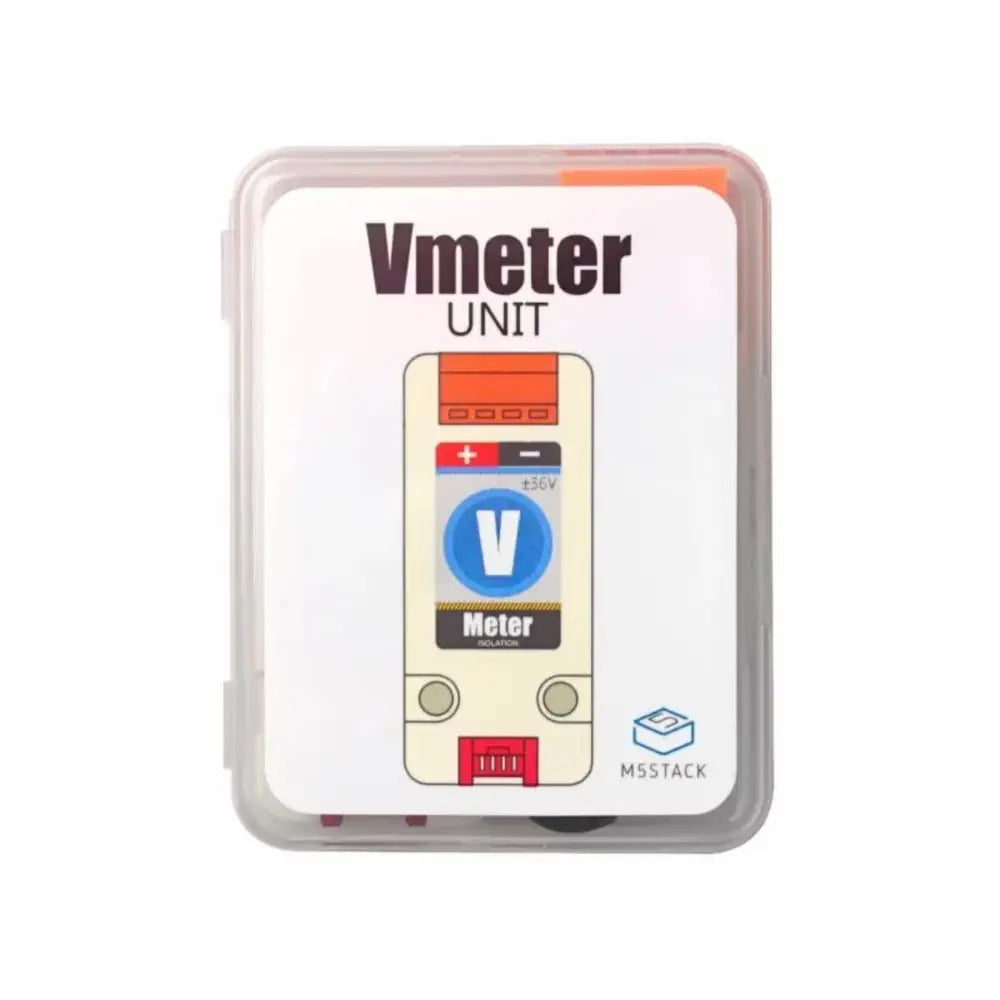

M5Stack Voltmeter Unit (ADS1115)

$26.48
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description M5Stack Voltmeter Unit (ADS1115) Offers two Lego compatible holes Features overcurrent protection Built-in DC-DC isolated power supply Lets you 16-bit ADC conversion Monitor the voltage in real-time The M5Stack Voltmeter Unit (ADS1115) is a voltage meter that can monitor the voltage in real-time. The 16-bit ADC (analog-to-digital) converter ADS1115 is used internally to communicate through I2C (0X49). There is a built-in DC-DC isolated power supply, and the I2C interface is also electrically isolated through the low-power isolator CA-IS3020S. View more What's Included 1 x Voltmeter Unit 1 x Grove Cable Dimensions Size 65 x 24 x 8 mm Specifications Withstand voltage: 5000 V Accuracy: up to ±1999 Measuring range: ±36 V Lego Compatible holes: 2 Protocol: I2C LED power indicator: Yes Overcurrent protection: Yes Weight: 9 g
