MakePython ESP8266 WiFi Microcontroller

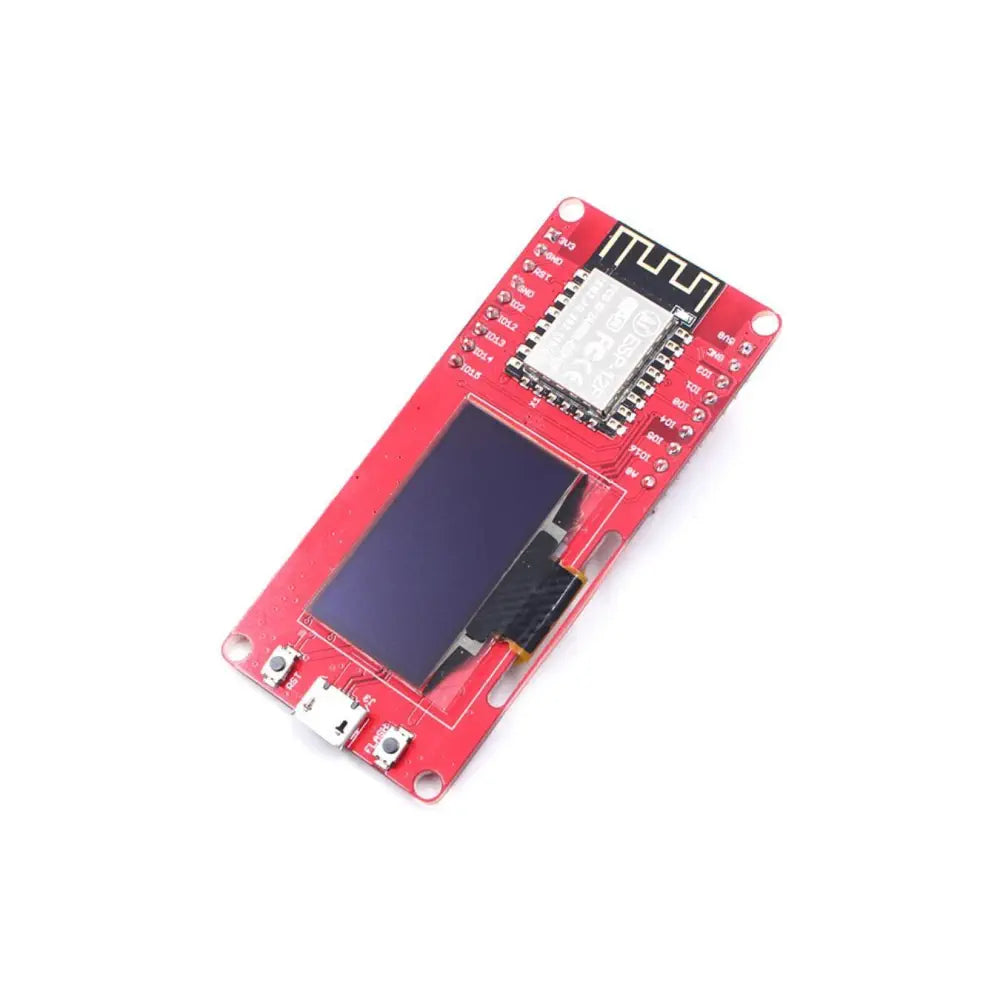

Description ESP8266 WiFi Microcontroller by Makerfabs Features the MakePython ESP8266 Module Provides a lean implementation of the Python 3 programming Comes with a 1.3 inch OLED screen Breadboard compatible The MakePython ESP8266 WiFi Microcontroller integrates the ESP8266 Module and 1.3 inch OLED, to give the MicroPython learners/ developers a suitable platform. It is true “breadboard compatible”, with the very detailed Pins explanation, it is easy to learn& use. The MakePython ESP8266 is programmed with MicroPython by default, users can begin the MicroPython developing as getting then on hand. There Makerfabs also provide the MakePython ESP8266 Kit example guide and related components, for these MicroPython learners. View more What's Included 1 x MakePython ESP8266 WiFi Microcontroller Dimensions Size 70 x 32.6 mm (L x W) Links Website MakePython ESP8266 WiFi Microcontroller - Documentation Specifications Wi-Fi Protocols: 802.11 b/g/n Frequency range: 2.4 ~ 2.5 GHz Hardware CPU: Tensilica L106 32-bit processor Module interfaces: UART/SDIO/SPI/I2C/I2S/IR Remote Control/GPIO/ADC/PWM/LED Light & Button RAM: 50 KB Integrated crystal: 26 MHz crystal Integrated SPI flash: 4 MB Power supply: 5V. Integrated 5 V - to - 3.3 V LDO Operating current: Average 80 mA Minimum current delivered by power supply: 500 mA OLED: 1.3 inch SSD1306/SSD131S Recommended operating temperature range: -40 ~ +85 °C Moisture sensitivity level (MSL): Level 3
