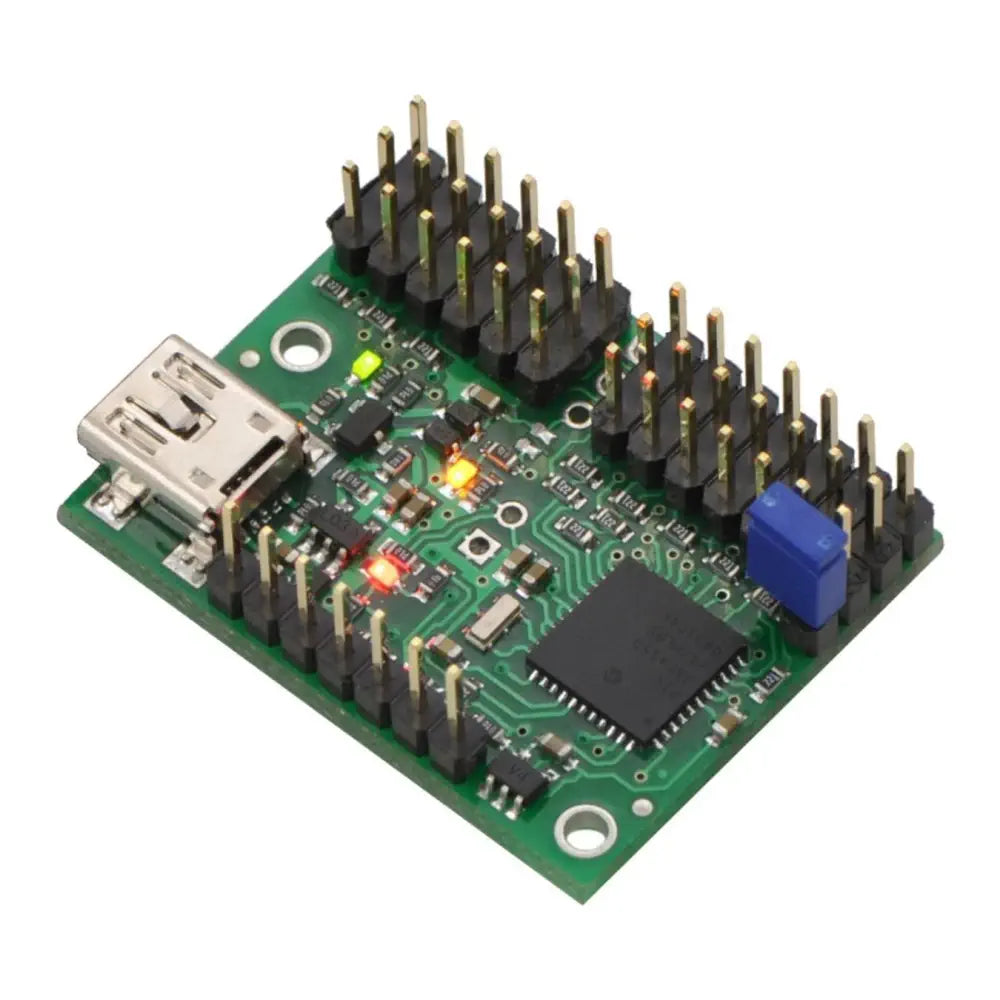

Mini Maestro 12-Channel USB Servo Controller (Assembled)

Description Three control methods: USB, TTL (5V) serial 0.25μs output pulse width resolution Pulse rate configurable from 1 to 333 Hz Wide pulse range of 64 to 4080 μs Individual speed and acceleration control for each channel Channels can be optionally configured The Mini Maestro 12-Channel USB Servo Controller (Assembled) performance bar for serial servo controllers with features such as a native USB interface and internal scripting control. Whether you want the best servo control available (0.25μs resolution with built-in speed and acceleration control and pulse rates up to 333 Hz) or a general I/O controller (e.g. to interface with a sensor or ESC via your USB port), this compact, versatile device will deliver. This fully-assembled version ships with header pins installed. View more Dimensions Width: 1.10" (2.79 cm) Length: 1.42" (3.61 cm) Weight: 4.2 g Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');$("#iframe-video-2").html('');})}); Specifications Channels: 12 Analog input channels: 12 Digital input channels: 0 Configurable pulse rate(2): 1–333 Hz Pulse range(2): 64–4080 μs Script size(3): 8 KB
