Nexus Robot Arduino 328 Microcontroller

$71.14
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

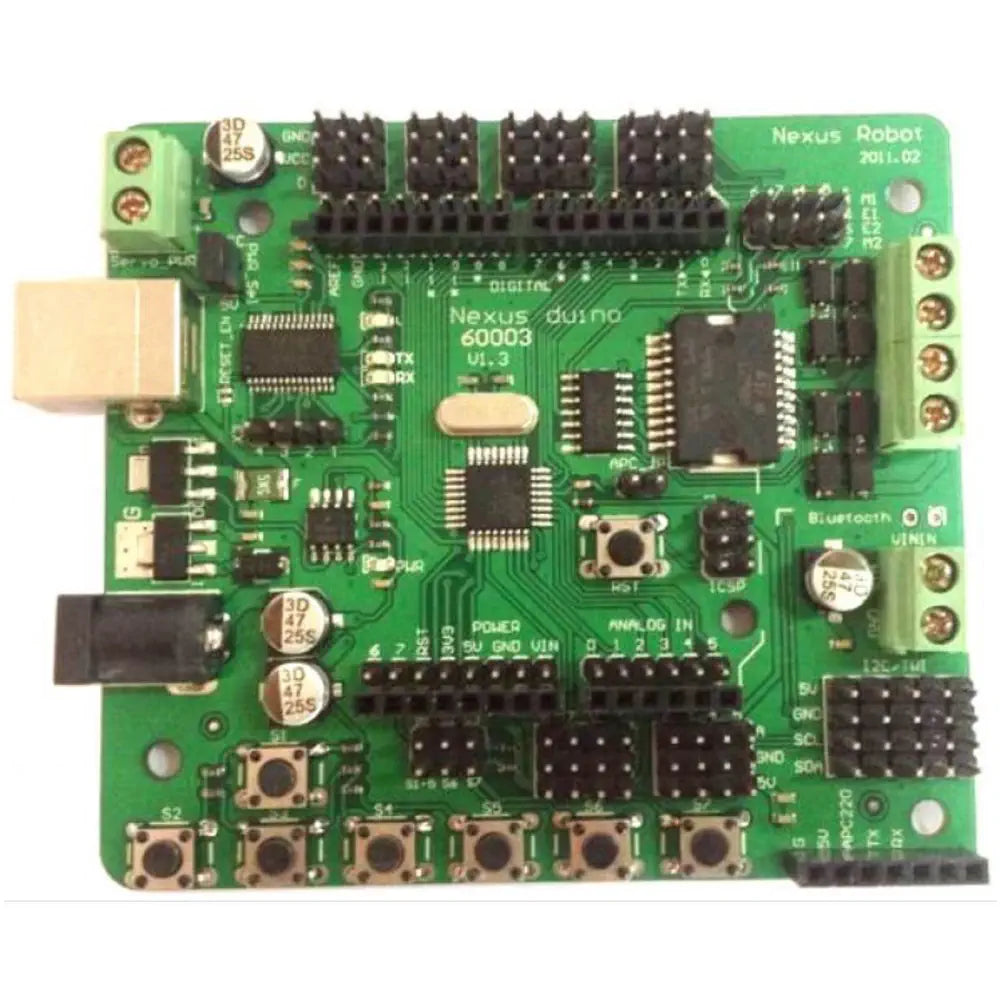

Description Arduino Atmega328 microcontroller with DC motor driver Digital I/O pins: 14 (of which 6 provide PWM output) Flash memory 32 KB Operating voltage: 5V The Nexus Robot Arduino 328 Microcontroller is a microcontroller board based on the Arduino 168. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller, simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. Compatible with Arduino Duemilanove Prototype Shield Arduino I/O Shield Arduino LCD Shield Arduino Motor Shield Arduino Ethernet Shield View more Links PDF file Schematics Specifications Microcontroller: ATmega328 Input voltage (recommended): 7-12V Input voltage (limits): 6-20V Analog input pins: 8 DC current: 40mA (I/O pin), 50mA (3.3V pin) Flash memory 32 KB of which 2KB used by bootloader SRAM: 1KB(ATmega168) or 2KB(ATmega328) EEPROM: 512bytes (ATmega168) or 1KB (ATmega328) Clock speed: 16 MHz
