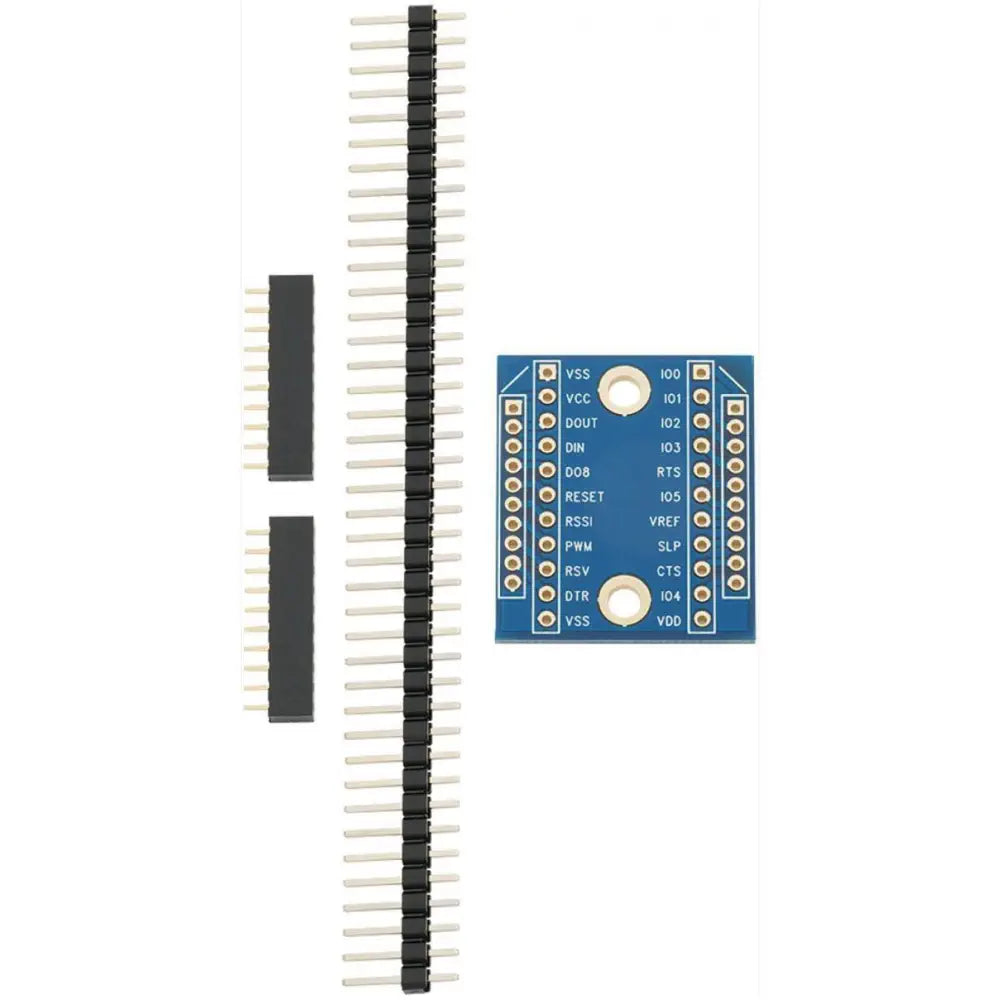

Parallax Breakout Board for XBee Module

Description Comes in a kit form Converts XBee 2mm pin spacing to 0.100" pin spacing Includes mounting holes RoHS Compliant This Parallax Breakout Board for XBee Module comes in a kit form and provides a cost-effective solution to interfacing to any XBee or XBee Pro module. By using this adapter board you can provide an easy interface to the XBee or XBee Pro modules by converting the 2mm pin spacing to breadboard friendly 0.100" spacing. The adapter boards also provide a means to connect pluggable wires or solder connections and also provide mounting holes. Tools Required: Soldering iron, solder, flux, diagonal cutters or exacto knife. Features: Converts XBee 2mm pin spacing to 0.100" pin spacing Provides easy pluggable wire or solder connections Includes mounting holes Pin-out compatible with other parallax XBee Adapter boards Kit form for flexible configuration Note: The XBee Adapter Board includes two additional Vdd and Vss pins that are not needed for operation of the XBee RF Module. When cutting the 40-pin header, be sure to only solder the first 10 pins on each side, leaving the bottom two pins labeled Vdd and Vss not connected. Some soldering experience is required for this kit. View more What's Included (1) XBee Adapter Board PCB (2) 10-pin 2mm sockets (1) 40-pin SIP header Dimensions Dimensions: 1.16 x 1.0 x 0.58 in* (29.4 x 25.6 x 14.8 mm*) *When headers are attached Links PDF File XBee Adapter Board documentation Specifications Power requirements: 3.3V pass-through to XBee module Communication: Serial pass-through to XBee module Dimensions: 1.16 x 1.0 x 0.58 in* (29.4 x 25.6 x 14.8 mm*) *When headers are attached Operating temp range: -40 to +185°F (-40 to +85°C)
