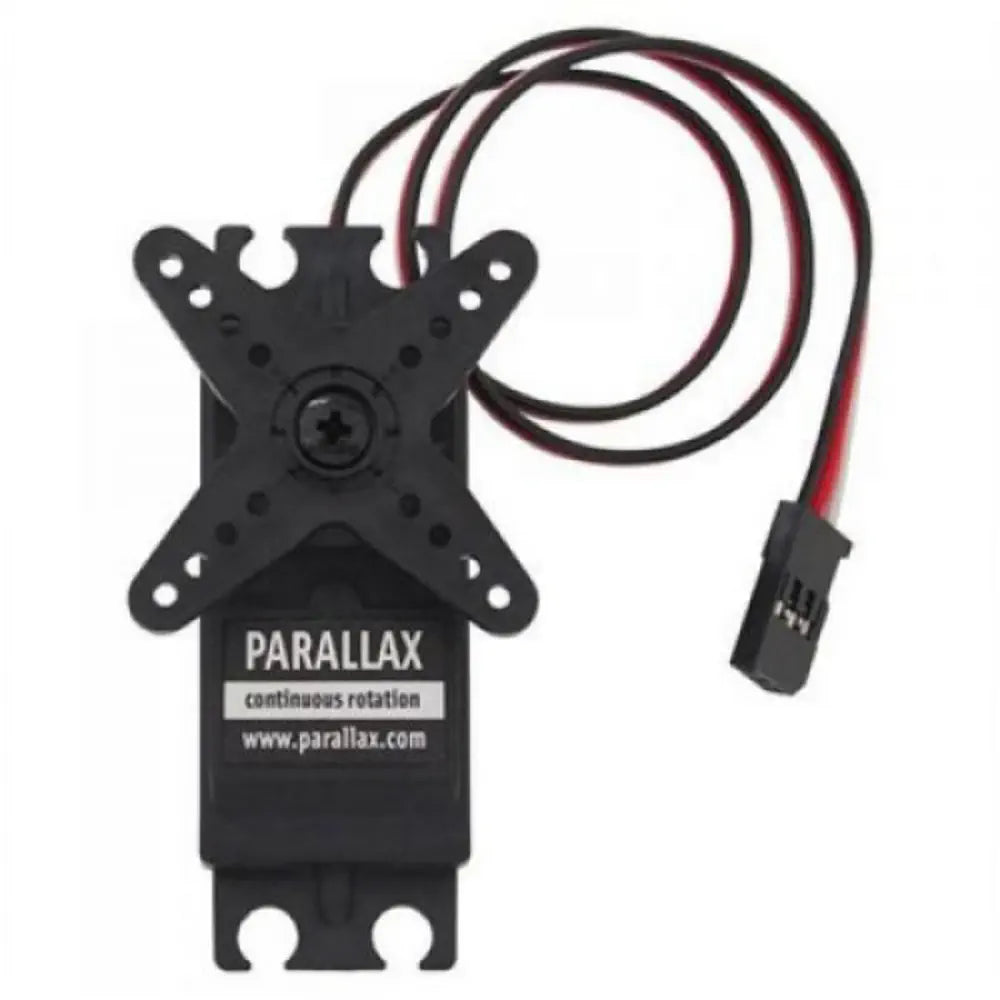

Parallax (Futaba) Continuous Rotation Servo

Description Bidirectional continuous rotation 0 to 50 RPM, with linear response to PWM for easy ramping Easy to interface with Parallax microcontroller or PWM-capable device RoHS Compliant The Parallax (Futaba) Continuous Rotation Servo is ideal for robotics and basic movement projects.  It is designed for continuous rotation and can easily interface with any Parallax microcontroller. Features: Bidirectional continuous rotation 0 to 50 RPM, with linear response to PWM for easy ramping Accepts four mounting screws Easy to interface with any Parallax microcontroller or PWM-capable device Very easy to control with PBASIC's or SX/B's PULSOUT commands Note: Servo current draw can spike while under load. Be sure that your application's power supply and voltage regulator is prepared to supply adequate current for all servos used. Do not try to power this servo directly from a BASIC Stamp module's Vdd or Vin pins. Do not connect the servo's Vss line directly to the BASIC Stamp module's Vss pin. View more Dimensions Dimensions: 2.2 x 0.8 x 1.6 in (55.8x 19 x 40.6 mm) excluding servo horn Links PDF File Continuous rotation servo v2.0 ZIP Files Propeller spin code BASIC stamp code SX/B code for the SX28 Specifications Power requirements: 4 to 6 VDC* Communication: Pulse-width modulation Dimensions: 2.2 x 0.8 x 1.6 in (55.8x 19 x 406 mm) excluding servo horn Operating temp range: +14 to +122 °F (-10 to +50 °C) Torque: 38 oz-in (2.74 kg-cm) @ 6 V
