Parallax P2 Eval Digital Video Out Add-on Board

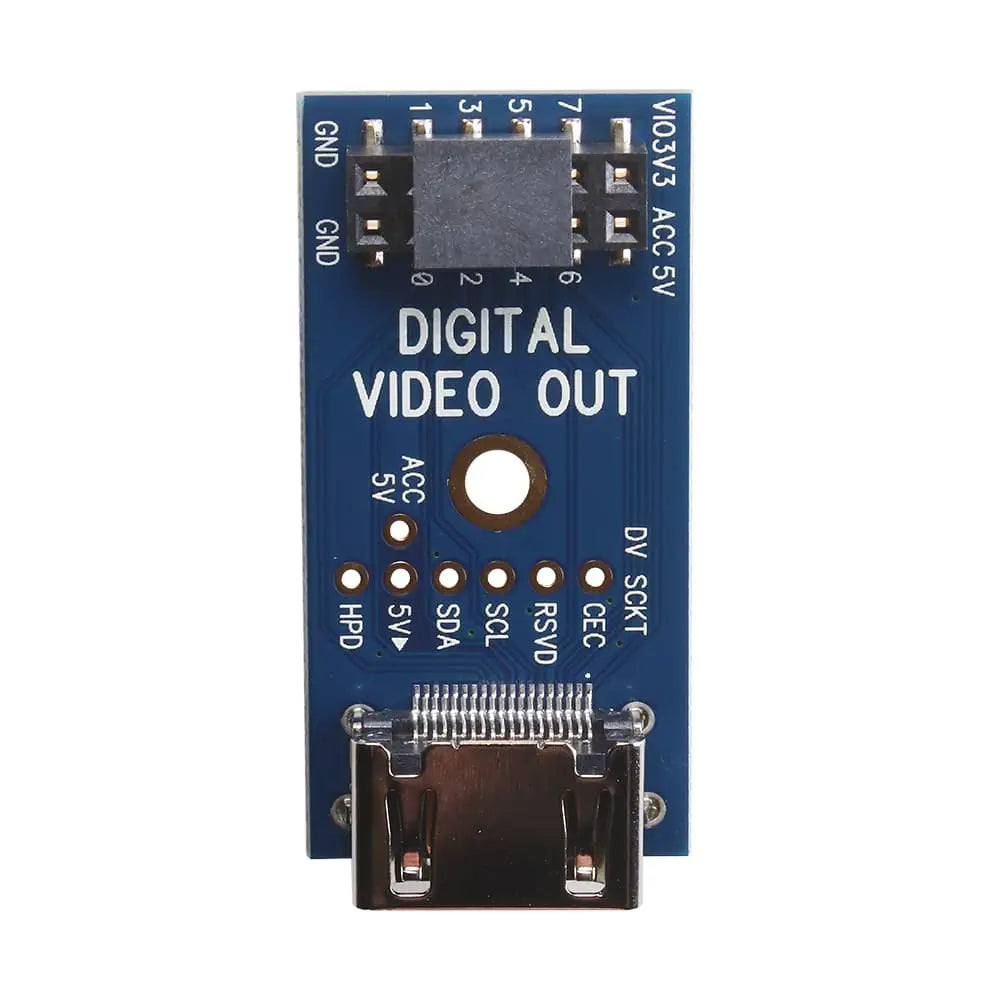

Description Parallax P2 Eval Digital Video Out Add-on Board Features HDMI connector for experimenting with video standards Compatible with P2 Edge Module Breadboard and P2 Edge Mini Breakout Board Includes labeled unused signal pins for easy identification Assembled, tested, and completed in Rocklin, California The Parallax P2 Eval Digital Video Out Add-on Board is a sophisticated device with an HDMI-type connector. This feature is particularly useful for those who wish to experiment with various video standards in their Propeller 2 multicore microcontroller projects. The board is designed with a pass-through socket that conveniently stacks on top of a 2x6 accessory header on the Propeller 2 Evaluation Board. It is also compatible with a P2 Edge Module Breadboard or a P2 Edge Mini Breakout Board, provided a P2 Edge Module is installed. The board is meticulously designed with labeled unused signal pins from the video connector on the PCB, adjacent to an unpopulated 0.1-inch pitch row of 6 pads. These pads include CEC, RSVD, SCL, SDA, 5V, and HPD. Additionally, the board features a pad labeled “ACC 5V” next to the 5V output pad. This is the 5V supply from the accessory socket. This design is particularly beneficial for video monitors that require a 5V signal connecting to the 5V pin. The two pads with 0.1-inch spacing make this connection convenient. For instance, a 0.1-inch pitch header could be soldered here, and a shunt plug could be used when 5V is required for the monitor. View more What's Included 1x Parallax P2 Eval Digital Video Out Add-on Board Dimensions PCB: 1.6 x 0.8 inch / 4.1 x 2 cm Links PDF Files Parallax P2 Eval Digital Video Out Add-on Boardt - Guide Parallax P2 Eval Digital Video Out Add-on Board - Schematics Website Parallax P2 Eval Digital Video Out Add-on Board - Propeller 2 Repository Specifications HDMI connector Direct connection to CLK+, D0+, D1+, D2+ Plated thru-holes for accessing 6 unused video connector pins Plated thru-hole for accessing the 5V supply from the accessory socket Center mounting hole Product Guide download available for I/O pin assignments RoHS CE and UKCA Declarations of Conformity are available under the Downloads tab PCBs assembled, tested, and completed in Rocklin, California
