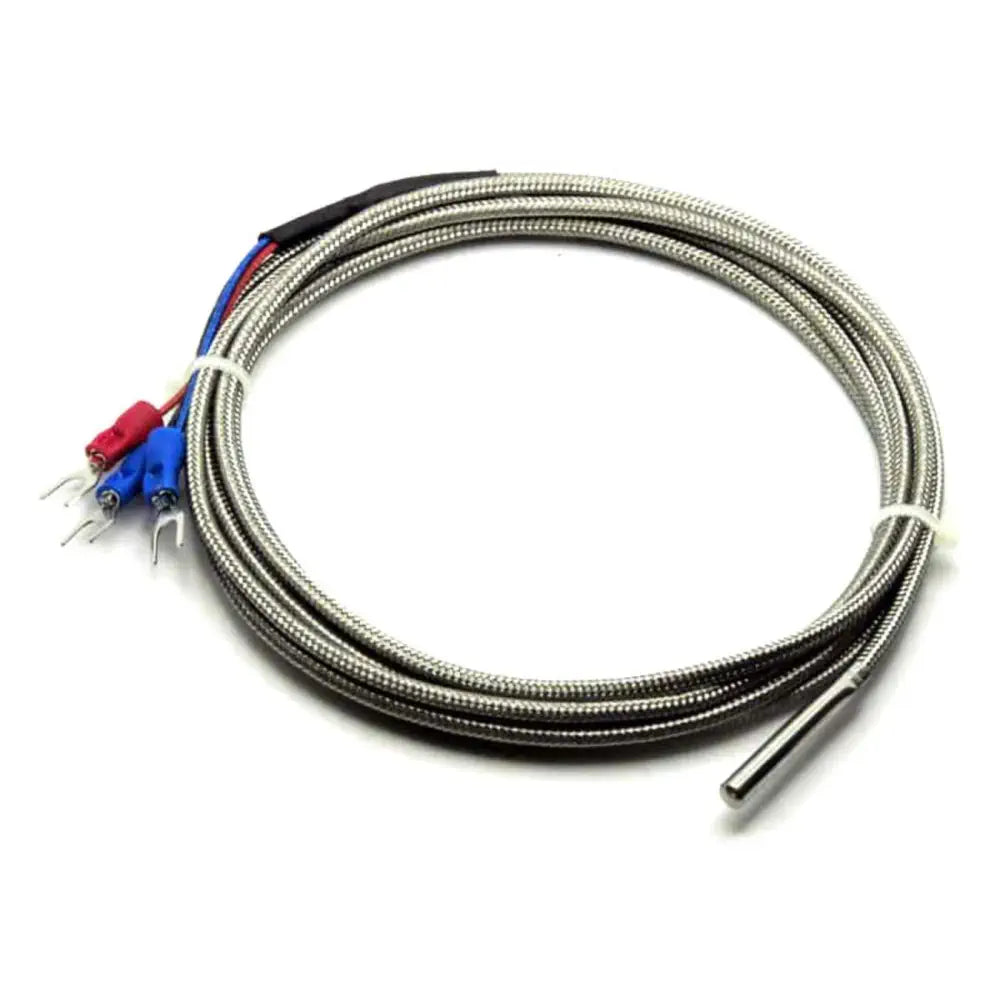

PT100 Sensor for RTD Data Acquisition for Raspberry Pi

Description PT100 Sensor for RTD Data Acquisition Designed for Raspberry Pi (Not Included) Resistance at 0 °C: 100 ohms Temperature range: -50 to 450 °C Accuracy: ±0.5 °C 3-wire terminals with prong ends The PT100 Sensor for RTD Data Acquisition for Raspberry Pi offers 3-wire terminals with prong ends. It provides resistance at 0 °C is 100 ohms with ±0.5 °C accuracy. The sensor has a wide operating range (from -50 to 450 °C) low drift and with a maximum error of 0.5 °C is suitable for precision applications. The PT100 sensor comes with three 2-meter, braided wires. Since the RTD card is compensating for the wire resistance, the wires can be extended to very long ranges without any loss of accuracy. View more What's Included 1x PT100 Sensor for RTD Data Acquisition for Raspberry Pi Dimensions Size Steel probe: Ø4 x 30 mm Wires length: 2 m Specifications Resistance at 0 °C: 100 ohms Temperature range: -50 to 450 °C Accuracy: ± 0.5 °C 3-wire terminals with prong ends
