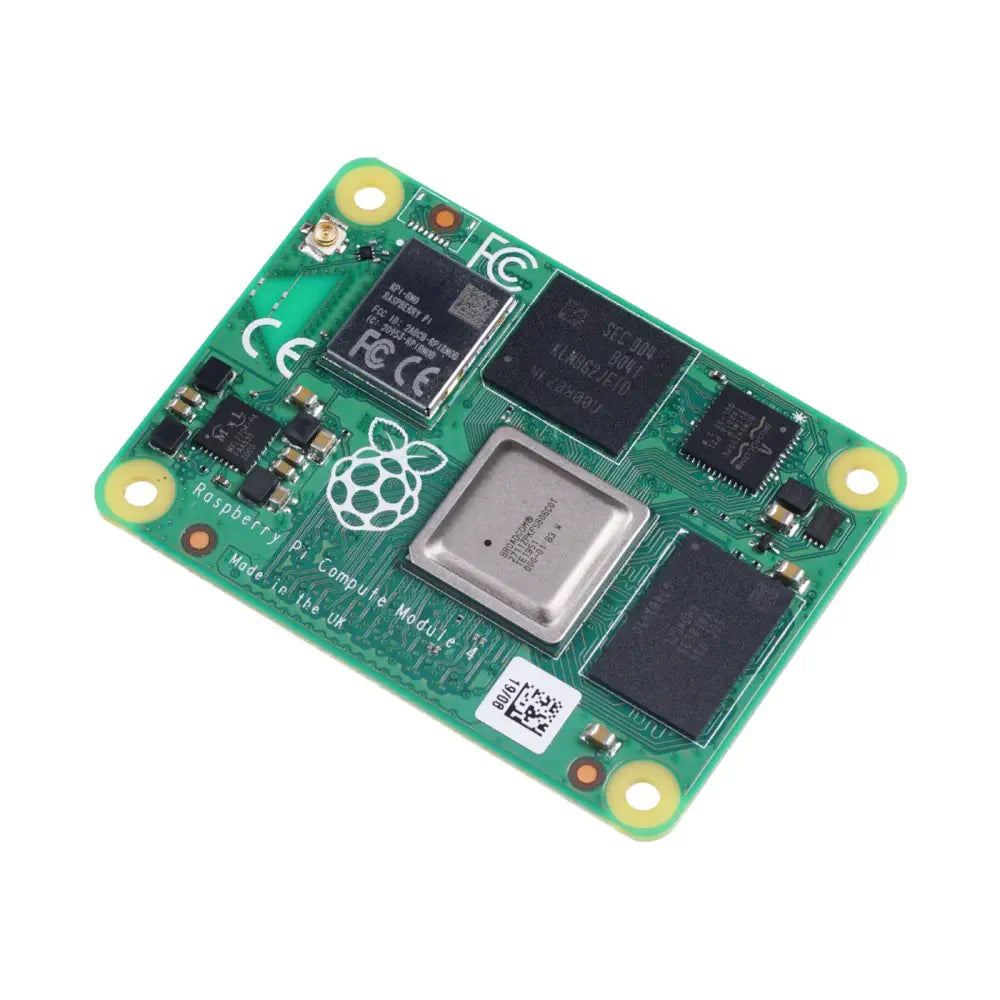

Raspberry Pi Compute Module 4 - 2GB RAM, 32GB eMMC, WiFi, Bluetooth (CM4102032)

Description Raspberry Pi Compute Module 4 - 2GB RAM, 32GB eMMC, WiFi, Bluetooth (CM4102032) High-performance 64-bit quad-core processor for enhanced computing Supports dual-display at 4K resolution and 4Kp60 hardware video decode Compact form factor ideal for integration into various products Features Gigabit Ethernet, USB 2.0, dual camera interfaces, and a PCIe Gen 2 x1 interface The Raspberry Pi Compute Module 4 - 2GB RAM, 32GB eMMC, WiFi, Bluetooth (CM4102032) is a high-performance computing module that harnesses the power of the renowned Raspberry Pi 4 Model B. This model exhibits significant performance enhancements compared to its predecessor, including faster CPU cores, improved multimedia, and expanded interface capabilities. For the first time, this model provides a variety of RAM densities and wireless connectivity options. The external dimensions of this version have been redesigned to a completely new mechanical standard, resulting in a reduced footprint on its carrier board. This leads to a more compact form factor, making it ideal for integration into various products. Unlike the Raspberry Pi 4's Micro SD card slot, the Raspberry Pi Compute Module 4 (CM4) offers optional onboard eMMC storage of 8GB, 16GB, or 32GB. This particular version of the Raspberry Pi Compute Module 4 (CM4) is equipped with a high-performance 64-bit quad-core processor, 2GB LPDDR4 RAM, and 32GB eMMC. It supports dual-display at resolutions up to 4K and hardware video decode at up to 4Kp60. It also features Gigabit Ethernet, USB 2.0, dual camera interfaces, and a PCIe Gen 2 x1 interface. The module is equipped with dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0, both of which have modular compliance certification. This certification allows the board to be incorporated into end products with significantly reduced compliance testing, thereby improving cost efficiency and time to market. The module can utilize either the onboard antenna or an external antenna kit. View more What's Included 1x Raspberry Pi Compute Module 4 - 2GB RAM, 32GB eMMC, WiFi, Bluetooth (CM4102032) Dimensions Board: 55 x  40  mm (L x W) Links PDF File Raspberry Pi Compute Module 4 - 2GB RAM, 32GB eMMC, WiFi, Bluetooth (CM4102032) - Datasheet Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications Processor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC at 1.5GHz Memory: 2GB LPDDR4 Storage: 32GB eMMC Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics Input power: 5V DC Operating temperature: 0 to +80 °C Connectivity Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options Onboard Gigabit Ethernet PHY supporting IEEE1588 1x USB 2.0 interface PCIe Gen 2 x1 interface 28 GPIO signals SD card interface for SD card or external eMMC Video Dual HDMI interface (up to 4Kp60 supported) 2-lane MIPI DSI display interface 2-lane MIPI CSI camera interface 4-lane MIPI DSI display interface 4-lane MIPI CSI camera interface
