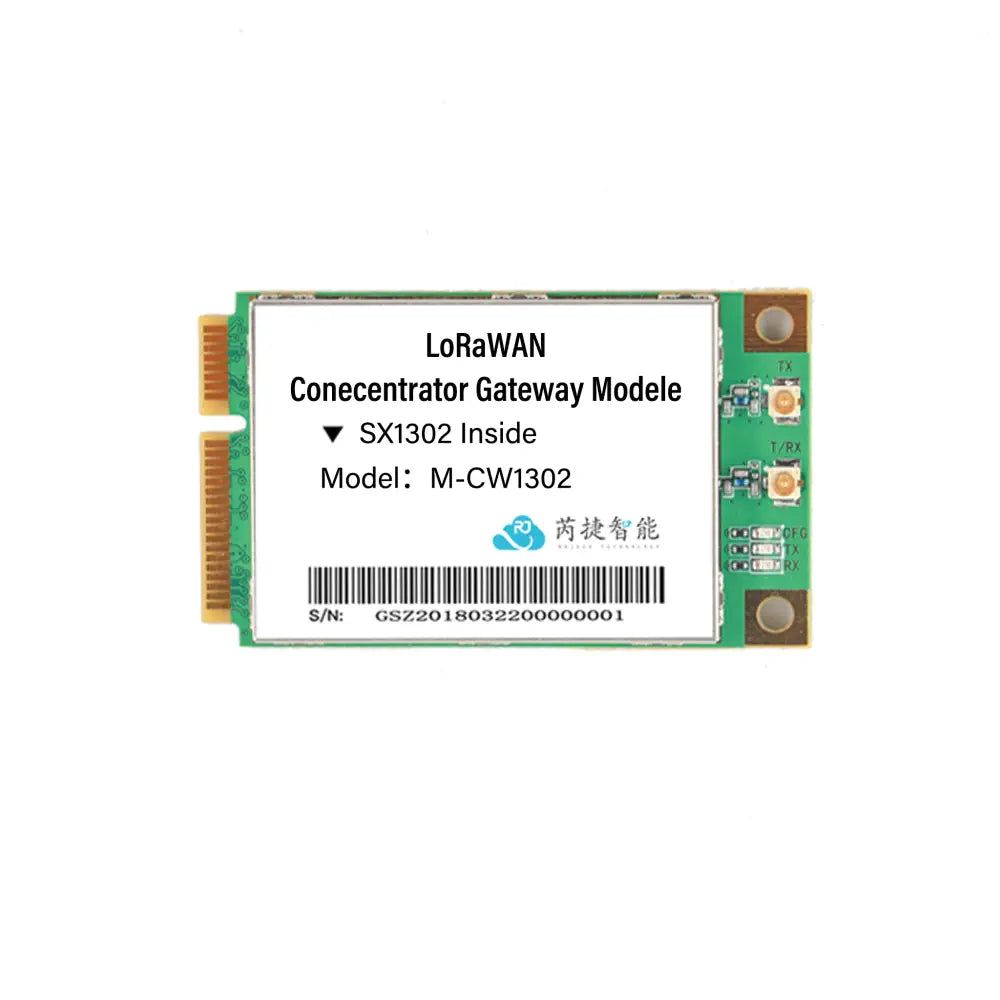

Rejeee LoRaWAN PCI-e Board SX1302 M-GW1302S

Description PCI Express Mini Card 1.2 standard interface Max TX 360mA，Max RX 60mA I-PEX Antenna, Harf-duplex Communication Standard SPI interface, Open-source Raspberry Pie-based evaluation test board is available 8 RX channels, SF5~SF12, RX sensitivity down to -141dBm, 1 TX channel, Max TX Power up to 26dBm M-GW1302S is Mini PCI-e board based on SX1302, with SPI interface, internal PA and LNA, half-duplex design, for customer to develop LoRa gateway quickly. SX1302 is the newest LoRa gateway chip that Semtech released, with SX1250 as RF front-end chip, supporting SF5-SF12, compared with SX1301, SX1302 has higher data communication speed rate and lower power consumption, simpler design and higher performance. View more What's Included PCI-e Board SX1302 M-GW1302S Dimensions 50.95mm*30mm*4.5mm Links Attached files SX1302 PCI-e Board.pdf
