ROBOTIS ENGINEER Kit 1 AI Enabled Robot

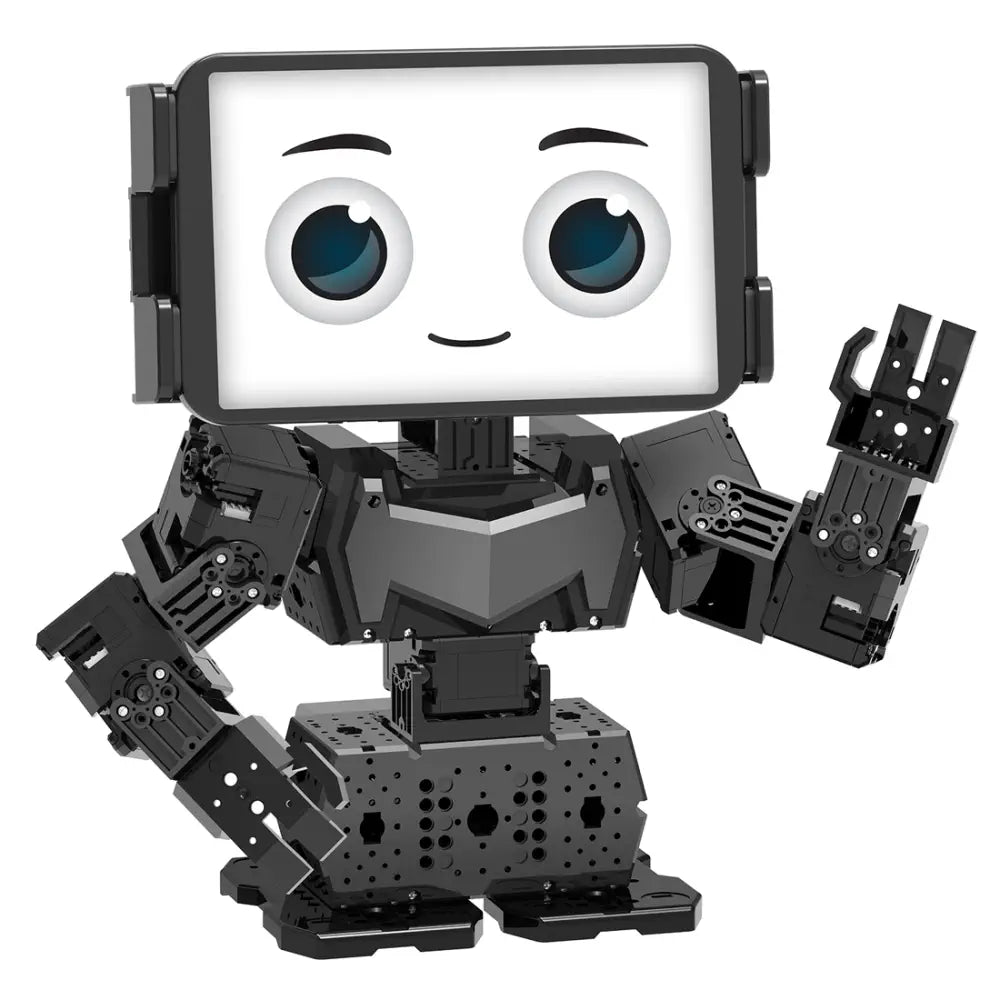

Description ROBOTIS ENGINEER Kit 1 AI Enabled Robot Offers a next-generation, smart, AI-based, multi-joined robotics kit Features a CM-550 controller for high-level performance Build up to 7 robot figures Supports 3D part designing and printing Compatible with R+ ENGINEER and R+ Task 3.0 The ROBOTIS ENGINEER Kit 1 AI Enabled Robot is a next-generation robotics kit, that utilizes a smart device to enable Al Capabilities to be used in various applications such as Education, Hobby, Entertainment, and Competition Activities. This kit provides users access to various technological functions such as Al, 3D Printing, Coding, Vision Processing, and Manipulation preparing them for technologically advanced career pathways. The ROBOTIS ENGINEER KIT 1 allows you to build the following robots: Dr.R: An AI-Based Smart Robot that can identify objects and faces, and voice recognition utilizing sensors on a smart device to interact with the user. SPI: A Biomimetic Robot optimized to replicate the motions of anthropods. Depending on the assembly method, the user can create different variations of this robot. MAX-E1: A Humanoid Robot standing at 38 cm tall, optimized to replicate human movement, with 12 joints assembled together by 12 high-performance 2XL430 DYNAMIXEL motors and parallel linked legs to allow flexible motions. Note: Smart devices are not included. View more What's Included 1x Main Controller CM-550 6x Actuator 2XL43O-W250-T 1x XL-320D 12x Idler (HN11-i101) 12x Idler Cap (HN11-i101) 1x EF25-F1 1x EF25-F2 1x EF25-F3 1x EF25-F4 1x EF25-F6 1x EF25-F6 1x EF25-F7 1x EF25-F8 6x EF25-F9 2x EF25-F10 6x EF25-F11 6x EF25-F12 36x EF25-F13 7x EF25-F14 2x EF25-F15 6x EF25-F16 1x EF25-F17 1x EF25-F26 1x EF25-F28 1x EF25-F27 (LIPO Battery 11.1 1300 mAH LB-020) 1x EF25-F29 4x EF25-F30 2x SPD-3b5k 1x LIPO Battery Charger LBC-010 2x Robot Cable -X3P 240 mm 6x Robot Cable -X3P 180 mm 72x PHS M2x04 24x FHS M2.5x06 4x PHS M2x05-TAP 12x FHS M3x05 60x PHS M2x06 2x PHS M2x08 12x PHS M2x10 12x PHS M2x30 1 xPHS M3x30 84x NUT M2 1x NUT M3 16x SRV-1H/1Pk 6x L-RIVETk 1x Cable-Bat 1x Grease 1x Small Fuse 1x SMPS 1x AC-Cord 1x USB Micro B Cable 1x Tool (TL) 1x Screw Driver SD-01 1x Quick Start Guide Dimensions Size Dr.R: 229 x 102 x 232 mm (L x W x H) MAX-E1: 244 x 102 x 381 mm (L x W x H) SPI: 147 mm H, 435 mm D Links Website ROBOTIS ENGINEER Kit 1 AI Enabled Robot - User Manual Specifications MCU: ARM Cortex-M4 Operating Voltage: Battery: 6.5 ~ 15 V | SMPS: 6.5 ~ 15 V | Micro USB: 4.75 ~ 5.25 V Current Consumption: Standby : 50 mA | Port 1 ~ 2 I/O Max : 0.5 A | Port 3 ~ 5 I/O Max : 0.02 A Operating Temperature: -5 ~ 70 °C Communication Module: BLE Slave Module Internal I/O Devices: Buttons: 2 (MODE, START) | Mic (Sound Detection): 1 | Buzzer: 1 | Voltage Sensor: 1 | Gyro Accelerometer: 1 | Temperature Sensor: 1 | RGB LED: 3 External I/O Devices: ROBOTIS 5 Pin Port: 5 (SM-10 / IR Array / TMS-10: Use Port 1 or 2) | X series DYNAMIXEL Ports: 6 Weight: 58.8 g
