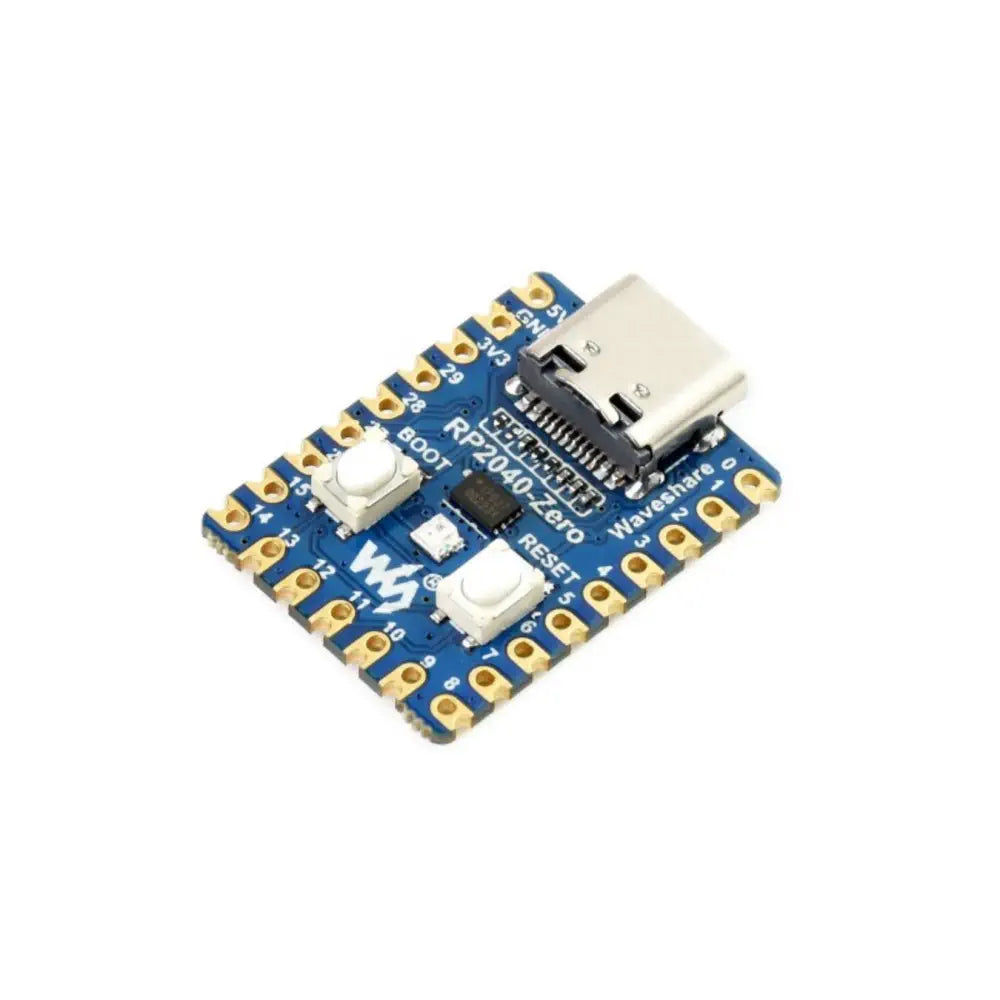

RP2040-Zero, Pico-like MCU Board Based on RP2040, Mini Version (w/o Header)

Description RP2040-Zero, Pico-like MCU Board Based on RP2040, Mini Version (w/o Header) Offers Dual-core Arm Cortex M0+ processor Low-power sleep and dormant modes Onboard 2MB Flash memory Drag-and-drop programming using mass storage over USB Castellated module allows soldering directly to carrier boards The RP2040-Zero, Pico-like MCU Board Based on RP2040, Mini Version (w/o Header) features a low-cost and high-performance Pico-Like MCU board based on Raspberry Pi microcontroller. The castellated module allows soldering directly to carrier boards. View more What's Included 1x RP2040-Zero, Pico-like MCU Board Based on RP2040, Mini Version (w/o Header) Dimensions Size 18 x 23.50 mm (L x W) Links PDF File RP2040-Zero, Pico-like MCU Board Based on RP2040, Mini Version (w/o Header) - Schematics Specifications Processor: Raspberry Pi official RP2040 microcontroller Regulator: ME6217 (LDO, 800 mA) Flash: 2 MB Battery Holder: NA Integrated LCD: NA SRAM: 264 KB Connector: USB-C USB 1.1 with device and host support 29x multi-function GPIO pins (20x via edge pinout, others via solder points) 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8x Programmable I/O (PIO) state machines for custom peripheral support Weight: 0.002 kg
