Seeed Studio XIAO SAMD21 (Pre-Soldered)
www.robotshop.com

Seeed Studio XIAO SAMD21 (Pre-Soldered)

$10.32
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

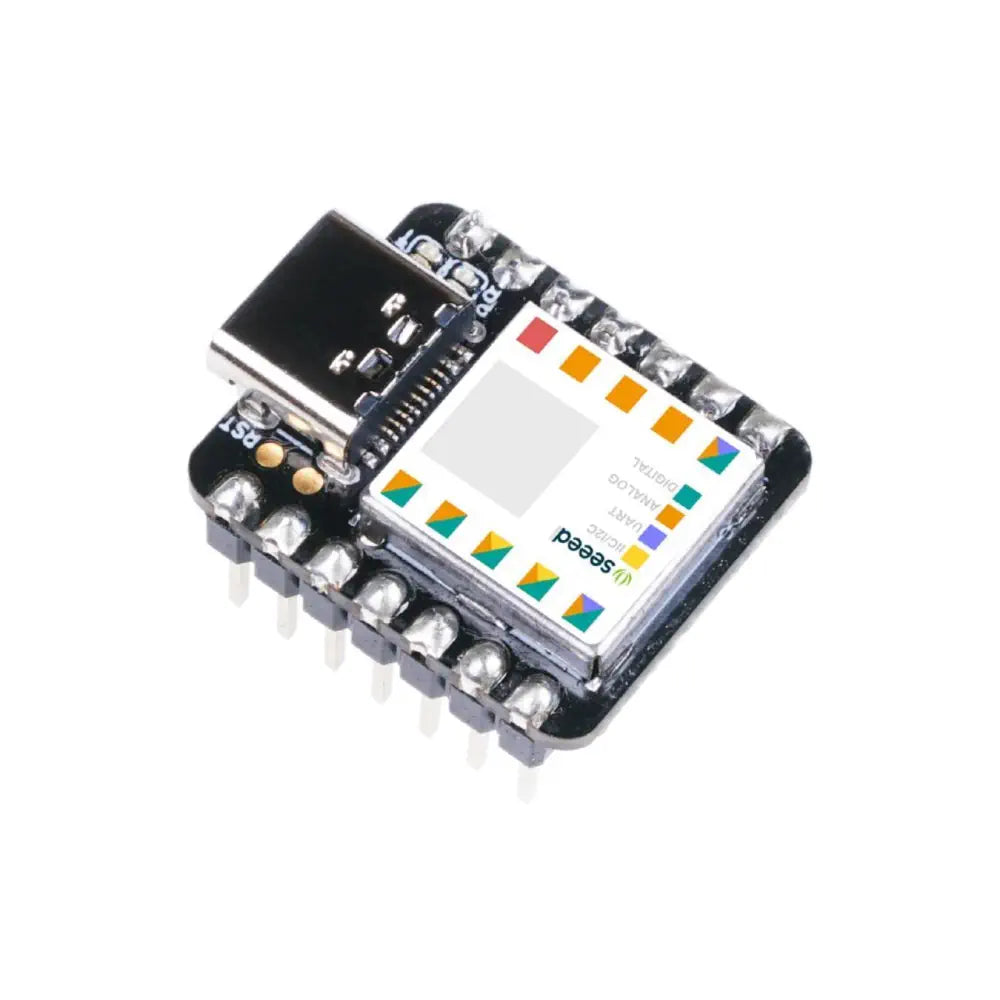

Description Seeed Studio XIAO SAMD21 (Pre-Soldered) Small size as small as a thumb Provides multiple development interfaces Compatible with Arduino IDE Breadboard-friendly Interface: 1 I2C interface,1 UART interface, 1 SPI interface The Seeed Studio XIAO SAMD21 (Pre-Soldered) is the smallest Arduino-compatible board in Seeeduino Family. It is an Arduino microcontroller that is embedded with the SAMD21 microchip. The interfaces of Seeed Studio XIAO (Pre-Soldered) are rich enough in such a tiny Dev. Board as well. View more What's Included 1x Seeed Studio XIAO SAMD21 (Pre-Soldered) 4x Paster Dimensions Size 20 x 17.5 x 6 mm (L x W x H) Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');$("#iframe-video-2").html('');$("#iframe-video-3").html('');$("#iframe-video-4").html('');$("#iframe-video-5").html('');$("#iframe-video-6").html('');})}); Specifications CPU: ARM Cortex-M0+ CPU (SAMD21G18) running at up to 48 MHz Storage: 256KB Flash, 32KB SRAM I/O PINs: 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 DAC output Pin Interface: 1 I2C interface,1 UART interface, 1 SPI interface Power supply and downloading interface: USB Type-C interface LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading Reset button: two reset button short connect to reset Power Pads: For the battery power supply Software compatibility: Compatible with Arduino IDE Projection cover for protecting the circuit
