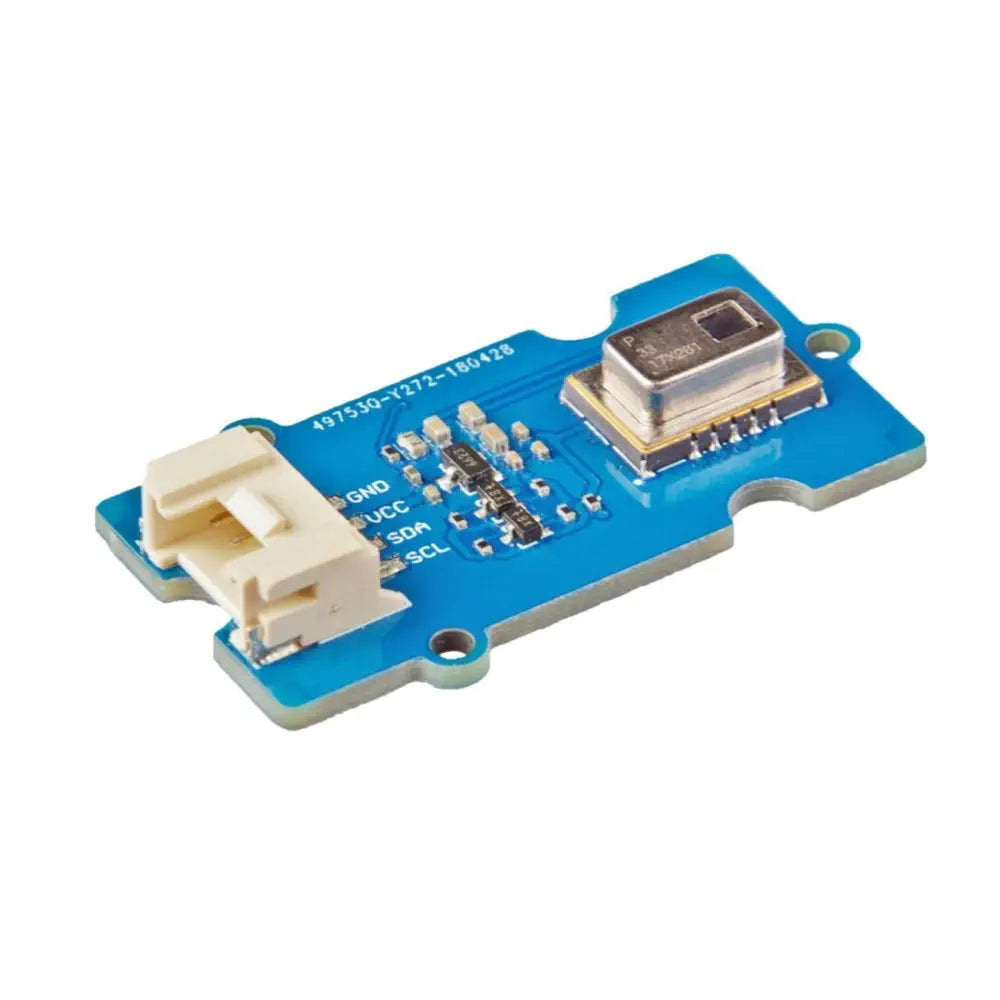

SeeedStudio Grove Infrared Temperature Sensor Array (AMG8833)

Description SeeedStudio Grove Infrared Temperature Sensor Array (AMG8833) Detects temperature in a two-dimensional area of 8 x 8 (64 pixels) I2C output (capability of temperature value output) Provides a maximum of 7 meters detection distance The SeeedStudio Grove Infrared Temperature Sensor Array (AMG8833) is a high precision infrared array sensor which based on advanced MEMS technology. It can support temperature detection of a two-dimensional area: 8 x 8 (64 pixels) and maximum 7 meters detection distance. View more What's Included 1 x SeeedStudio Grove - Infrared Temperature Sensor Array (AMG8833) 1 x SeeedStudio Grove cable Dimensions Size 40mm x 20mm x 6mm Links PDF File SeeedStudio Grove Infrared Temperature Sensor Array (AMG8833) Pin Out Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications Weight: G.W 10g, N.W 4g Operating Voltage: 3.3V / 5V Temperature range of measuring object: 0 °C to 80 °C / +32 °F to +176 °F Operating temperature range: 0 °C to 80 °C / +32 °F to +176 °F Storage temperature range: −20 °C to 80 °C / -4 °F to +176 °F Temperature accuracy: Typical ±2.5 °C / ±4.5 °F Viewing angle: Typical 60 ° Optical axis gap: Within Typical ±5.6 ° Number of pixel: 64 (Vertical 8 x Horizontal 8 Matrix) External interface: I2C I2C Address: 0x68 (default) / 0x69 (optional)
