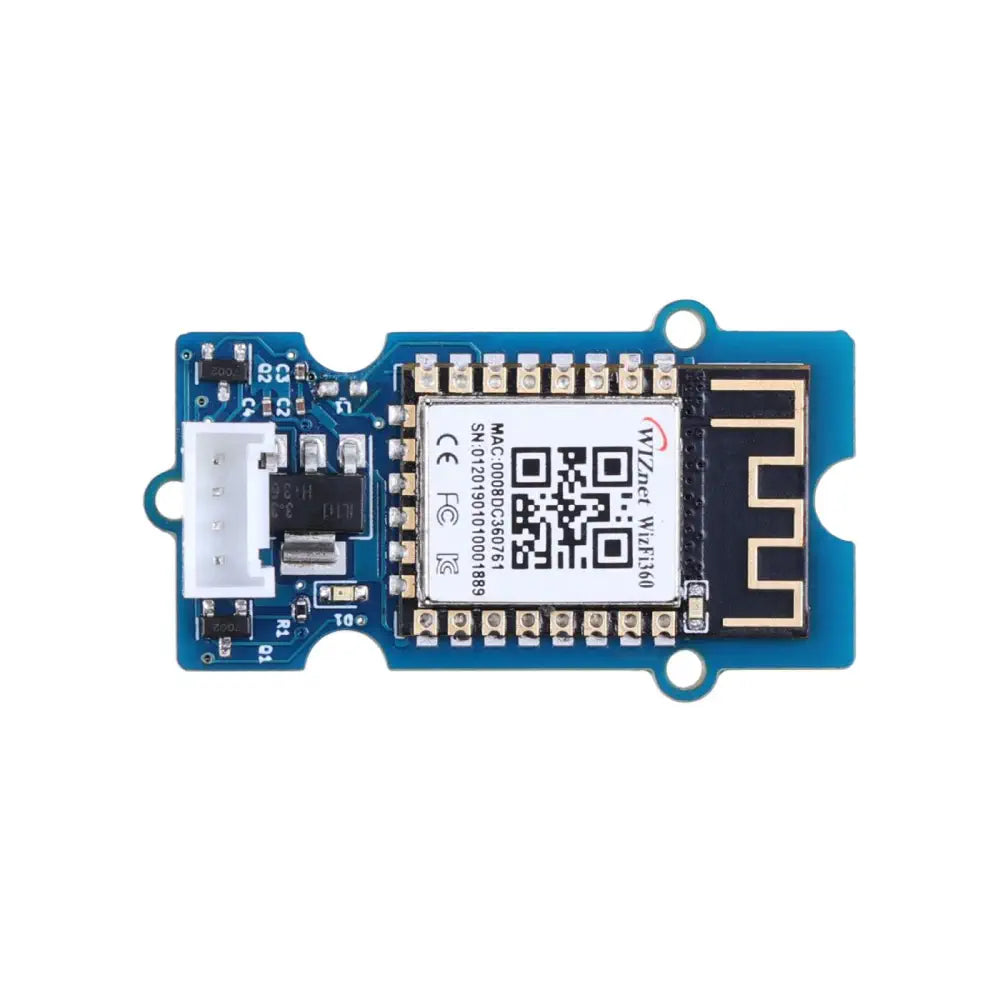

Seeedstudio Grove UART Wizfi360 WiFi Module

Description Seeedstudio Grove UART Wizfi360 Module for Wireless Communication Supports TCP/IP and microcontroller with multiple modes Features automatic 20 MHz / 40 MHz bandwidth and WPA_PSK / WPA2_PSK encryption Offers real-time network status monitoring for a user-friendly experience Ideal for home automation, sensor networks, and wearable electronics The Seeedstudio Grove UART Wizfi360 WiFi Module is a highly efficient WiFi module developed based on Wiznet's wizfi360 technology. This module is designed to support both TCP/IP and microcontroller, offering compatibility with multiple modes. It features an automatic 20 MHz / 40 MHz bandwidth, a UART to WIFI two-way transparent transmission function, and WPA_PSK / WPA2_PSK encryption. This module allows for real-time network status monitoring, providing a user-friendly experience. The serial port baud rate of this device varies from 600 bps to 2 Mbps, offering 16 common values. The Wizfi360 Grove UART Module is a microcontroller that facilitates interaction with WiFi networks through a few lines of code. Each module comes pre-installed with AT command set firmware, enabling control of the device through simple text commands. It offers connectivity via a 2.4 GHz wireless connection, adheres to IEEE802.11 b/g/n standards, and supports SoftAP, StaTIon, and SoftAP+StaTIon modes. This product, designed by Amal Mathew and licensed to Seeed for sale, finds its applications in a wide range of areas. These include home automation, sensor networks, mesh networking, wearable electronics, baby monitors, network cameras, industrial wireless control, WiFi beacons, smart power plugs, and location-aware applications. The module operates at a frequency range of 2.4 GHz to 2.5 GHz, with a data rate of 11 Mb/s, 54 Mb/s. It requires a supply voltage range of 3 to 3.6 V and can operate at temperatures between - 40 and + 85 °C. View more What's Included 1x Seeedstudio Grove UART Wizfi360 WiFi Module Links Website Seeedstudio Grove UART Wizfi360 WiFi Module - GitHub Specifications Supporting agreement: 802.11 b/g/n Frequency: 2.4 to 2.5 GHz Data rate: 11 Mb/s, 54 Mb/s Interface Type: Serial Output: 19 dBm Supply voltage min: 3 V Supply voltage max: 3.6 V Transmit Supply Current: 210 mA, 230 mA Receive supply current: 110 mA Lowest operating temperature: -40 °C Highest operating temperature: +85 °C Antenna Connector Type: PCB Working power supply voltage: 3 to 3.6 V Product type: WiFi Modules Protocol - WiFi - 802.11: WiFi
