SeeedStudio Water Flow Sensor (1/4")
www.robotshop.com

SeeedStudio Water Flow Sensor (1/4")

$12.64
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

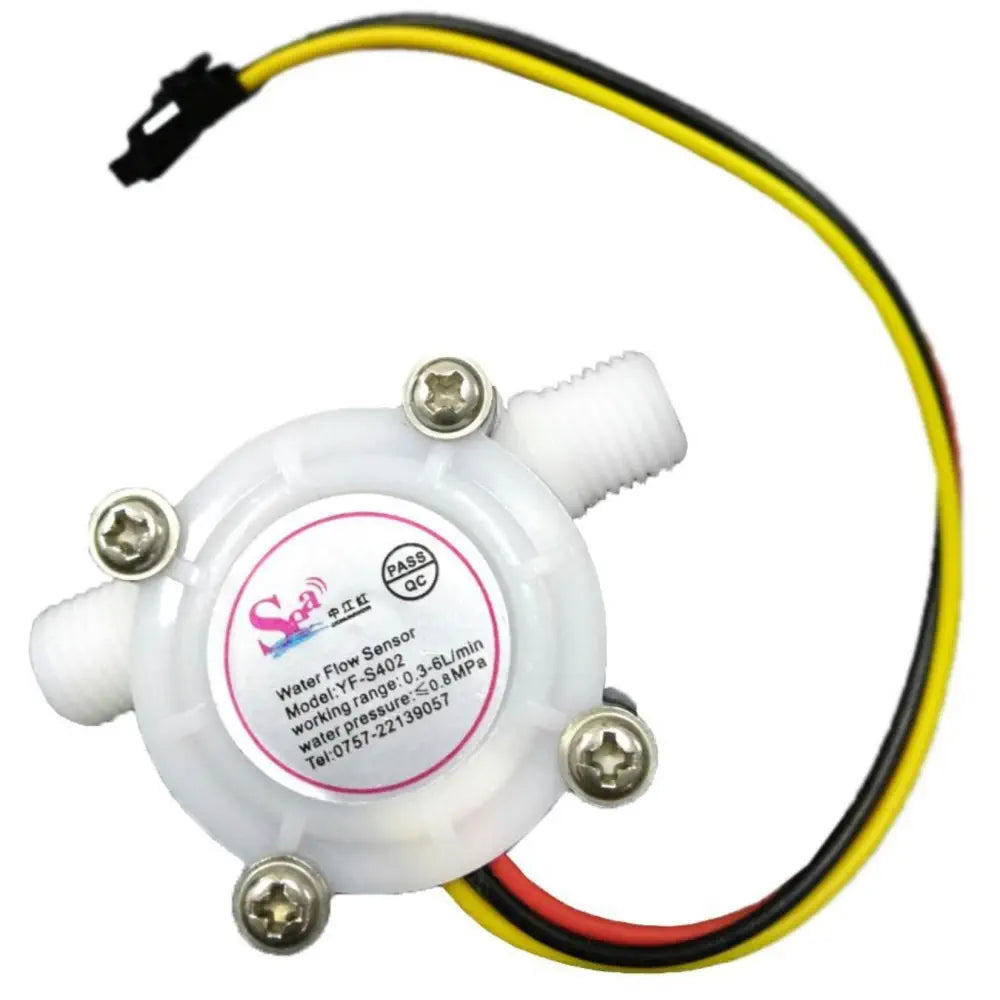

Description SeeedStudio Water Flow Sensor (1/4") Consists of a plastic valve body Is compact and easy to install Provides high sealing performance Features a high quality hall effect sensor Is RoHS compliant The SeeedStudio Water Flow Sensor (1/4") consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine. View more What's Included 1 x SeeedStudio Water Flow Sensor (1/4") Dimensions Size Links PDF File SeeedStudio Water Flow Sensor (1/4") - Datasheet Specifications Minimum working voltage: DC 4.5 V Maximum working current: 15mA (DC 5 V) Working voltage: DC 5 V ~24 V Flow rate range: 0.3~6 l/min Load capacity: ≤10 mA (DC 5V) Operating temperature: ≤80 ℃ Liquid temperature: ≤120 ℃ Operating humidity: 35%～90 %RH Water pressure: ≤2.0MPa Storage temperature: -25～+ 80 ℃ Storage humidity: 25%～95%RH
