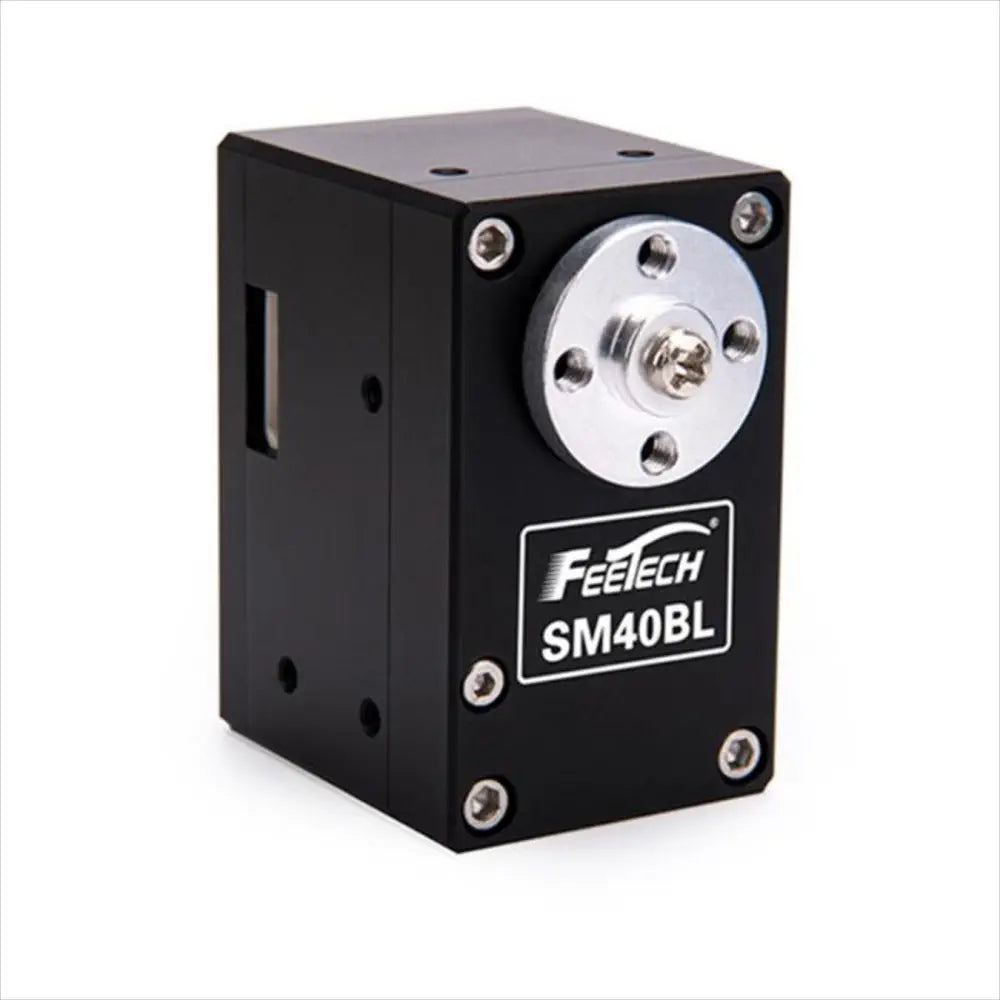

Serial Bus RS485 Servo 12V 40kg.cm

Description Serial Bus RS485 Servo 12V 40kg.cm Gear type: Steel Gear Bearing: 2 Ball bearings Horn Type: Aluminium Case: Aluminium Motor: Brushless motor The Serial Bus RS485 Servo 12V 40kg.cm features two ball bearing and the operating voltage range is 12 V with a peak stall torque is 40kg.cm at 12 V. View more What's Included 1 x Serial Bus RS485 Servo 12V 40kg.cm Dimensions Size 46.5 x 28.5 x 34 mm (L x W x H) Connector Wire: 150 mm ±5 mm Specifications Storage Temperature Range: -30 ~80 °C Operating Temperature Range: -20 ~80 °C Gear type: Steel Gear Gear Ratio: 353:1 Limit angle: No Limiter Bearing: 2 Ball bearings Horn gear spline: 25T (0D5.96 mm) Horn Type: Aluminium Case: Aluminium Motor: Brushless motor Operating Voltage Range: 12 V Idle current (at stopped): 40 mA No load speed: 0. 153sec/ 60degree 65RPM Runnig current (at no load): 200 mA Peak stall torque: 40 kg.cm @ 12 V Rated current: 800 mm≤ @ 12 V Rated torque: 12 kg.cm≤@ 12 V Stall current: 2500 mA @ 12 V Protocol Type: Half-duplex Asynchronous Serial Communication Communication Speed: 38400 bps ~ 1 Mbps Running degree: 360°(when 0～4095) Weight: 100 g
