Zio Ultrasonic Distance Sensor

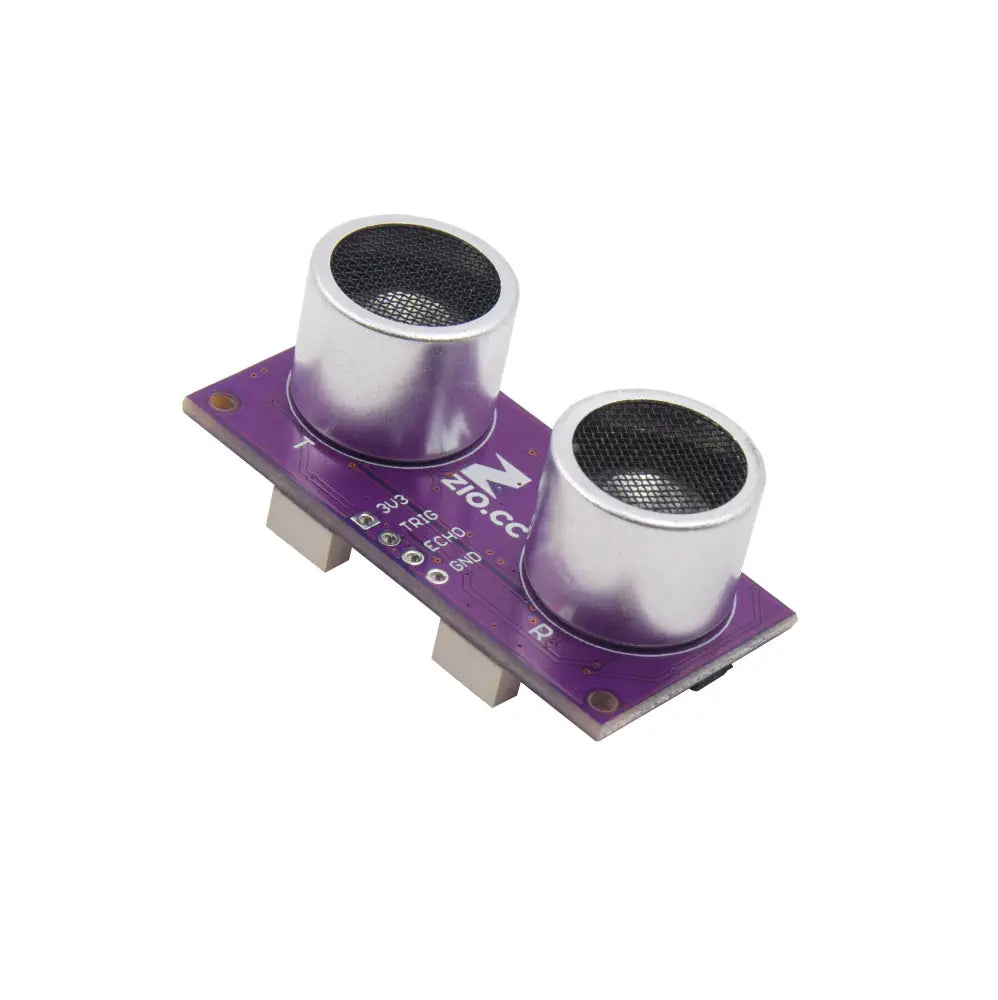

Description The Zio Ultrasonic Distance Sensor is great, both precise and fast It provides a wider detecting angle than other models It can also be used like any other HC SR04 board The Zio Ultrasonic Distance Sensor may look familiar it is indeed the HC SR04! We have incorporated this sensor into our Qwiic family, as it provides a wider detecting angle and greater distance than the TOF sensor. You dont need to worry about the inner details or VCC, Trig, Echo and GND pins; simply treat it as another I2C device and set it up with ease. If you are curious, however, you can check out the STM8 code used to transfer the data over I2C. Furthermore, this board can be used both with a Qwiic connector and with a pin header, which is provided. For more information on how the Ultrasonic sensor works, you can check out this page! Note: Avoid touching the pins and pads on the backside, as the sensor measurement is based on analog single; doing so may make the result unstable. View more Dimensions 21.5 x 45.5 mm Specifications Operating Voltage: 3.3V Detecting Angle: 15 degrees Sensor Range: 2cm to 400cm Accuracy: 3mm MCU on Board: STM8L051 I2C Address: 0x00 Dimension: 21.5 x 45.5mm Weight: 9.2g
