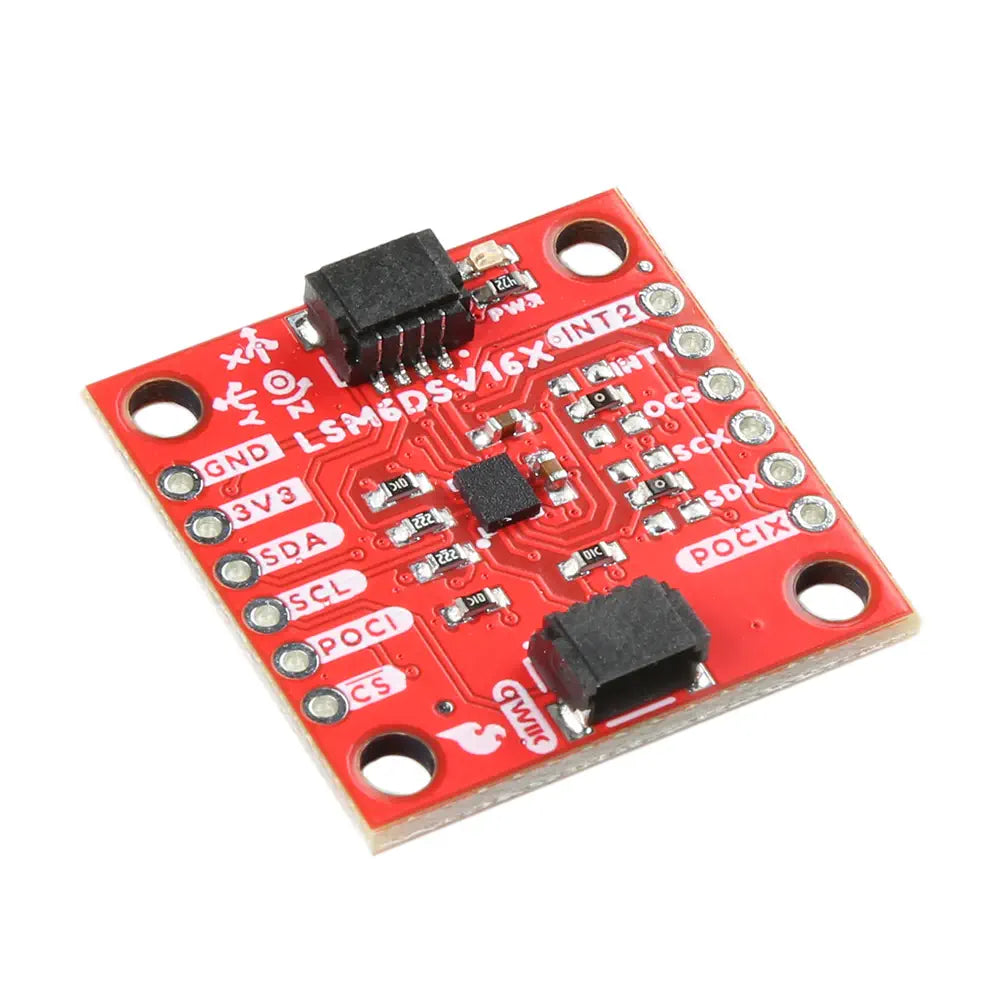

SparkFun 6DoF IMU Breakout - LSM6DSV16X (Qwiic)

Description SparkFun 6dof IMU Breakout - LSM6DSV16X (Qwiic) Features high-performance, low-power 6-axis IMU Equipped with a 3-axis digital accelerometer and gyroscope Utilizes triple core for UI, EIS, and OIS data processing Includes advanced features for motion tracking and contextual awareness Embedded with Qvar for user interface functions The SparkFun 6dof IMU Breakout - LSM6DSV16X (Qwiic) is a high-performance, low-power 6-axis Inertial Measurement Unit (IMU). It is equipped with a 3-axis digital accelerometer and a 3-axis digital gyroscope. The device utilizes a triple core to process acceleration and angular rate data on three separate channels, namely user interface, Optical Image Stabilization (OIS), and Electronic Image Stabilization (EIS). Each channel has its own dedicated configuration, processing, and filtering. The device is designed in a standard 1 x 1 inch Qwiic form factor, allowing for seamless integration into Qwiic-based projects. The triple core facilitates processes in edge computing, utilizing embedded advanced dedicated features. These features include a finite state machine (FSM) for configurable motion tracking and a machine learning core (MLC) for contextual awareness. The device is capable of exporting AI features for Internet of Things (IoT) applications. Additionally, the device is equipped with Qvar, a feature that detects variations in electric charge. This feature is used for user interface functions such as tap, double tap, triple tap, long press, or left/right/left swipe. The SparkFun Qwiic Connect System, of which this device is a part, is an ecosystem of I2C sensors, actuators, shields, and cables designed to make prototyping more efficient and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector, which reduces the amount of required PCB space. The polarized connections ensure correct hook-up. View more What's Included 1x SparkFun 6dof IMU Breakout - LSM6DSV16X (Qwiic) Links Websites SparkFun 6DoF IMU Breakout - LSM6DSV16X (Qwiic) - GitHub Hardware Repo SparkFun 6DoF IMU Breakout - LSM6DSV16X (Qwiic) - GitHub Arduino Library Repo Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications I2C addresses: 0x6B (Default), 0x6A Triple core for UI, EIS, and OIS data processing 'Always-on' experience with low power consumption for both accelerometer and gyroscope Smart FIFO up to 4.5KB Android compliant ±2/±4/±8/±16 g full scale ±125/±250/±500/±1000/±2000/±4000 dps full scale SPI / I²C & MIPI I3C® v1.1 serial interface with main processor data synchronization Auxiliary SPI for OIS data output for gyroscope and accelerometer Advanced pedometer, step detector, and step counter Significant motion detection, tilt detection Standard interrupts: free-fall, wake-up, 6D/4D orientation, click and double click Programmable finite state machine for accelerometer, gyroscope, and external sensor data processing with high rate @ 960 Hz Machine learning core with exportable features and filters for AI applications Embedded Qvar (electrostatic sensor) for user interface functions (tap, double tap, triple tap, long press, L/R/L swipe) Embedded analog hub for ADC and processing analog input data Embedded sensor fusion low-power algorithm Embedded temperature sensor Analog supply voltage: 1.71V to 3.6V Independent IO supply (extended range: 1.08V to 3.6V) Power consumption: 0.65 mA in combo high-performance mode 2x Qwiic Connectors
