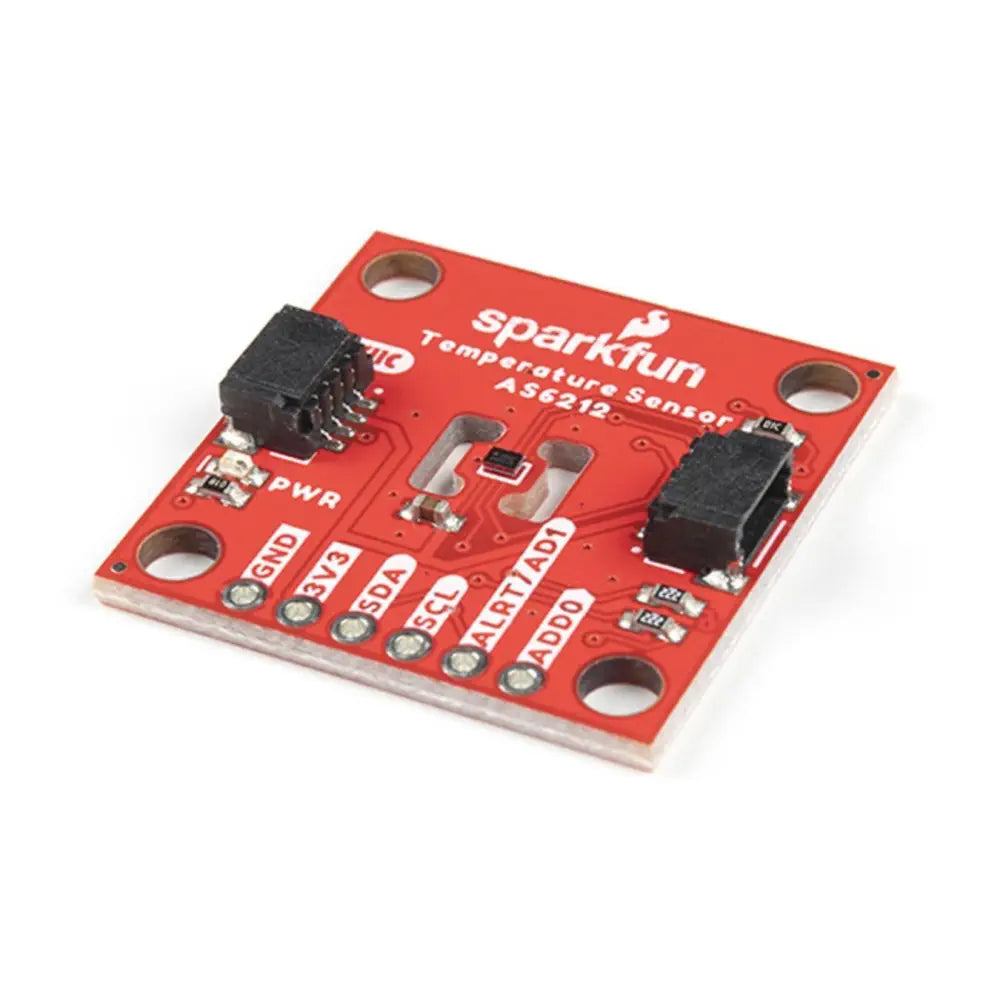

SparkFun Digital Temperature Sensor Breakout - AS6212 (Qwiic)

Description SparkFun Digital Temperature Sensor Breakout - AS6212 (Qwiic) Provides a combination of high-temperature accuracy Consumes an average of 6µA in normal operation Low power consumption Communication interface: I2C Operating Voltage Range: 1.7 - 3.6 V The SparkFun Digital Temperature Sensor Breakout - AS6212 (Qwiic) provides a combination of high-temperature accuracy with excellent low power consumption using the AS6212 digital temperature sensor from AMS AG. The sensor measures temperature data up to ±0.2°C accuracy over a wide range (-40 to +125 °C;) and consumes an average of 6 µA in normal operation (0.1 µA in standby). The AS6212 communicates via I2C and has eight available I2C addresses selected by a pair of solder jumpers on the board. The breakout routes the I2C interface to a pair of Qwiic connectors to work with the plug-and-play Qwiic Ecosystem but also routes the bus and other pins to a standard 0.1 inch-spaced PTH header for users who prefer a soldered connection. View more What's Included 1x SparkFun Digital Temperature Sensor Breakout - AS6212 (Qwiic) Dimensions Size Board: 1.0 x 1.0 inch (L x W) Links PDF Files SparkFun Digital Temperature Sensor Breakout - AS6212 (Qwiic) - Datasheet SparkFun Digital Temperature Sensor Breakout - AS6212 (Qwiic) - Schematics Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications Communicates via I2C (Qwiic enabled) Eight selectable I2C addresses (0x48 default) Operating Temperature Range: -10 to 125 °C High-Temperature Accuracy: ±0.2 °C from -10 to 65 °C | ±0.3 °C from -40 to -10 °C and 65 to 85 °C | ±0.5 °C from 85 to 125 °C Operating Voltage Range: 1.7 - 3.6 V Low Power Consumption: 6 µA typical | 0.1 µA standby
